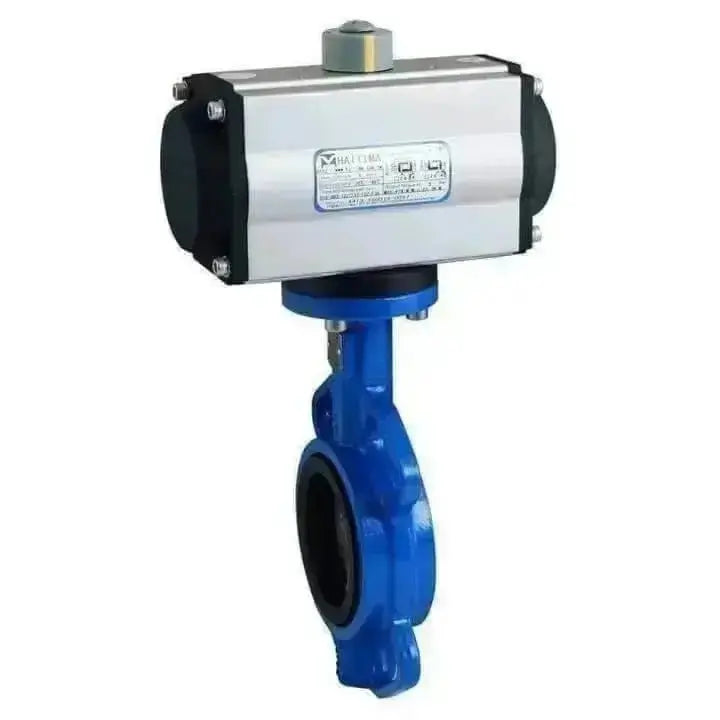

Betätigte Absperrklappe, Gehäuse aus Gusseisen mit Wabenmuster, Edelstahlscheibe, EPDM-Auskleidung, einfachwirkend

SKU: AKHSA2014WA08
Größe
Normaler Preis £197.12 GBP
Normaler Preis £272.00 GBP Ausverkaufspreis £197.12 GBP

Lieferzeit

General Delivery Time: 2 Werktage
Die Lieferzeiten sind Richtwerte und unterliegen der Lagerverfügbarkeit

Beschreibung

Absperrklappe in Wabenmuster mit Gusseisengehäuse, CF8M-Edelstahlscheibe und EDPM-Auskleidung. WRAS-zugelassen. Geeignet für die Montage zwischen PN10/16, ANSI150 und BS10, Tabelle D und E. Der maximale Arbeitsdruck beträgt 16 bar. Die Arbeitstemperatur beträgt -20°C bis +120°C

Diese Ventile sind mit einem einfachwirkenden Haitima-Antrieb (Luft zum Öffnen, Feder zum Schließen, ausfallsicher geschlossen als Standard, bitte fragen Sie nach dem Ausfall öffnen) mit Aluminiumgehäuse, 1/4-Zoll-BSP-Luftanschlüssen und NAMUR-Schnittstelle für Pilotmagnetventile, VDI, ausgestattet /VDE-Normen. Zur Montage von Zubehör. Arbeitstemperatur des Stellantriebs -20 °C bis +90 °C. Die Stellantriebe sind auf der Grundlage von 6 bar Steuerluft und 20 °C warmem Wasser dimensioniert, das durch das Ventil fließt.

Diese Baugruppen sind für den Einsatz mit Trinkwasser und Meerwasser geeignet (bei anderen Medien bitte Kompatibilität prüfen).

These are an equivalent to:

Verwandte Produkte

Bulk order

Variante Anzahl Preis Summe
1,1/2" (DN40) AKHSA2014WA08
Normaler Preis £197.12 GBP
Normaler Preis £272.00 GBP Ausverkaufspreis £197.12 GBP
£0.00
Normaler Preis £197.12 GBP
Normaler Preis £272.00 GBP Ausverkaufspreis £197.12 GBP
£0.00
2" (DN50) AKHSA2014WA09
Normaler Preis £197.12 GBP
Normaler Preis £272.00 GBP Ausverkaufspreis £197.12 GBP
£0.00
Normaler Preis £197.12 GBP
Normaler Preis £272.00 GBP Ausverkaufspreis £197.12 GBP
£0.00
2,1/2" (DN65) AKHSA2014WA10
Normaler Preis £237.54 GBP
Normaler Preis £327.80 GBP Ausverkaufspreis £237.54 GBP
£0.00
Normaler Preis £237.54 GBP
Normaler Preis £327.80 GBP Ausverkaufspreis £237.54 GBP
£0.00
3" (DN80) AKHSA2014WA11
Normaler Preis £245.42 GBP
Normaler Preis £338.64 GBP Ausverkaufspreis £245.42 GBP
£0.00
Normaler Preis £245.42 GBP
Normaler Preis £338.64 GBP Ausverkaufspreis £245.42 GBP
£0.00
4" (DN100) AKHSA2014WA12
Normaler Preis £334.91 GBP
Normaler Preis £462.15 GBP Ausverkaufspreis £334.91 GBP
£0.00
Normaler Preis £334.91 GBP
Normaler Preis £462.15 GBP Ausverkaufspreis £334.91 GBP
£0.00
5" (DN125) AKHSA2014WA13
Normaler Preis £427.54 GBP
Normaler Preis £589.97 GBP Ausverkaufspreis £427.54 GBP
£0.00
Normaler Preis £427.54 GBP
Normaler Preis £589.97 GBP Ausverkaufspreis £427.54 GBP
£0.00
6" (DN150) AKHSA2014WA14
Normaler Preis £576.64 GBP
Normaler Preis £795.72 GBP Ausverkaufspreis £576.64 GBP
£0.00
Normaler Preis £576.64 GBP
Normaler Preis £795.72 GBP Ausverkaufspreis £576.64 GBP
£0.00
8" (DN200) AKHSA2014WA16
Normaler Preis £938.17 GBP
Normaler Preis £1,294.61 GBP Ausverkaufspreis £938.17 GBP
£0.00
Normaler Preis £938.17 GBP
Normaler Preis £1,294.61 GBP Ausverkaufspreis £938.17 GBP
£0.00
10" (DN250) AKHSA2014WA18
Normaler Preis £1,857.19 GBP
Normaler Preis £2,562.73 GBP Ausverkaufspreis £1,857.19 GBP
£0.00
Normaler Preis £1,857.19 GBP
Normaler Preis £2,562.73 GBP Ausverkaufspreis £1,857.19 GBP
£0.00
12" (DN300) AKHSA2014WA20
Normaler Preis £2,265.20 GBP
Normaler Preis £3,125.78 GBP Ausverkaufspreis £2,265.20 GBP
£0.00
Normaler Preis £2,265.20 GBP
Normaler Preis £3,125.78 GBP Ausverkaufspreis £2,265.20 GBP
£0.00
