Cejn 326 Series E-Safe Quick Release Coupling
Regular price
$274.00 USD
Delivery times are a guide and are subject to stock availability
Description
This is a Cejn Series 326 E-Safe pneumatic quick release coupling, couplings and Plugs are manufactured from 316 stainless steel. This range has a maximum working pressure of 16 bar with a flow capacity of 1800 l/min. This coupling is valved which is closed when disconnected.
These fittings are designed to be lightweight, with a high flow capacity, small external dimensions and are also suitable for vacuum. The design ensures a fast, easy, one hand operation and extremely efficient. The E-Safe design vents the down stream pressure before disconnecting reducing noise and the risk of hose-whip
Specifications
- Nominal flow diameter is 7.6mm (5/16")
- Flow Capacity is 1800 l/min (63.5 CFM) measured at 6 bar (87 psi) with a 0.5 bar (7 psi) pressure drop
- Max working pressure 16 bar (232 psi)
- Temperature range -20°C to +100°C (-4°F to +212°F)
- Interchange with Rectus 25KA, 26, 1600, 1625, JWL 520, JWL 530
These are an equivalent to:
Bulk order
| Variant | Quantity | Price | Total |
|---|---|---|---|

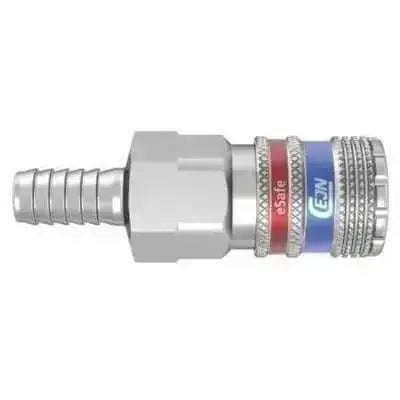

Coupling x Hosetail / 10mm (3/8")
C103262004
|
|
||

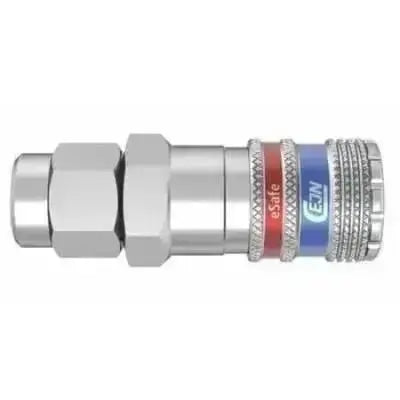

Coupling x Streamline / 8 x 12mm
C103262062
|
|
||

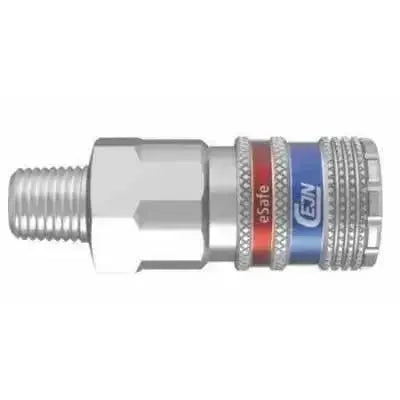

Coupling x BSPT Male / 1/4"
C103262152
|
|
||
|
Coupling x BSPT Male / 3/8"
C103262154
|
|
||
|
Coupling x BSPT Male / 1/2"
C103262155
|
|
||

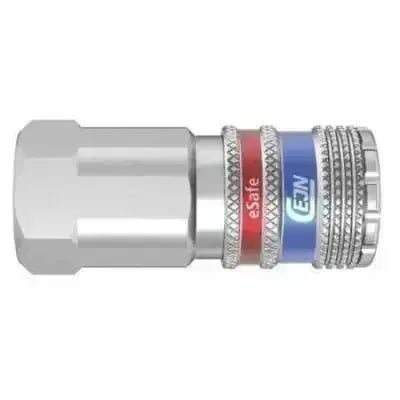

Coupling x BSP Female / 1/4"
C103262202
|
|
||
|
Coupling x BSP Female / 3/8"
C103262204
|
|
||
|
Coupling x BSP Female / 1/2"
C103262205
|
|
||
|
Coupling x NPT Female / 1/4"
C103262402
|
|
||
|
Coupling x NPT Male / 1/4"
C103262452
|
|
||

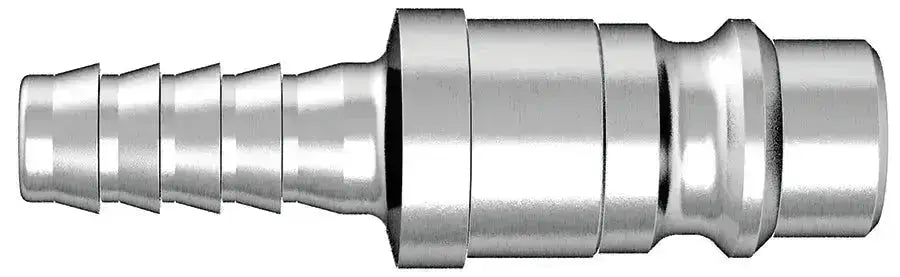

Plug x Hosetail / 1/4"
C103265002
|
|
||
|
Plug x Hosetail / 3/8"
C103265004
|
|
||
|
Plug x Hosetail / 5/16"
C103265003
|
|
||

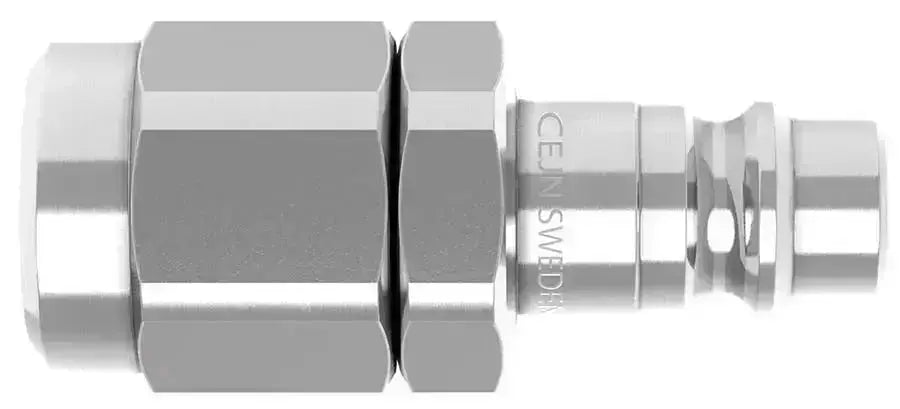

Plug x Streamline / 8 x 12mm
C103265062
|
|
||
Plug x BSPT Male / 1/4"
C103265152
|
|
||
|
Plug x BSPT Male / 3/8"
C103265154
|
|
||

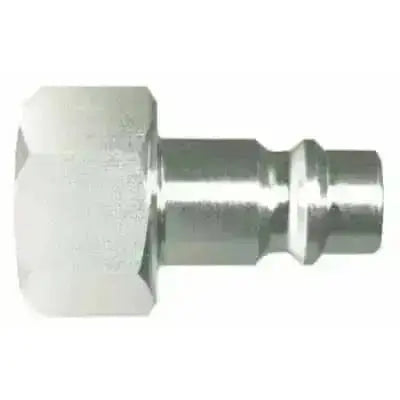

Plug x BSP Female / 3/8"
C103265204
|
|
||
|
Plug x BSP Female / 1/2"
C103265205
|
|
