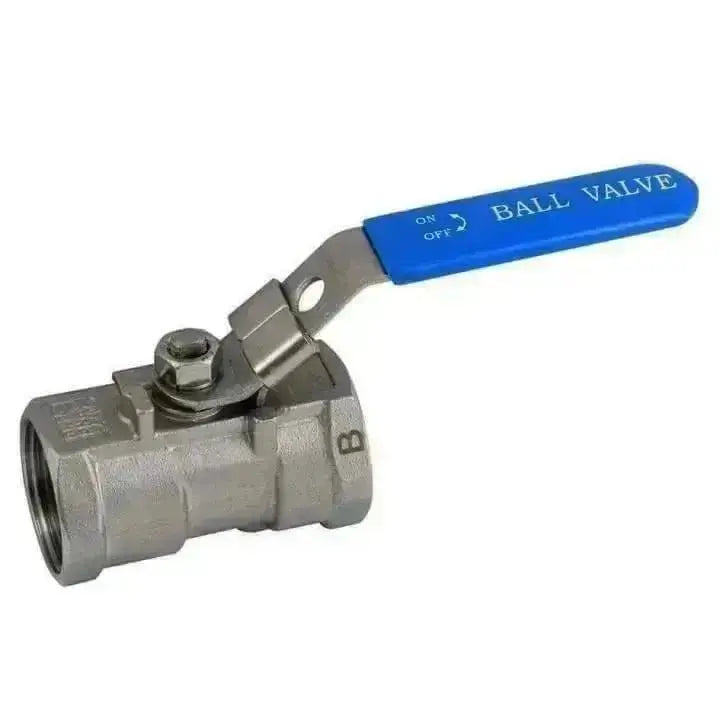

1 Piece Stainless Steel Ball Valve

1 Piece Stainless Steel Ball Valve, Body is made from CF8M stainless steel, the Ball is made from 316 Stainless Steel, with the seats and seals manufactured from PTFE.

Working Temperature -20°C to +200°C. 63 bar Rated.

These valves have a Anti blowout proof stem and Lockable Lever as standard.

3.1b Certification is available on request.  (If require please add a note to your order)

At AK Valves Ltd we have over 25 years experience selling 1 piece Stainless Steel Ball Valves

Valve Construction

Body Material CF8M Stainless Steel

Retainer, Ball and Stem 316 Stainless Steel

Ball Seats, Thrust Washer and Packing PTFE

Handle 201 Stainless Steel



Datasheet

Click to download datasheet for 1 Piece Stainless Steel Ball Valve



How do I measure the BSP Size?



The easiest way, if you are replacing an existing item is to look at the body of the part to see if the size is stated.

To measure, you need the measure the widest thread on the male thread, see here



Check out our blog post What is the difference between 1 piece, 2 piece and 3 piece ball valves?
