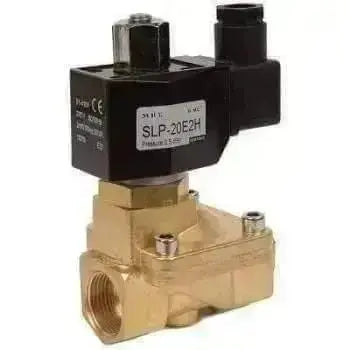

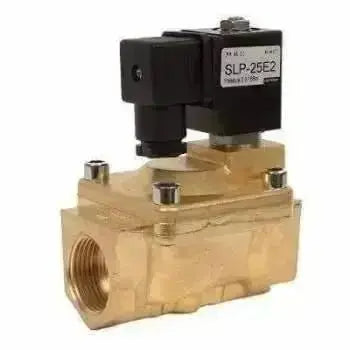

Brass Pilot Operated Solenoid Valve 2/2 Way WRAS Approved
Delivery Time
General Delivery Time: 2 working daysDescription
These solenoid valves are WRAS approved with brass bodies and EPDM diaphragm. These valves have threaded BSP female ports. These valves are pilot operated, they need a minimum of 0.5bar back pressure to operate, and are available normally open or normally closed (position with no power). The cold working pressure range is 0.5bar to 16bar, with a working temperature of 0°C to 120°C.
Other seals (NBR or FPM) available on request.
Coil Consumption
230 VAC is 22VA
24 VDC is 13W
Face to Face
- 3/8" (DN10) 66mm
- 1/2" (DN15) 66mm
- 3/4" (DN20) 75mm
- 1" (DN25) 96mm
- 1.1/4" (DN32) 131mm
- 1.1/2" (DN40) 131mm
- 2" (DN50) 165mm
Installation
It is recommended the these valves are installed with the coil upright, and we also recommend that you install a Y type strainer before the solenoid to prevent any blockages in the valve.
Bulk order
| Variant | Quantity | Price | Total |
|---|---|---|---|
3/8" (DN10) / 24VDC / Normally Closed
ASLGSLPNCW038E24VDC
|
|
||
3/8" (DN10) / 24VDC / Normally Open
ASLGSLPNOW038E24VDC
|
|
||
|
3/8" (DN10) / 24VAC / Normally Closed
ASLGSLPNCW038E24VAC
|
|
||
|
3/8" (DN10) / 24VAC / Normally Open
ASLGSLPNOW038E24VAC
|
|
||
|
3/8" (DN10) / 110VAC / Normally Closed
ASLGSLPNCW038E110VAC
|
|
||
|
3/8" (DN10) / 110VAC / Normally Open
ASLGSLPNOW038E110VAC
|
|
||
|
3/8" (DN10) / 230VAC / Normally Closed
ASLGSLPNCW038E230VAC
|
|
||
|
3/8" (DN10) / 230VAC / Normally Open
ASLGSLPNOW038E230VAC
|
|
||
|
1/2" (DN15) / 24VDC / Normally Closed
aASLGSLPNCW050E24VDC
|
|
||
|
1/2" (DN15) / 24VDC / Normally Open
ASLGSLPNOW050E24VDC
|
|
||
|
1/2" (DN15) / 24VAC / Normally Closed
aASLGSLPNCW050E24VAC
|
|
||
|
1/2" (DN15) / 24VAC / Normally Open
ASLGSLPNOW050E24VAC
|
|
||
|
1/2" (DN15) / 110VAC / Normally Closed
ASLGSLPNCW050E110VAC
|
|
||
|
1/2" (DN15) / 110VAC / Normally Open
ASLGSLPNOW050E110VAC
|
|
||
|
1/2" (DN15) / 230VAC / Normally Closed
ASLGSLPNCW050E230VAC
|
|
||
|
1/2" (DN15) / 230VAC / Normally Open
ASLGSLPNOW050E230VAC
|
|
||
|
3/4" (DN20) / 24VDC / Normally Closed
aASLGSLPNCW075E24VDC
|
|
||
|
3/4" (DN20) / 24VDC / Normally Open
ASLGSLPNOW075E24VDC
|
|
||
|
3/4" (DN20) / 24VAC / Normally Closed
aASLGSLPNCW075E24VAC
|
|
||
|
3/4" (DN20) / 24VAC / Normally Open
ASLGSLPNOW075E24VAC
|
|
||
|
3/4" (DN20) / 110VAC / Normally Closed
ASLGSLPNCW075E110VAC
|
|
||
|
3/4" (DN20) / 110VAC / Normally Open
ASLGSLPNOW075E110VAC
|
|
||
|
3/4" (DN20) / 230VAC / Normally Closed
ASLGSLPNCW075E230VAC
|
|
||
|
3/4" (DN20) / 230VAC / Normally Open
ASLGSLPNOW075E230VAC
|
|
Product subtotal
