Camlock Part D BSPP Female Coupler
Regular price
£5.41 GBP
Regular price
£12.59 GBP
Sale price
£5.41 GBP
Delivery Time
General Delivery Time: 2 working days
Delivery times are a guide and are subject to stock availability
Description

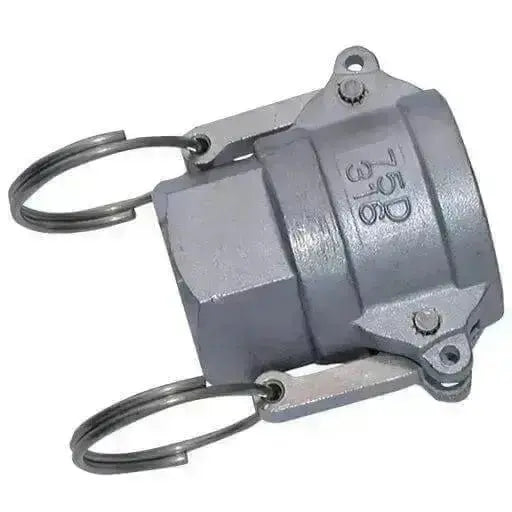

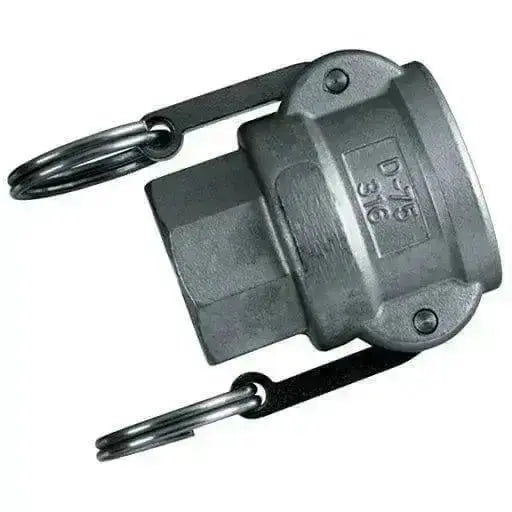

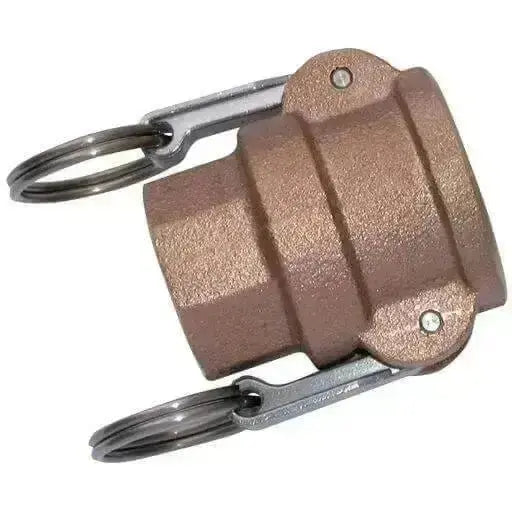

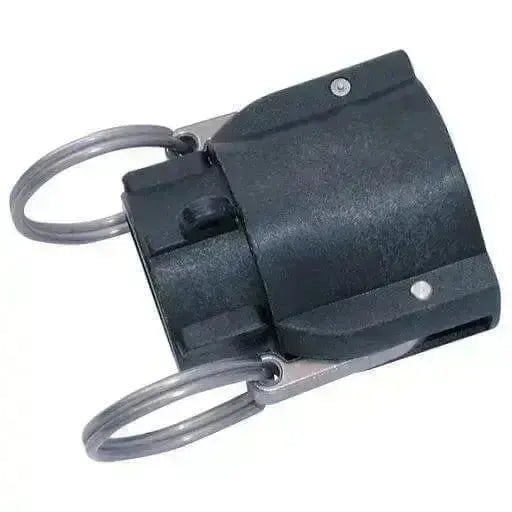

These Camlock (Cam and Groove) fittings are coupling (female) x BSPP Female. These are available in Aluminium, Brass, Polypropylene and Stainless Steel. When used with the female half (coupling) provides a quick any easy disconnect coupling for hoses and pipes from many industries. The levers on the couplings are manufactured from 304 stainless steel for all brass, polypropylene and stainless steel fittings, and brass for the aluminium coulpings
Technical
Working temperature -40°C to +100°C. Maximum working pressures, based on 20°C, are as follows: Aluminium, Brass and Stainless Steel 1/2" 10.3 bar, 3/4" to 2" 17.2 bar, 2.1/2" 10.3 bar, 3" 8.6 bar, 4" 6.9 bar. Polypropylene 7 bar all sizes.
These are an equivalent to:
Bulk order
| Variant | Quantity | Price | Total |
|---|---|---|---|
|
1/2" / Aluminium
AH-D050-A
|
|
||
|
1/2" / Brass
AH-D050-B
|
|
||
|
1/2" / Polypropylene
AH-D050-P
|
|
||
|
1/2" / Stainless Steel
AH-D050-S
|
|
||
|
3/4" / Aluminium
AH-D075-A
|
|
||
|
3/4" / Brass
AH-D075-B
|
|
||
|
3/4" / Polypropylene
AH-D075-P
|
|
||
|
3/4" / Stainless Steel
AH-D075-S
|
|
||
|
1" / Aluminium
AH-D100-A
|
|
||
|
1" / Brass
AH-D100-B
|
|
||
|
1" / Polypropylene
AH-D100-P
|
|
||
|
1" / Stainless Steel
AH-D100-S
|
|
||
|
1.1/4" / Aluminium
AH-D125-A
|
|
||
|
1.1/4" / Brass
AH-D125-B
|
|
||
|
1.1/4" / Stainless Steel
AH-D125-S
|
|
||
|
1.1/2" / Aluminium
AH-D150-A
|
|
||
|
1.1/2" / Brass
AH-D150-B
|
|
||
|
1.1/2" / Polypropylene
AH-D150-P
|
|
||
|
1.1/2" / Stainless Steel
AH-D150-S
|
|
||
|
2" / Aluminium
AH-D200-A
|
|
||
|
2" / Brass
AH-D200-B
|
|
||
|
2" / Polypropylene
AH-D200-P
|
|
||
|
2" / Stainless Steel
AH-D200-S
|
|
||
|
2.1/2" / Aluminium
AH-D250-A
|
|
