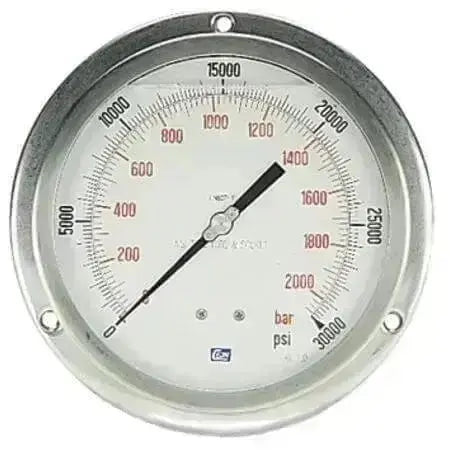

Cejn 150mm Dial Pressure Gauge Panel Mount
These Cejn 940 Series High Pressure glycerine filled pressure gauges come with a panel mount flange with 1/2" BSP connections lower back entry. The gauges are manufactured from stainless steel with a plexiglass window, the units are in bar (black) and psi (red) with an accuracy 0-1%. The panel mount flange has three holes 1 at the top and the other 2 are at 120°, the holes are 6mm on 173mm centres and the od of the flange is 190mm. The range of these gauges is 0 to 1000/1600/2000 bar / 0 to 14500/23200/29000 and the recommend morking pressure is 75% of the range (750 bar / 10875 psi). The working temperature range for these gauges is +15°C to +65°C
