Cejn 220 Series Quick Release Coupling
Regular price
£25.93 GBP
Delivery Time
General Delivery Time: 2 working days
Delivery times are a guide and are subject to stock availability
Description
This is a Cejn Series 220 pneumatic quick release coupling, couplings are manufactured from nickel plated brass and the Plugs are manufactured from hardened zinc plated steel. This range has a maximum working pressure of 35 bar with a flow capacity of 580 l/min. This coupling is valved which is closed when disconnected.
These fittings are designed to be lightweight, with a high flow capacity, small external dimensions and are also suitable for vacuum. The design ensures a fast, easy, one hand operation and extremely efficient.
Specifications
- Nominal flow diameter is 5mm (3/16")
- Flow Capacity is 580 l/min (20.5 CFM) measured at 6 bar (87 psi) with a 0.5 bar (7 psi) pressure drop
- Max working pressure 35 bar (507 psi)
- Temperature range -30°C to +100°C (-22°F to +212°F)
These are an equivalent to:
Bulk order
| Variant | Quantity | Price | Total |
|---|---|---|---|

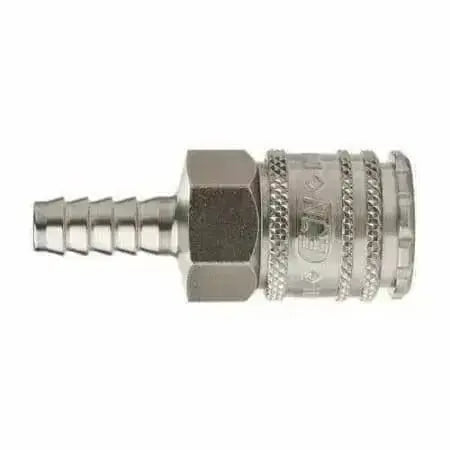

5mm (3/16") / Coupling x Hosetail
C102201001
|
|
||
|
6mm (1/4") / Coupling x Hosetail
C102201002
|
|
||
|
8mm (5/16") / Coupling x Hosetail
C102201003
|
|
||
|
10mm (3/8") / Coupling x Hosetail
C102201004
|
|
||

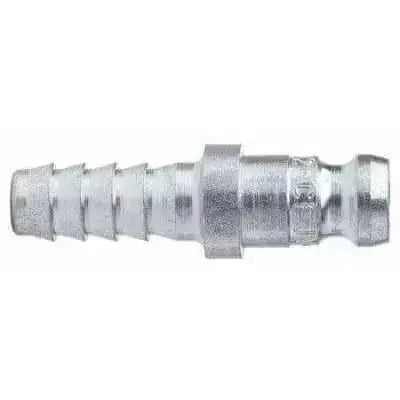

5mm (3/16") / Plug x Hosetail
C102205001
|
|
||
|
6mm (1/4") / Plug x Hosetail
C102205002
|
|
||
|
10mm (3/8") / Plug x Hosetail
C102205004
|
|
||
|
8mm (5/16") / Plug x Hosetail
C102205003
|
|
||

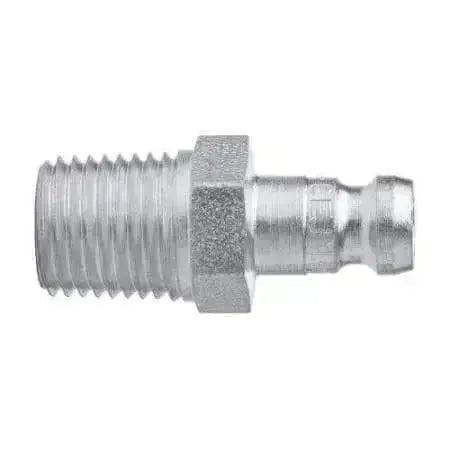

1/8" / Plug x BSPT Male
C102205151
|
|
||
|
1/4" / Plug x BSPT Male
C102205152
|
|
||
|
3/8" / Plug x BSPT Male
C102205154
|
|
||

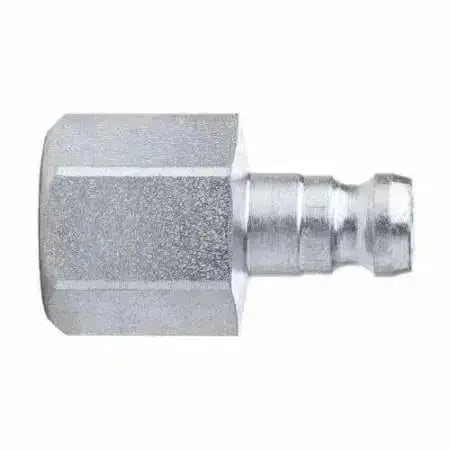

1/8" / Plug x BSPP Female
C102205201
|
|
||
|
1/4" / Plug x BSPP Female
C102205202
|
|
||
|
3/8" / Plug x BSPP Female
C102205204
|
|
||

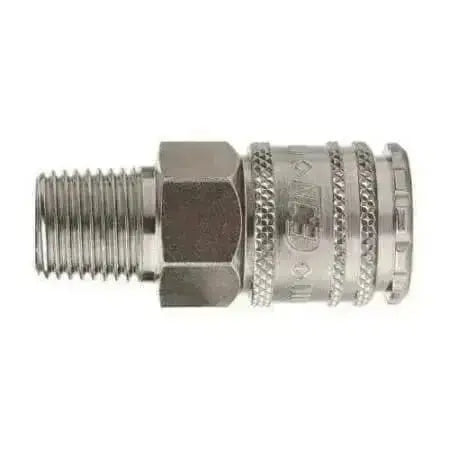

1/8" / Coupling x BSPT Male
C102201151
|
|
||
|
1/4" / Coupling x BSPT Male
C102201152
|
|
||
|
3/8" / Coupling x BSPT Male
C102201154
|
|
||

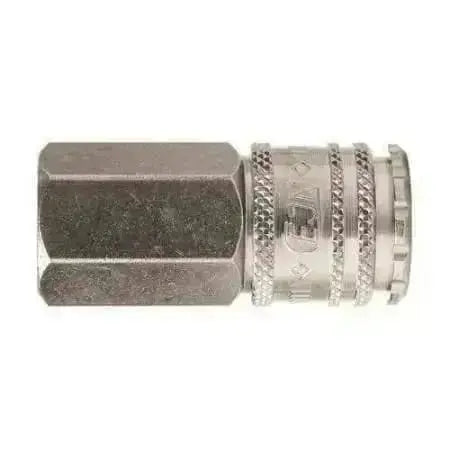

1/8" / Coupling x BSPP Female
C102201201
|
|
||
|
1/4" / Coupling x BSPP Female
C102201202
|
|
||
|
3/8" / Coupling x BSPP Female
C102201204
|
|
