Cejn 300 Series E-Safe Quick Release Coupling

SKU: C103002002
Type
Size
Regular price £29.47 GBP

Delivery Time

General Delivery Time: 2 working days
Delivery times are a guide and are subject to stock availability

Description

This is a Cejn Series 300 E-Safe pneumatic quick release coupling, couplings are manufactured from nickel plated brass and the Plugs are manufactured from hardened zinc plated steel. This range has a maximum working pressure of 16 bar with a flow capacity of 1050 l/min.  This coupling is valved which is closed when disconnected.

These fittings are designed to be lightweight, with a high flow capacity, small external dimensions and are also suitable for vacuum.  The design ensures a fast, easy, one hand operation and extremely efficient. The E-Safe design vents the down stream pressure before disconnecting reducing noise and the risk of hose-whip

Specifications

  • Nominal flow diameter is 5.5mm (7/32")
  • Flow Capacity is 1050 l/min (37.1 CFM) measured at 6 bar (87 psi) with a 0.5 bar (7 psi) pressure drop
  • Max working pressure 16 bar (232 psi)
  • Temperature range -20°C to +100°C (-4°F to +212°F)
  • Interchange with ARO 210 standard, Rectus 14KA, Rectus 22, Parker 50, JWL 522, JWL 532
These are an equivalent to:

Bulk order

Variant Quantity Price Total
Cejn 300 Series E - Safe Quick Release Coupling - AK Valves Ltd

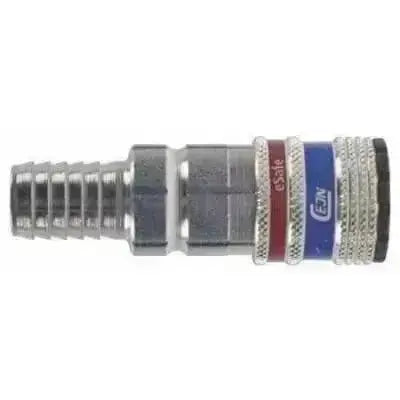

Coupling x Hosetail / 6.3mm (1/4" C103002002
Regular price £29.47 GBP
£0.00
Regular price £29.47 GBP
£0.00
Cejn 300 Series E - Safe Quick Release Coupling - AK Valves Ltd
Coupling x Hosetail / 8mm (5/16") C103002003
Regular price £29.47 GBP
£0.00
Regular price £29.47 GBP
£0.00
Cejn 300 Series E - Safe Quick Release Coupling - AK Valves Ltd
Coupling x Hosetail / 10mm (3/8") C103002004
Regular price £29.47 GBP
£0.00
Regular price £29.47 GBP
£0.00
Cejn 300 Series E - Safe Quick Release Coupling - AK Valves Ltd
Coupling x Hosetail / 13mm (1/2") C103002005
Regular price £30.27 GBP
£0.00
Regular price £30.27 GBP
£0.00
Cejn 300 Series E - Safe Quick Release Coupling - AK Valves Ltd
Coupling x Streamline / 6.5 x 10mm C103002060
Regular price £33.69 GBP
£0.00
Regular price £33.69 GBP
£0.00
Cejn 300 Series E - Safe Quick Release Coupling - AK Valves Ltd
Coupling x Streamline / 8 x 12mm C103002062
Regular price £33.69 GBP
£0.00
Regular price £33.69 GBP
£0.00
Cejn 300 Series E - Safe Quick Release Coupling - AK Valves Ltd
Coupling x Streamline / 9.5 x 13.5mm C103002063
Regular price £34.45 GBP
£0.00
Regular price £34.45 GBP
£0.00
Cejn 300 Series E - Safe Quick Release Coupling - AK Valves Ltd
Coupling x Streamline / 11 x 16mm C103002066
Regular price £36.53 GBP
£0.00
Regular price £36.53 GBP
£0.00
Cejn 300 Series E - Safe Quick Release Coupling - AK Valves Ltd
Coupling x Soft-line / 8 x 12mm C103002082
Regular price £53.49 GBP
£0.00
Regular price £53.49 GBP
£0.00
Cejn 300 Series E - Safe Quick Release Coupling - AK Valves Ltd

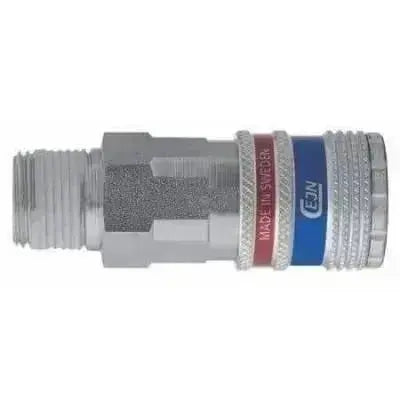

Coupling x BSPT Male / 1/4" C103002152
Regular price £29.47 GBP
£0.00
Regular price £29.47 GBP
£0.00
Cejn 300 Series E - Safe Quick Release Coupling - AK Valves Ltd
Coupling x BSPT Male / 3/8" C103002154
Regular price £30.27 GBP
£0.00
Regular price £30.27 GBP
£0.00
Cejn 300 Series E - Safe Quick Release Coupling - AK Valves Ltd
Coupling x BSPT Male / 1/2" C103002155
Regular price £30.27 GBP
£0.00
Regular price £30.27 GBP
£0.00
Cejn 300 Series E - Safe Quick Release Coupling - AK Valves Ltd

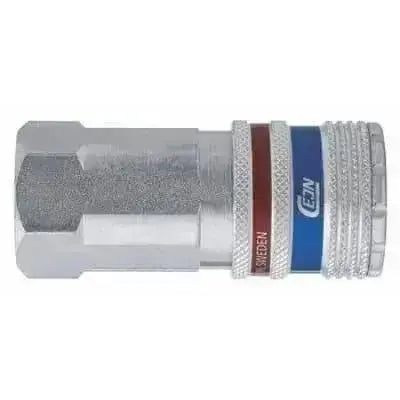

Coupling x BSPP Female / 1/4" C103002202
Regular price £29.47 GBP
£0.00
Regular price £29.47 GBP
£0.00
Cejn 300 Series E - Safe Quick Release Coupling - AK Valves Ltd
Coupling x BSPP Female / 3/8" C103002204
Regular price £30.27 GBP
£0.00
Regular price £30.27 GBP
£0.00
Cejn 300 Series E - Safe Quick Release Coupling - AK Valves Ltd
Coupling x BSPP Female / 1/2" C103002205
Regular price £30.27 GBP
£0.00
Regular price £30.27 GBP
£0.00
Cejn 300 Series E - Safe Quick Release Coupling - AK Valves Ltd

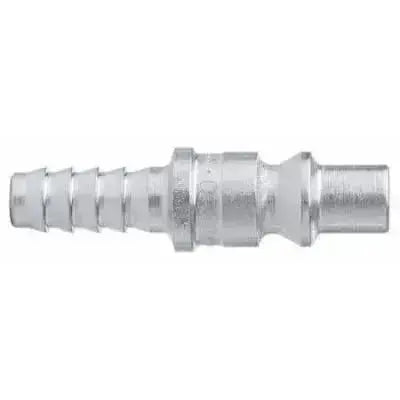

Plug x Hosetail / 6mm (1/4") C103005002
Regular price £4.98 GBP
£0.00
Regular price £4.98 GBP
£0.00
Cejn 300 Series E - Safe Quick Release Coupling - AK Valves Ltd
Plug x Hosetail / 8mm (5/16") C103005003
Regular price £4.98 GBP
£0.00
Regular price £4.98 GBP
£0.00
Cejn 300 Series E - Safe Quick Release Coupling - AK Valves Ltd
Plug x Hosetail / 10mm (3/8") C103005004
Regular price £4.98 GBP
£0.00
Regular price £4.98 GBP
£0.00
Cejn 300 Series E - Safe Quick Release Coupling - AK Valves Ltd

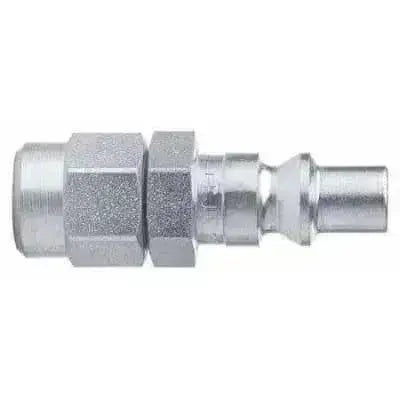

Plug x Streamline / 6.5 x 10mm C103005060
Regular price £10.49 GBP
£0.00
Regular price £10.49 GBP
£0.00
Cejn 300 Series E - Safe Quick Release Coupling - AK Valves Ltd
Plug x Streamline / 8 x 12mm C103005062
Regular price £12.09 GBP
£0.00
Regular price £12.09 GBP
£0.00
Cejn 300 Series E - Safe Quick Release Coupling - AK Valves Ltd
Plug x Streamline / 9.5 x 13.5mm C103005063
Regular price £26.14 GBP
£0.00
Regular price £26.14 GBP
£0.00
Cejn 300 Series E - Safe Quick Release Coupling - AK Valves Ltd
Plug x Streamline / 11 x 16mm C103005066
Regular price £27.49 GBP
£0.00
Regular price £27.49 GBP
£0.00
Cejn 300 Series E - Safe Quick Release Coupling - AK Valves Ltd

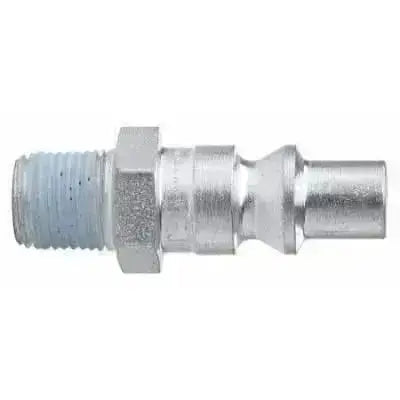

Plug x BSPT Male / 1/8" C103005151
Regular price £5.97 GBP
£0.00
Regular price £5.97 GBP
£0.00
Cejn 300 Series E - Safe Quick Release Coupling - AK Valves Ltd
Plug x BSPT Male / 1/4" C103005152
Regular price £3.24 GBP
£0.00
Regular price £3.24 GBP
£0.00
