Cejn 310 Series E-Safe Quick Release Coupling

SKU: C103102002
Type
Size
Regular price £25.75

Delivery Time

General Delivery Time: 2 working days
Delivery times are a guide and are subject to stock availability

Description

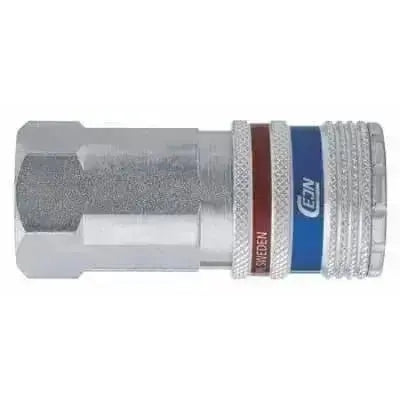

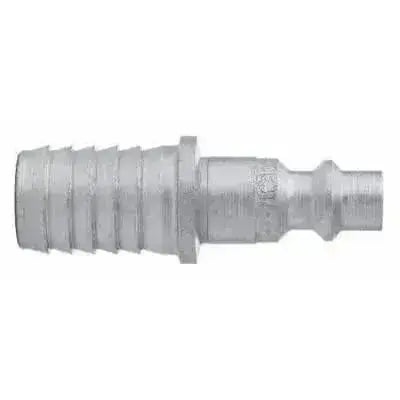

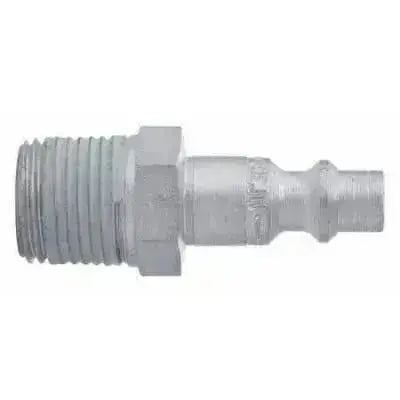

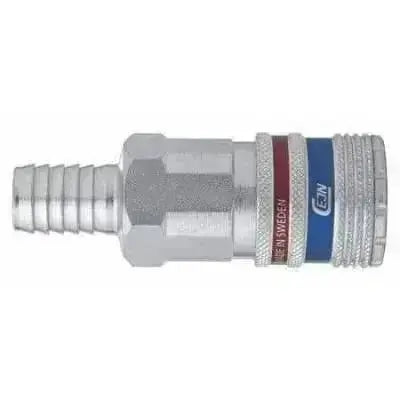

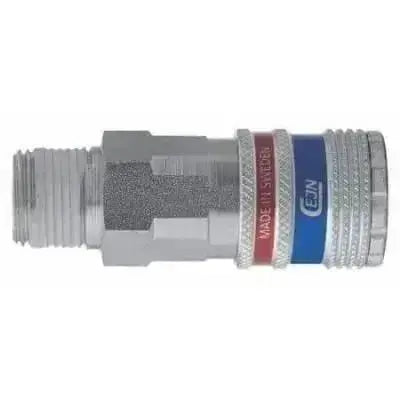

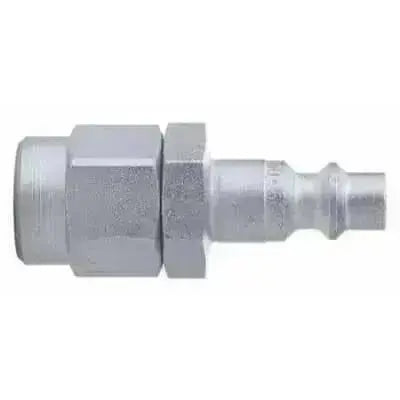

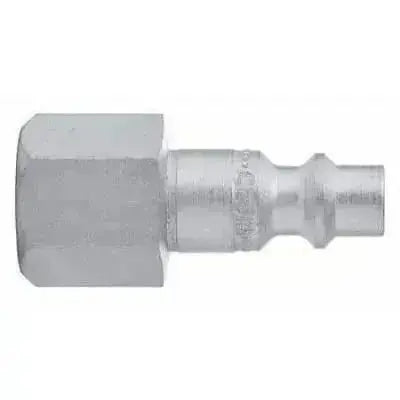

This is a Cejn Series 310 E-Safe pneumatic quick release coupling, couplings are manufactured from nickel plated brass and the Plugs are manufactured from hardened zinc plated steel. This range has a maximum working pressure of 16 bar with a flow capacity of 950 l/min.  This coupling is valved which is closed when disconnected.

These fittings are designed to be lightweight, with a high flow capacity, small external dimensions and are also suitable for vacuum.  The design ensures a fast, easy, one hand operation and extremely efficient. The E-Safe design vents the down stream pressure before disconnecting reducing noise and the risk of hose-whip

Specifications

  • Nominal flow diameter is 5.3mm (7/32")
  • Flow Capacity is 950 l/min (33.5 CFM) measured at 6 bar (87 psi) with a 0.5 bar (7 psi) pressure drop
  • Max working pressure 16 bar (232 psi)
  • Temperature range -20°C to +100°C (-4°F to +212°F)
  • Interchange with ISO Standard 6150 B, A-A 59439
These are an equivalent to:
