Cejn 315 Series E-Safe Quick Release Coupling

SKU: C103152002
Type
Size
Regular price £29.73 GBP

Delivery Time
General Delivery Time: 2 working days
Delivery times are a guide and are subject to stock availability

Description

This is a Cejn Series 315 E-Safe pneumatic quick release coupling, couplings are manufactured from nickel plated brass and the Plugs are manufactured from hardened zinc plated steel. This range has a maximum working pressure of 16 bar with a flow capacity of 1950 l/min.  This coupling is valved which is closed when disconnected.

These fittings are designed to be lightweight, with a high flow capacity, small external dimensions and are also suitable for vacuum.  The design ensures a fast, easy, one hand operation and extremely efficient. The E-Safe design vents the down stream pressure before disconnecting reducing noise and the risk of hose-whip

Specifications

  • Nominal flow diameter is 7.5mm (5/16")
  • Flow Capacity is 1950 l/min (68.8 CFM) measured at 6 bar (87 psi) with a 0.5 bar (7 psi) pressure drop
  • Max working pressure 16 bar (232 psi)
  • Temperature range -20°C to +100°C (-4°F to +212°F)
  • Interchange with Rectus 03, Nitto Kohki 200(Japan) Rectus 13KA
These are an equivalent to:

Bulk order

Variant Quantity Price Total

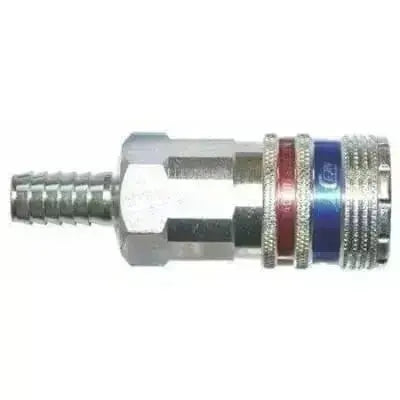

Cejn 315 Series E - Safe Quick Release Coupling - AK Valves Ltd
Coupling x Hosetail / 6.3mm (1/4" C103152002
Regular price £29.73 GBP
£0.00
Regular price £29.73 GBP
£0.00
Cejn 315 Series E - Safe Quick Release Coupling - AK Valves Ltd
Coupling x Hosetail / 7mm (9/32") C103152043
Regular price £29.73 GBP
£0.00
Regular price £29.73 GBP
£0.00
Cejn 315 Series E - Safe Quick Release Coupling - AK Valves Ltd
Coupling x Hosetail / 10mm (3/8") C103152004
Regular price £29.73 GBP
£0.00
Regular price £29.73 GBP
£0.00
Cejn 315 Series E - Safe Quick Release Coupling - AK Valves Ltd
Coupling x Hosetail / 13mm (1/2") C103152005
Regular price £29.73 GBP
£0.00
Regular price £29.73 GBP
£0.00
Cejn 315 Series E - Safe Quick Release Coupling - AK Valves Ltd
Coupling x Streamline / 5 x 8mm C103152058
Regular price £33.91 GBP
£0.00
Regular price £33.91 GBP
£0.00
Cejn 315 Series E - Safe Quick Release Coupling - AK Valves Ltd
Coupling x Streamline / 6.5 x 10mm C103152060
Regular price £33.91 GBP
£0.00
Regular price £33.91 GBP
£0.00
Cejn 315 Series E - Safe Quick Release Coupling - AK Valves Ltd
Coupling x Streamline / 8 x 12mm C103152062
Regular price £33.91 GBP
£0.00
Regular price £33.91 GBP
£0.00
Cejn 315 Series E - Safe Quick Release Coupling - AK Valves Ltd
Coupling x Streamline / 9.5 x 13.5mm C103152063
Regular price £34.50 GBP
£0.00
Regular price £34.50 GBP
£0.00
Cejn 315 Series E - Safe Quick Release Coupling - AK Valves Ltd
Coupling x Streamline / 11 x 16mm C103152066
Regular price £36.53 GBP
£0.00
Regular price £36.53 GBP
£0.00
Cejn 315 Series E - Safe Quick Release Coupling - AK Valves Ltd
Coupling x Soft-line / 8 x 12mm C103152082
Regular price £53.84 GBP
£0.00
Regular price £53.84 GBP
£0.00
Cejn 315 Series E - Safe Quick Release Coupling - AK Valves Ltd
Coupling (With Lock Ring) x Streamline / 6.5 x 10mm C103152090
Regular price £55.07 GBP
£0.00
Regular price £55.07 GBP
£0.00
Cejn 315 Series E - Safe Quick Release Coupling - AK Valves Ltd
Coupling (With Lock Ring) x Streamline / 8 x 12mm C103152092
Regular price £54.26 GBP
£0.00
Regular price £54.26 GBP
£0.00
Cejn 315 Series E - Safe Quick Release Coupling - AK Valves Ltd
Coupling (With Lock Ring) x Streamline / 11 x 16mm C103152096
Regular price £61.91 GBP
£0.00
Regular price £61.91 GBP
£0.00

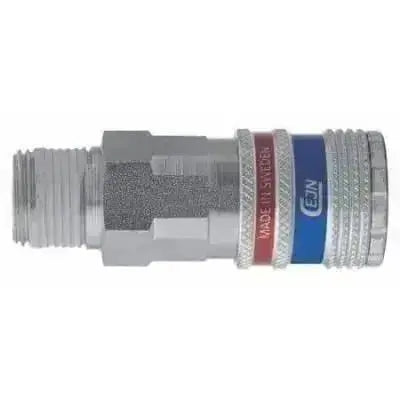

Cejn 315 Series E - Safe Quick Release Coupling - AK Valves Ltd
Coupling x BSPT Male / 1/4" C103152152
Regular price £29.73 GBP
£0.00
Regular price £29.73 GBP
£0.00
Cejn 315 Series E - Safe Quick Release Coupling - AK Valves Ltd
Coupling x BSPT Male / 3/8" C103152154
Regular price £29.73 GBP
£0.00
Regular price £29.73 GBP
£0.00
Cejn 315 Series E - Safe Quick Release Coupling - AK Valves Ltd
Coupling x BSPT Male / 1/2" C103152155
Regular price £29.73 GBP
£0.00
Regular price £29.73 GBP
£0.00

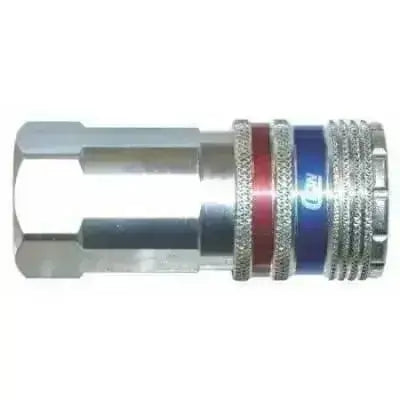

Cejn 315 Series E - Safe Quick Release Coupling - AK Valves Ltd
Coupling x BSPP Female / 1/4" C103152202
Regular price £29.73 GBP
£0.00
Regular price £29.73 GBP
£0.00
Cejn 315 Series E - Safe Quick Release Coupling - AK Valves Ltd
Coupling x BSPP Female / 3/8" C103152204
Regular price £29.73 GBP
£0.00
Regular price £29.73 GBP
£0.00
Cejn 315 Series E - Safe Quick Release Coupling - AK Valves Ltd
Coupling (With Lock Ring) x BSPP Female / 3/8" C103152244
Regular price £51.94 GBP
£0.00
Regular price £51.94 GBP
£0.00

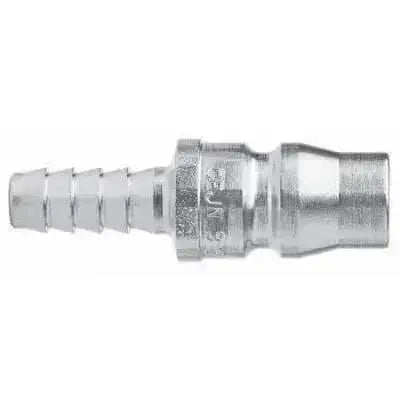

Cejn 315 Series E - Safe Quick Release Coupling - AK Valves Ltd
Plug x Hosetail / 7mm (9/32") C103155043
Regular price £4.66 GBP
£0.00
Regular price £4.66 GBP
£0.00
Cejn 315 Series E - Safe Quick Release Coupling - AK Valves Ltd
Plug x Hosetail / 10mm (3/8") C103155004
Regular price £4.66 GBP
£0.00
Regular price £4.66 GBP
£0.00
Cejn 315 Series E - Safe Quick Release Coupling - AK Valves Ltd
Plug x Hosetail / 13mm (1/2") C103155005
Regular price £6.28 GBP
£0.00
Regular price £6.28 GBP
£0.00
Cejn 315 Series E - Safe Quick Release Coupling - AK Valves Ltd
Plug x Hosetail / 6mm (1/4") C103155002
Regular price £12.65 GBP
£0.00
Regular price £12.65 GBP
£0.00
Cejn 315 Series E - Safe Quick Release Coupling - AK Valves Ltd
Plug x Streamline / 5 x 8mm C103155058
Regular price £10.99 GBP
£0.00
Regular price £10.99 GBP
£0.00
