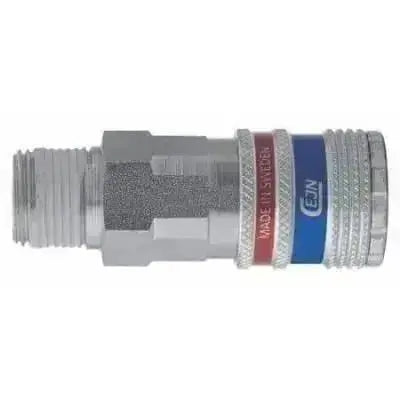

Cejn 320 Series E-Safe Quick Release Coupling
Regular price
£27.19 GBP
Delivery Time
General Delivery Time: 2 working days
Delivery times are a guide and are subject to stock availability
Description
This is a Cejn Series 320 E-Safe pneumatic quick release coupling, couplings are manufactured from nickel plated brass and the Plugs are manufactured from hardened zinc plated steel. This range has a maximum working pressure of 16 bar with a flow capacity of 2250 l/min. This coupling is valved which is closed when disconnected.
These fittings are designed to be lightweight, with a high flow capacity, small external dimensions and are also suitable for vacuum. The design ensures a fast, easy, one hand operation and extremely efficient. The E-Safe design vents the down stream pressure before disconnecting reducing noise and the risk of hose-whip

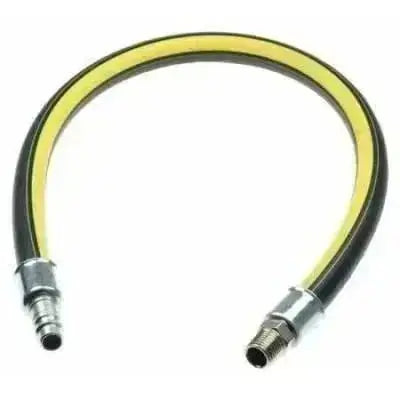

Whip hoses are 0.5 mtr long and have BSPT Male x 320 Plug ends the hose bore size are in brackets.
Specifications
- Nominal flow diameter is 7.6mm (5/16")
- Flow Capacity is 2250 l/min (79.4 CFM) measured at 6 bar (87 psi) with a 0.5 bar (7 psi) pressure drop
- Max working pressure 16 bar (232 psi)
- Temperature range -20°C to +100°C (-4°F to +212°F)
- Interchange with Rectus 25KA, 26, 1600, 1625, JWL 520, JWL 530
These are an equivalent to:
Bulk order
| Variant | Quantity | Price | Total |
|---|---|---|---|

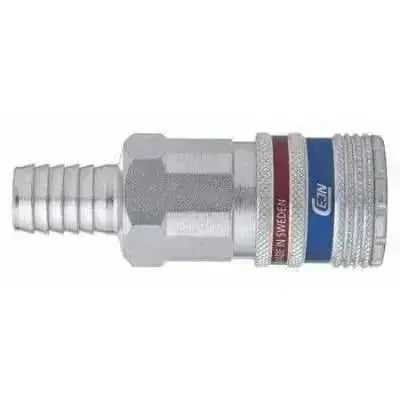

Coupling x Hosetail / 6mm (1/4")
C103202002
|
|
||
|
Coupling x Hosetail / 8mm (5/16")
C103202003
|
|
||
|
Coupling x Hosetail / 10mm (3/8")
C103202004
|
|
||
|
Coupling x Hosetail / 13mm (1/2")
C103202005
|
|
||
Coupling x Streamline / 5 x 8mm
C103202058
|
|
||
|
Coupling x Streamline / 6.5 x 10mm
C103202060
|
|
||
|
Coupling x Streamline / 8 x 12mm
C103202062
|
|
||
|
Coupling x Streamline / 9.5 x 13.5mm
C103202063
|
|
||
|
Coupling x Streamline / 11 x 16mm
C103202066
|
|
||
Coupling x Soft-line / 8 x 12mm
C103202082
|
|
||
|
Coupling (With Lock Ring) x Streamline / 6.5 x 10mm
C103202090
|
|
||
|
Coupling (With Lock Ring) x Streamline / 8 x 12mm
C103202092
|
|
||
|
Coupling (With Lock Ring) x Streamline / 11 x 16mm
C103202096
|
|
||
Coupling x BSPT Male / 1/4"
C103202152
|
|
||
|
Coupling x BSPT Male / 3/8"
C103202154
|
|
||
|
Coupling x BSPT Male / 1/2"
C103202155
|
|
||

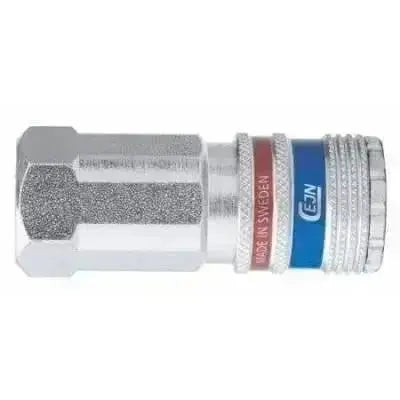

Coupling x BSPP Female / 1/4"
C103202202
|
|
||
|
Coupling x BSPP Female / 3/8"
C103202204
|
|
||
|
Coupling x BSPP Female / 1/2"
C103202205
|
|
||
|
Coupling (With Lock Ring) x BSPP Female / 3/8"
C103202244
|
|
||

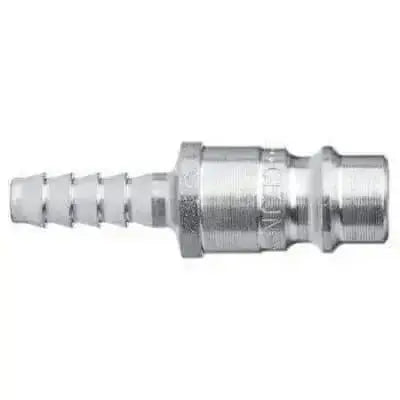

Plug x Hosetail / 6mm (1/4")
C103205002
|
|
||
|
Plug x Hosetail / 8mm (5/16")
C103205003
|
|
||
|
Plug x Hosetail / 10mm (3/8")
C103205004
|
|
||
|
Plug x Hosetail / 13mm (1/2")
C103205005
|
|
