Cejn 342 Breathing Air Coupling
Delivery Time
General Delivery Time: 2 working daysDescription
This is a Cejn Series 342 breathing air quick release coupling, couplings are manufactured from zinc plated steel / brass and Plugs are manufactured from hardened zinc plated steel. This range has a maximum working pressure of 35 bar with a flow capacity of 1950 l/min. This coupling is valved which is closed when disconnected. These couplings are designed to prevent unintention disconnection, one hand to connect, and two hand to disconnect.
These fittings are designed to have an extremely high flow rate and are perfect for use in damp/wet and corrosive environments.
Specifications
- Nominal flow diameter is 7.4mm (9/32")
- Flow Capacity is 1950 l/min (68.8 CFM) measured at 6 bar (87 psi) with a 0.5 bar (7 psi) pressure drop
- Max working pressure 35 bar (507 psi)
- Temperature range -30°C to +100°C (-4°F to +212°F)
Bulk order
| Variant | Quantity | Price | Total |
|---|---|---|---|

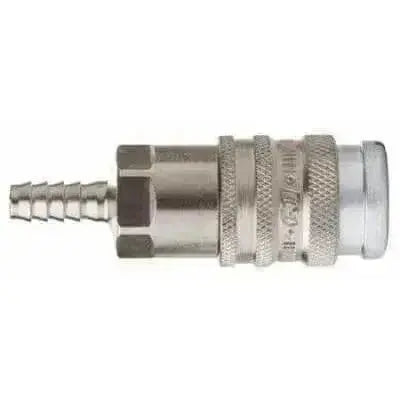

Coupling x Hosetail / 6mm (1/4")
C103421002
|
|
||
|
Coupling x Hosetail / 8mm (5/16")
C103421003
|
|
||
|
Coupling x Hosetail / 10mm (3/8")
C103421004
|
|
||
|
Coupling x Hosetail / 13mm (1/2")
C103421005
|
|
||

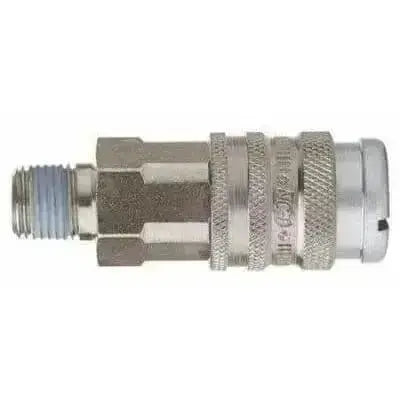

Coupling x BSPT Male / 1/4"
C103421152
|
|
||
|
Coupling x BSPT Male / 3/8"
C103421154
|
|
||
|
Coupling x BSPT Male / 1/2"
C103421155
|
|
||

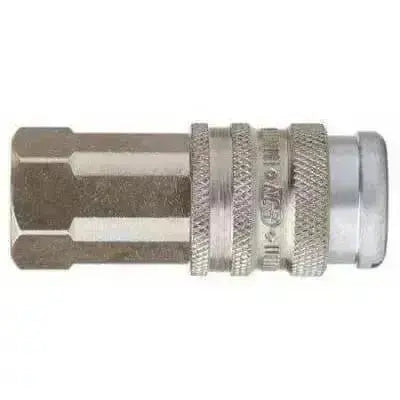

Coupling x BSPP Female / 1/4"
C103421202
|
|
||
|
Coupling x BSPP Female / 3/8"
C103421204
|
|
||
|
Coupling x BSPP Female / 1/2"
C103421205
|
|
||

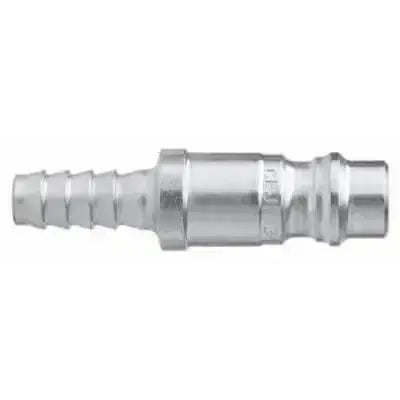

Plug x Hosetail / 6mm (1/4")
C103425002
|
|
||
|
Plug x Hosetail / 10mm (3/8")
C103425004
|
|
||
|
Plug x Hosetail / 13mm (1/2")
C103425005
|
|
||

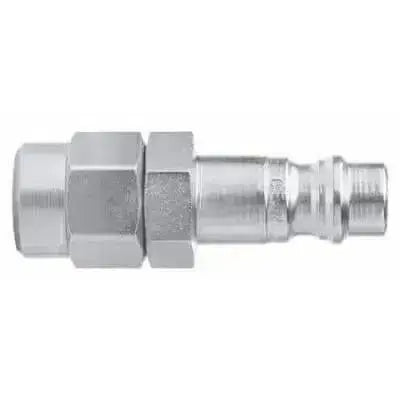

Plug x Stream Line / 6.5 x 10mm
C103425060
|
|
||
|
Plug x Stream Line / 8 x 12mm
C103425062
|
|
||

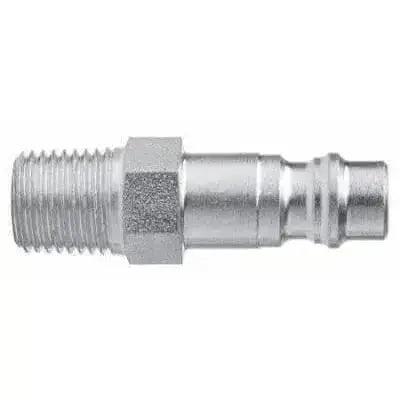

Plug x BSPT Male / 1/4"
C103425152
|
|
||
|
Plug x BSPT Male / 3/8"
C103425154
|
|
||
|
Plug x BSPT Male / 1/2"
C103425155
|
|
||

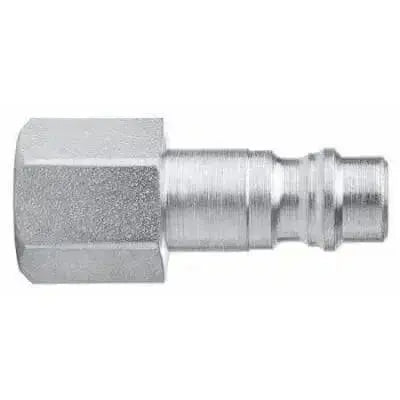

Plug x BSPP Female / 1/4"
C103425202
|
|
||
|
Plug x BSPP Female / 3/8"
C103425204
|
|
||

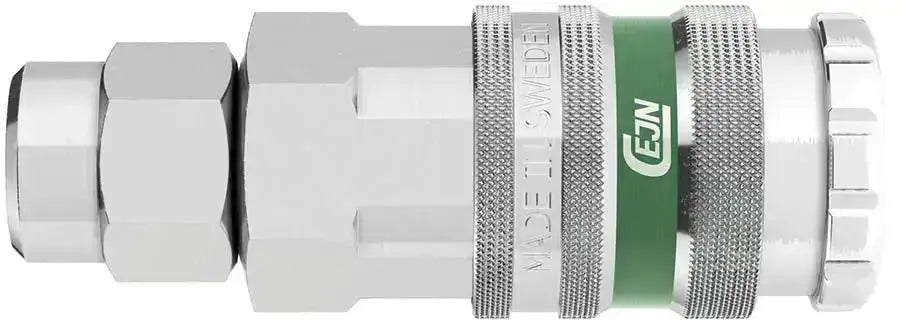

Coupling x Streamline / 6.5MM x 10MM
C103421060
|
|
