Cejn 550 eSafe Coupling
Regular price
$134.00 USD
Delivery Time
General Delivery Time: 2 working days
Delivery times are a guide and are subject to stock availability
Description

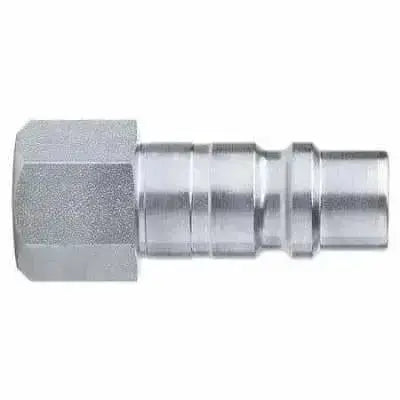

This is a Cejn Series 550 pneumatic quick release coupling, couplings are manufactured from nickel plated brass and the Plugs are manufactured from hardened zinc plated steel. This range has a maximum working pressure of 16 bar with a flow capacity of 4050 l/min. This coupling is valved which is closed when disconnected.
These fittings are designed to be lightweight, with a high flow capacity, small external dimensions and are also suitable for vacuum. The design ensures a fast, easy, one hand operation and extremely efficient.
Specifications
- Nominal flow diameter is 11mm (7/16")
- Flow Capacity is 4050 l/min (143 CFM) measured at 6 bar (87 psi) with a 0.5 bar (7 psi) pressure drop
- Max working pressure 16 bar (232 psi)
- Temperature range -20°C to +100°C (-4°F to +212°F)
These are an equivalent to:
Bulk order
| Variant | Quantity | Price | Total |
|---|---|---|---|

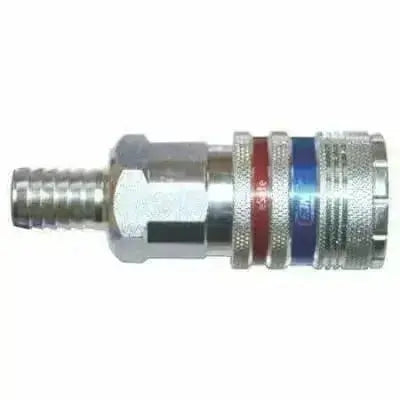

Coupling x Hosetail / 10mm (3/8")
C105502004
|
|
||
|
Coupling x Hosetail / 13mm (1/2")
C105502005
|
|
||
|
Coupling x Hosetail / 19mm (3/4")
C105502007
|
|
||

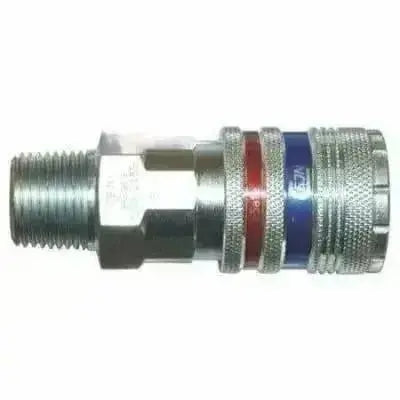

Coupling x BSPT Male / 3/8"
C105502154
|
|
||
|
Coupling x BSPT Male / 1/2"
C105502155
|
|
||
|
Coupling x BSPT Male / 3/4"
C105502157
|
|
||

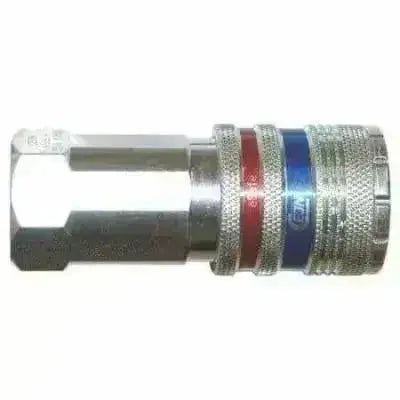

Coupling x BSPP Female / 3/8"
C105502204
|
|
||
|
Coupling x BSPP Female / 1/2"
C105502205
|
|
||
|
Coupling x BSPP Female / 3/4"
C105502207
|
|
||

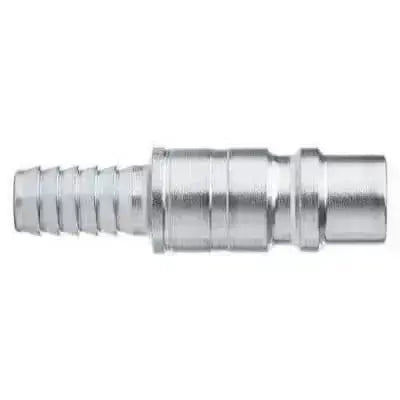

Plug x Hosetail / 10mm (3/8")
C105505004
|
|
||
|
Plug x Hosetail / 13mm (1/2")
C105505005
|
|
||
|
Plug x Hosetail / 19mm (3/4")
C105505007
|
|
||

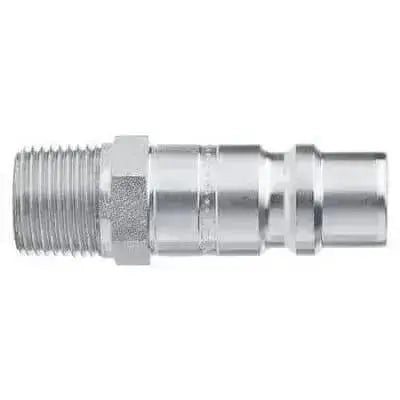

Plug x BSPT Male / 1/4"
C105505152
|
|
||
|
Plug x BSPT Male / 3/8"
C105505154
|
|
||
|
Plug x BSPT Male / 1/2"
C105505155
|
|
||
|
Plug x BSPT Male / 3/4"
C105505157
|
|
||
Plug x BSPP Female / 3/8"
C105505204
|
|
||
|
Plug x BSPP Female / 1/2"
C105505205
|
|
||

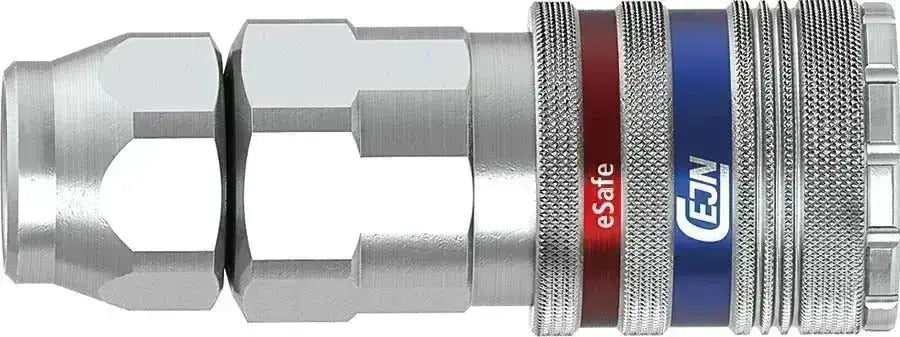

Coupling x Streamline / 11 x 16mm
C105502066
|
|
||
Coupling x Soft-line / 13 x 18mm
C105502088
|
|
||

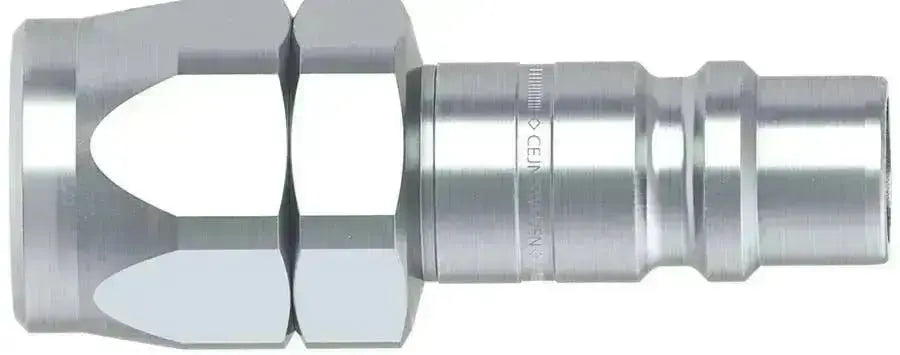

Plug x Streamline / 11 x 16mm
C105505066
|
|
