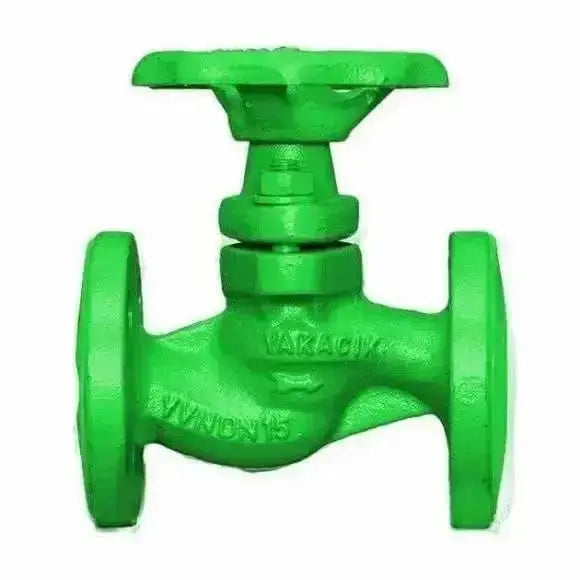

Ductile Iron Piston Valve - PN25 Flanged
Regular price
£185.12 GBP
Delivery Time
General Delivery Time: 3 working weeks
Delivery times are a guide and are subject to stock availability
Description
These Piston Valves are manufactured in Turkey by Yakacik Valf, this model has a ductile iron body (GGG 40), with a 420 stainless steel piston and spindle. These valves are suitable for a maximum steam pressure of 16 bar (204.4°C), with a working temperature of -10°C to +350°C.
The ends are flanged PN25 according to DIN EN 1092-2. The valves conforms to TA Luft (Germany) and EPA (USA).
These valves are suitable for use with all kinds of fluid, such as: water, hot water, high temperature hot water, steam, thermal oil, LPG, fuel oil, pressurised air etc..
Delivery usually 3-4 working days.
Download the datasheet for PN Flanged Piston Valves
These are an equivalent to:
Bulk order
| Variant | Quantity | Price | Total |
|---|---|---|---|
|
1/2" (DN15)
YPG8F1500
|
|
||
|
3/4" (DN20)
YPG8F2000
|
|
||
|
1" (DN25)
YPG8F2500
|
|
||
|
1.1/4" (DN32)
YPG8F3200
|
|
||
|
1.1/2" (DN40)
YPG8F4000
|
|
||
|
2" (DN50)
YPG8F5000
|
|
