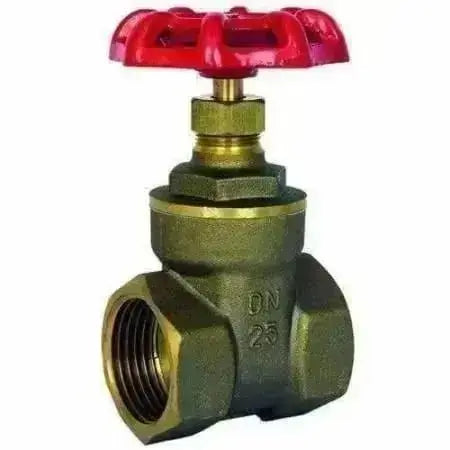

DZR Brass Gate Valve PN20

DZR Brass Gate Valve PN20

Stock Available

  • £8.10
    Unit price per
  • Save £6.36
Shipping calculated at checkout.


Description

These DZR (Dezincification Brass) gate valves are manufactured to conform to BS5154.  The body, wedge, stem and bonnet are manufactured from DZR brass, stem packing is PTFE and handwheel is cast iron.  The female threads are BSPT (ISO 7/1)

These valves have maximum working pressure of 20 bar at 100°C and 5 bar at 180°C.  The working temperature range is -10°C to +180°C in the absence of ice.

Face to Face

  • 1/2" 43mm
  • 3/4" 46mm
  • 1" 52mm
  • 1.1/4" 65mm
  • 1.1/2" 66mm
  • 2" 82.5mm

Equivalent to...

These valves are an equivalent to the following ranges:

  • Crane D151A
  • Hattersley 30
  • TA (IMI) TA64
  • Oventrop 104 30
  • Boss 25SM
  • Jet 51
  • Pegler 1078
  • Herz 4113

Datasheet

Download the datasheet for DZR Brass Gate Valve
