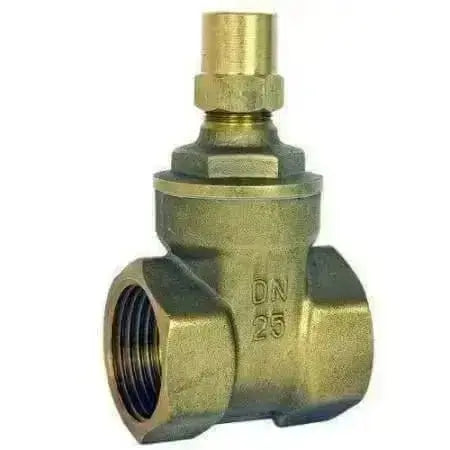

DZR Brass Gate Valve PN20 Lockshield

Description

These DZR (Dezincification Brass) lockshield gate valves are manufactured to conform to BS5154.  The body, wedge, stem and bonnet are manufactured from DZR brass, stem packing is PTFE.  The female threads are BSPT (ISO 7/1)

These valves have maximum working pressure of 20 bar at 100°C and 5 bar at 180°C.  The working temperature range is -10°C to +180°C in the absence of ice.

Face to Face

• 1/2" 43mm
• 3/4" 46mm
• 1" 52mm
• 1.1/4" 65mm
• 1.1/2" 66mm
• 2" 82.5mm

Equivalent to...

This range of valves is an equivalent to the following brands:

• Crane D237A
• Hattersley 30
• TA (IMI) TA64L
• BOSS 25SMLS
• Jet 51LS
• Pegler 1078LS

Datasheet

Download the datasheet for the DZR Brass Gate Valve with Lockshield
