Electric Actuated Lugged Butterfly Valve PN16 - J4CS - WRAS

Electric Actuated Butterfly Valve for Reliable Automated Flow Control

Description

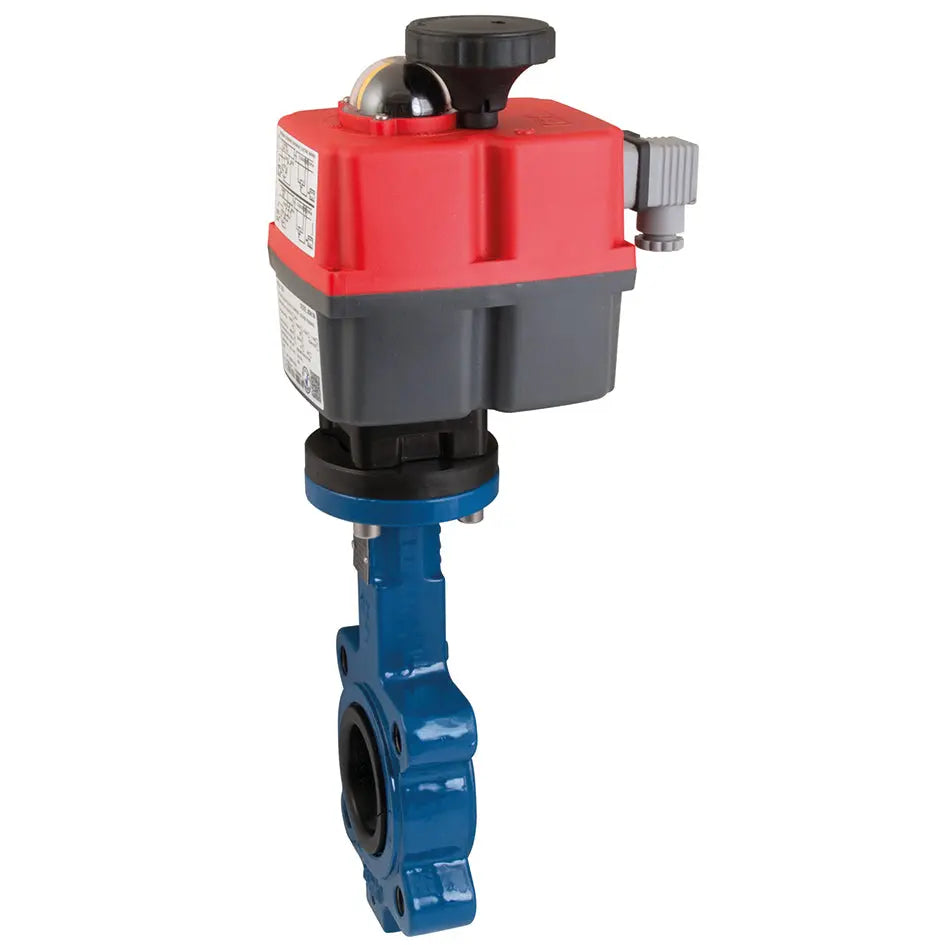

The Valve has a Ductile Iron Body, 316 Stainless Steel Disc and EPDM Liner WRAS approved and is direct mounted to a J+J J4CS Electric Actuator, see accessories for fail safe and/or modulating options.  Available as standard with 24 to 240 V ac/dc, 12V ac/dc on request

Actuator Details

The J4CS range of smart electric actuators have the following standard features:

• Accepts 24-240VDC/ VAC 50/60Hz (-0/+5%) external power range
• IP67 housing
• Manual Override
• Heater
• Limit switches
• Electronic Torque Limiter
• Plug in Failsafe Option
• Plug in Modulating Option
• Plug in Modulating Failsafe Option
• Brushless Motor
• Temperature range -20°C (-4°F) to +70° (158°F)
• Dome local high visibility position indicator
• CE Marked and EU made by ISO9001 manufacturer
• Date coded serial number for warranty purposes

Sizing

All valves are sized based on clean water at 20°C with a 16 bar working pressure

• 1.1/2" to 2.1/2" (DN40-DN65) are fitted with J4CS20
• 3" (DN80) is fitted with J4CS35
• 4" (DN100) is fitted with J4CS55
• 5" (DN125) is fitted with J4CS85
• 6" (DN150) is fitted with J4CS140
• 8" (DN200) is fitted with J4CS300

For other duties, voltages or larger sizes please contact us for a quotation.

Innovative Design and Functionality

The Electric actuated Wafer Butterfly Valve is a state-of-the-art solution for various fluid control applications. It integrates the J+J J4CS Smart electric actuator, which allows for precise control and quick response times. This valve is designed for durability and reliability, and its compact size makes it easy to install in tight spaces. Because it is also WRAS approved, users can trust its quality and compliance with water regulations, ensuring safety in drinking water applications.

Applications Across Industries

This valve is suitable for a wide range of applications, including HVAC systems, wastewater management, and food and beverage processing. Industries require valves that can manage high volumes of liquid effectively, and the Electric actuated Wafer Butterfly Valve excels in these situations. It operates efficiently, reducing energy costs and contributing to lower operational overheads. Therefore, businesses in various sectors benefit significantly from its installation.

Benefits of Electric Actuation

Utilizing electric actuation for the butterfly valve is advantageous because it allows for automated control, which enhances system efficiency. The J4CS actuator provides accurate positioning and minimizes the risk of leaks, improving overall system reliability. Additionally, electric actuation eliminates the need for manual operation, reducing the workload on staff. This means that companies can focus on other essential tasks while ensuring that their fluid control systems operate smoothly.

Engineered for Efficient Water System Control

The Electric Actuated Butterfly Valve is designed to deliver smooth, accurate flow control in demanding water and utility applications. Built with a lugged body and PN16 pressure rating, this valve offers strong mechanical stability and dependable sealing performance. The electric actuator allows remote or automated operation, making it a practical choice for systems that need frequent adjustment or centralized control. With WRAS approval, it is also suitable for potable water use where material safety and compliance are essential. This combination of durability, control, and certification makes it a smart solution for modern pipeline systems.

Durable Construction with Lugged End Connection

The lugged design of this valve supports secure installation and improved maintenance flexibility. Each lugged connection allows the valve to be mounted between flanges and still remain in line, which can simplify service work on connected pipeline sections. The robust construction helps the valve handle pressure changes and daily operation with confidence. Its PN16 rating makes it suitable for a wide range of medium-pressure applications in water treatment, HVAC, and industrial systems. By combining a strong body structure with reliable electric actuation, this valve provides long-term performance while reducing manual labor and improving operational efficiency.

WRAS Approved for Safe Potable Water Applications

WRAS approval is an important feature for projects involving drinking water or public water supply systems. It confirms that the valve materials meet strict standards for water safety and suitability. This makes the Electric Actuated Butterfly Valve a dependable option for installations where compliance cannot be overlooked. The valve is built to support clean, safe, and controlled water flow without compromising system integrity. For engineers, contractors, and facility managers, this approval offers peace of mind and helps simplify specification for regulated projects. It is a practical choice for water networks that require both performance and certified material quality.

Automation Benefits for Modern Facilities

Using an electric actuator brings clear advantages to facilities that need precise and efficient flow management. The actuator can be integrated into control systems for remote switching, process automation, and improved response times. This reduces the need for manual operation and helps maintain stable system performance. The Electric Actuated Butterfly Valve is especially useful in applications where accessibility is limited or where frequent valve movement is required. With dependable actuation and a proven valve design, it supports safer operation, better process control, and lower maintenance effort. It is a strong solution for modern buildings, water plants, and industrial networks that value automation.
