Gunmetal Safety Valve WRAS Approved
Regular price
£227.00 GBP
Regular price
£356.97 GBP
Sale price
£227.00 GBP
Delivery Time
General Delivery Time: 2 working days
Delivery times are a guide and are subject to stock availability
Description

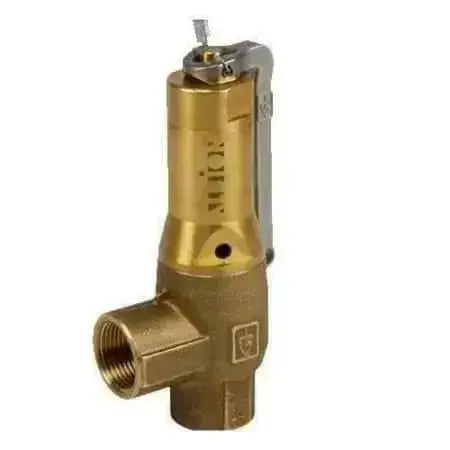

This safety valve is manufactured from gunmetal with EPDM diaphragm and PTFE seat-seal. This valve is WRAS approved and conforms to ISO 4126-1, PED 2014/68/EU, Marine Approval GL and DNV. The Inlet and Outlet are screw BSP (ISO228). This valve can be set between 0.5 and 16 bar (this is normal 10% above the normal working pressure), maximum working temperature is between -50°C and +195°C
We have listed the popular setting ranges, if you need another set range please advise.
Allow 2 days for setting, test certificates on request. (subject to stock availability)
Typical Apllications
This valve is suitable for use with potable water, please check for other duties.
These are an equivalent to:
BOSS 960, Jet 806, Nabic 542
Bulk order
| Variant | Quantity | Price | Total |
|---|---|---|---|
|
1/2" (DN15) / 2.5 Bar
ASAF642050S2.5B
|
|
||
|
1/2" (DN15) / 3.0 Bar
ASAF642050S3.0B
|
|
||
|
1/2" (DN15) / 3.5 Bar
ASAF642050S3.5B
|
|
||
|
1/2" (DN15) / 4.0 Bar
ASAF642050S4.0B
|
|
||
|
1/2" (DN15) / 4.5 Bar
ASAF642050S4.5B
|
|
||
|
1/2" (DN15) / 5.0 Bar
ASAF642050S5.0B
|
|
||
|
1/2" (DN15) / 6.0 Bar
ASAF642050S6.0B
|
|
||
|
3/4" (DN20) / 2.5 Bar
ASAF642075S2.5B
|
|
||
|
3/4" (DN20) / 3.0 Bar
ASAF642075S3.0B
|
|
||
|
3/4" (DN20) / 3.5 Bar
ASAF642075S3.5B
|
|
||
|
3/4" (DN20) / 4.0 Bar
ASAF642075S4.0B
|
|
||
|
3/4" (DN20) / 4.5 Bar
ASAF642075S4.5B
|
|
||
|
3/4" (DN20) / 5.0 Bar
ASAF642075S5.0B
|
|
||
|
3/4" (DN20) / 6.0 Bar
ASAF642075S6.0B
|
|
||
|
1" (DN25) / 2.5 Bar
ASAF642100S2.5B
|
|
||
|
1" (DN25) / 3.0 Bar
ASAF642100S3.0B
|
|
||
|
1" (DN25) / 3.5 Bar
ASAF642100S3.5B
|
|
||
|
1" (DN25) / 4.0 Bar
ASAF642100S4.0B
|
|
||
|
1" (DN25) / 4.5 Bar
ASAF642100S4.5B
|
|
||
|
1" (DN25) / 5.0 Bar
ASAF642100S5.0B
|
|
||
|
1" (DN25) / 6.0 Bar
ASAF642100S6.0B
|
|
||
|
1.1/4" (DN32) / 2.5 Bar
ASAF642125S2.5B
|
|
||
|
1.1/4" (DN32) / 3.0 Bar
ASAF642125S3.0B
|
|
||
|
1.1/4" (DN32) / 3.5 Bar
ASAF642125S3.5B
|
|
