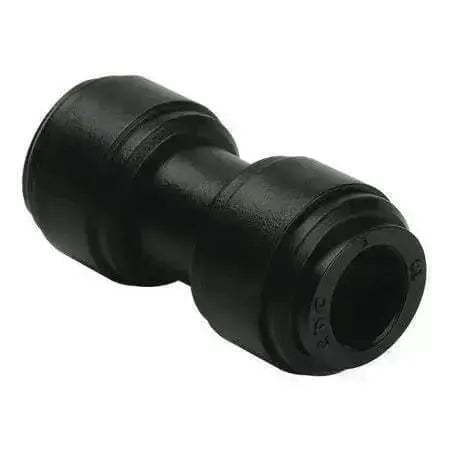

HUC - Equal Straight Union - Fluidfit
Couldn't load pickup availability
These fluidfit straight connector are design for use with water, food and air, but can also be used with select gases, vacuum and liquids.
These fittings are suitable for use with:
- Compressed air
- Gases and liquids suitable with construction materials.
The easy action of these fittings allow the tube to be connected and released rapidly which saves time and installation costs.
These fittings are manufactured from NSF and ACS approved non-toxic materials. These fittings are also WRAS approved suitable for drinking water.
The fittings are designed to be used with the following tubes:
- Mild Steel
The fittings have the body and cover manufactured form POM, Gripping Collet form POM + STS301 and EPDM O-Rings.
These fittings are suitable for 20 bar (16 bar for 10mm/14 bar for 12mm) working pressure at 25°C, with a maximum temperature of 98°C at 10bar (6 bar for 12mm)
