Description

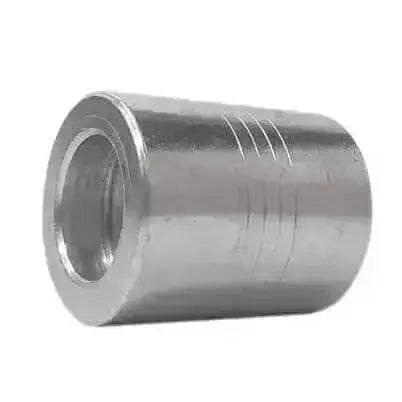

These branded 001C ferrule for hydraulic hose are used to hold the hose insert in place when swaged (crimped). These ferrules are for use with the 1SN and 2SC hydraulic hose.
The recommended swage dimension for the ferrules are 1SN 1/4" 15.9mm, 3/8" 20.4mm, 1/2" 23.4mm, 3/4" 31mm, 1" 38.8mm. for 2SC 1/4" 15.5mm, 3/8" 20.4mm, 1/2" 23.2mm, 3/4" 30.7mm, 1" 38.6mm.
