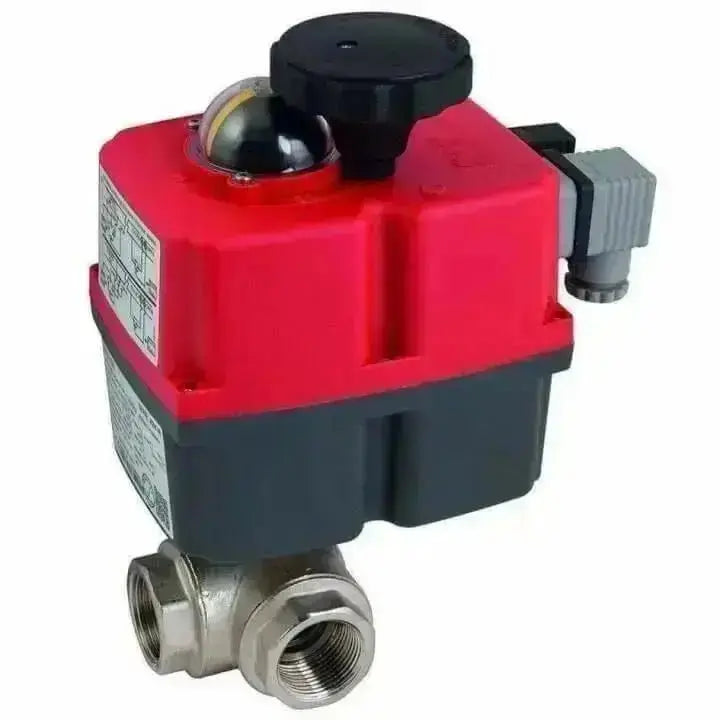

Actuated Brass 3 Way L Port Ball Valve fitted with J+J J4CS Electric Actuator
Description
Brass nickel plated full bore 3 Way L Port direct mount ball valve, BSP female threads, PTFE seats, NBR o-rings rated 40 bar upto 1.1/4" and 25 bar 1.1/2" to 2". Fitted with a J+J J4CS Electric Actuator Multi Voltage 24-240V AC/DC. Working Temperature -20°C to 80°C. Choose versatility and performance with the Actuated Brass 3 Way L Port Ball Valve fitted with J+J J4CS Electric Actuator. With its multi-voltage capabilities and high pressure ratings, this valve is perfect for a wide range of applications and environments, from extreme cold to high pressure situations. Trust in its durable materials, such as brass nickel plating and PTFE seats, and its reliable NBR o-rings to withstand the toughest conditions. Whether you need precise control or reliable shut-off, this valve has you covered. Assembly prices are based on 15 bar/20°C Clean Water.
Bulk order
| Variant | Quantity | Price | Total |
|---|---|---|---|
|
1/4" (DN8)
AKJJ107102
|
|
||
|
3/8" (DN10)
AKJJ107103
|
|
||
|
1/2" (DN15)
AKJJ107104
|
|
||
|
3/4" (DN20)
AKJJ107105
|
|
||
|
1" (DN25)
AKJJ107106
|
|
||
|
1.1/4" (DN32)
AKJJ107107
|
|
||
|
1.1/2" (DN40)
AKJJ107108
|
|
||
|
2" (DN50)
AKJJ107109
|
|
Product subtotal
