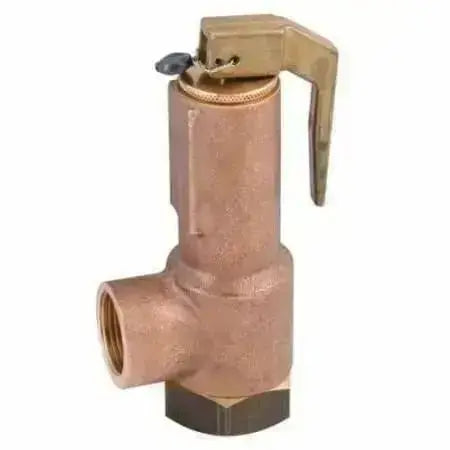

Safety Relief Valve with Lever, Bronze Body
Regular price
£166.55 GBP
Regular price
£222.67 GBP
Sale price
£166.55 GBP
Delivery Time
General Delivery Time: 2 working days
Delivery times are a guide and are subject to stock availability
LGS Safety Relief Valve with Lever: Efficient Pressure Management
Description
The LGS safety relief valve is design for use with liquid, gas and steam applications.
With a bronze body, dzr brass wetted parts, stainless steel spring, spindle and seal retainer.
The valves are manufactured in the UK and are WRAS approved, and are CE marked for PED category 4, modules B and D in accordance with BS EN ISO 4126.
We have selected some of the common set pressures, but if you require a different setting contact sales or leave a note in the checkout process
Features
• Bronze body with dezincification resistant brass wetted parts; stainless steel spring, spindle and seal retainer
• Size range DN15 to DN65 (½” BSP to 2½ ” BSP)
• Pressure Range: 0.2 to 24 bar g. (steam up to 14 bar g. with PTFE seals, contact Seetru for information on other seals)
• Temperature Range: -60°C to +200°C (with PTFE seals (EPDM -45°C to +140°C)
• Degrease for oxygen available on request
• PTFE or EPDM sealing as standard (other seal materials available upon request)
• Easy to fit spares kit
• Self-draining design
• Adaptors available to give male connections
• Open Lever or Sealed Cap
• Designed in accordance with the requirements of BS EN ISO 4126 Part 1 and CE marked as a Category IV Safety Accessory
• WRAS approved
• Supplied with Declaration of conformity, EN 10204 3.1 material certification available on request
• Test certificate supplied free of charge
Applications
The LGS Safety Relief Valves is suitable for the following applications:
• Hot water, including boilers (vented and unvented)
• Steam boilers and steam plants
• Pump and thermal relief
• Bypass relief
• Process liquids and gases
• Pressure vessels and lines
• Heating and cooling systems
• Heat exchangers and industrial cooling systems
• Refrigeration systems
• Pressure booster systems
• Solar power systems
• District heating systems
• Water supply systems
• Sewage systems
• Pressure control and regulation
• Chemical plants
• District heating systems
• Ship building and marine applications
Datasheet
Download the LGS Safety Relief Valve Datasheet
Introduction to the LGS Safety Relief Valve with Lever
The LGS Safety Relief Valve with Lever
is designed to ensure efficient pressure management in various industrial applications. This valve provides a reliable solution to prevent excessive pressure buildup, thereby safeguarding equipment and operations. Its lever mechanism allows for easy manual operation, which is vital for quick adjustments in critical situations, ensuring that safety remains a top priority.
Features and Benefits
The LGS Safety Relief Valve is built with robust materials that withstand harsh environments, so it effectively handles high pressure and extreme conditions. Additionally, the valve has adjustable settings, which allows operators to customize it according to specific system requirements. This flexibility is key because it enhances performance while minimizing potential damage or failure due to overpressure, thus prolonging the lifespan of your equipment.
Applications in Industry
This valve is widely used in various sectors, including manufacturing, oil and gas, and chemical processing. Because these industries require stringent safety measures, the LGS Safety Relief Valve with Lever is a critical component in maintaining operational integrity. By integrating this valve into your systems, you ensure compliance with safety regulations, thus protecting both personnel and equipment from hazards associated with pressure fluctuations.
These are an equivalent to:
Bulk order
| Variant | Quantity | Price | Total |
|---|---|---|---|
|
1/2" / 0.5 bar
L3615A3277-0.5
|
|
||
|
1/2" / 1.0 bar
L3615A3277-1.0
|
|
||
|
1/2" / 1.5 bar
L3615A3277-1.5
|
|
||
|
1/2" / 2.0 bar
L3615A3277-2.0
|
|
||
|
1/2" / 2.5 bar
L3615A3277-2.5
|
|
||
|
1/2" / 3.0 bar
L3615A3277-3.0
|
|
||
|
1/2" / 3.5 bar
L3615A3277-3.5
|
|
||
|
1/2" / 4.0 bar
L3615A3277-4.0
|
|
||
|
1/2" / 4.5 bar
L3615A3277-4.5
|
|
||
|
1/2" / 5.0 bar
L3615A3277-5.0
|
|
||
|
1/2" / 6.0 bar
L3615A3277-6.0
|
|
||
|
1/2" / 8.0 bar
L3615A3277-8.0
|
|
||
|
3/4" / 0.5 bar
L3620A3307-0.5
|
|
||
|
3/4" / 1.0 bar
L3620A3307-1.0
|
|
||
|
3/4" / 1.5 bar
L3620A3307-1.5
|
|
||
|
3/4" / 2.0 bar
L3620A3307-2.0
|
|
||
|
3/4" / 2.5 bar
L3620A3307-2.5
|
|
||
|
3/4" / 3.0 bar
L3620A3307-3.0
|
|
||
|
3/4" / 3.5 bar
L3620A3307-3.5
|
|
||
|
3/4" / 4.0 bar
L3620A3307-4.0
|
|
||
|
3/4" / 4.5 bar
L3620A3307-4.5
|
|
||
|
3/4" / 5.0 bar
L3620A3307-5.0
|
|
||
|
3/4" / 6.0 bar
L3620A3307-6.0
|
|
||
|
3/4" / 8.0 bar
L3620A3307-8.0
|
|
