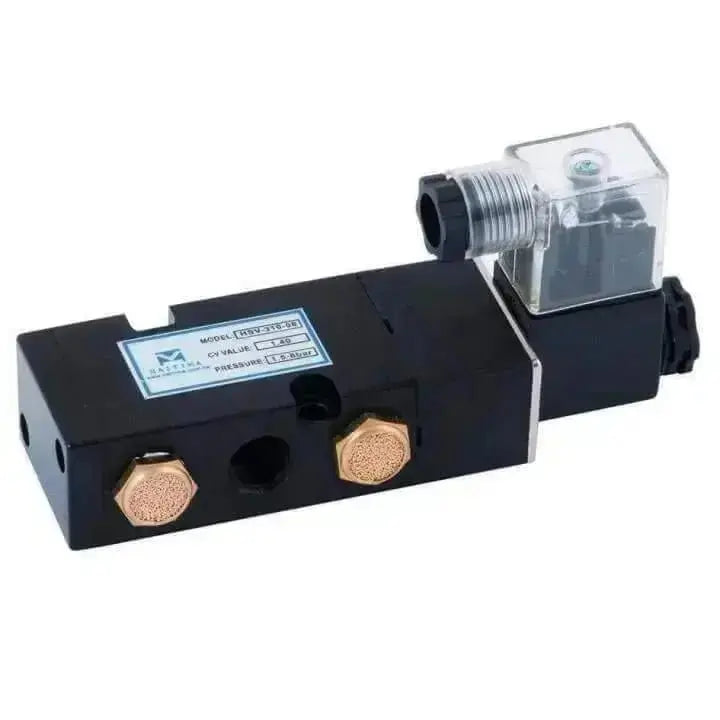

NAMUR Mount 5/2 Solenoid Valve
Used to control the pilot air, this valve changes the port the air is connected to when power is supplied to the coil, and springs back when power is removed. This is suitable for single acting or double acting pneumatic actuators, 5 port 2 position, manual override, NAMUR standard interface to direct mount on to actuators, 1/4" BSP inlet and exhaust ports, insulation class F, IP65 rated. Max frequency is 5 cycles per second. Suitable for temperatures between -5°C to 60°C, with a maximum air pressure of 8 bar.
