Delivery Time
General Delivery Time: 2 working days

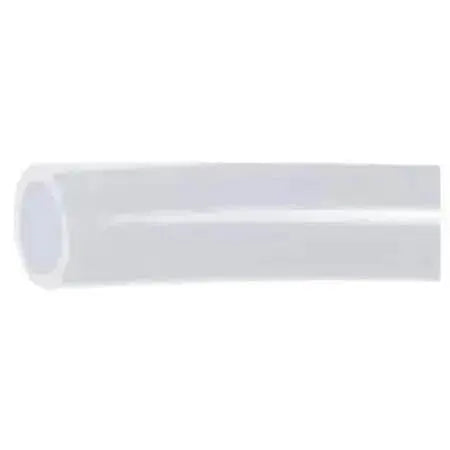

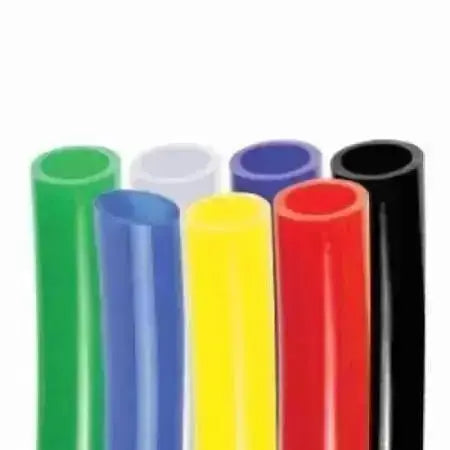

Nylon Tubing
Regular price
£33.10 GBP
Delivery times are a guide and are subject to stock availability
Description
This nylon tubing is suitable for use with compressed air, water, chemicals and fuel/oil. This tubing is produced to exacting tolerances, silicone free, seamless construction with mirror smooth inner layer for improved flow, resistant to a wide range of chemicals, excellent abrasion resistance, low moisture absorption lightweight and flexible for easy installation. Designed to BS 5409 Part 1:1976
Nylon Tubing has a working temperature of -20°C to +80°C, see next tabs for working pressure information.
Supplied in 30 metre coils.
Working Pressures
Working pressure values are given based on 4:1 safety factor at 20°C, and will change as the working temperature rises.
- 4mm x 2.5mm 26 bar
- 6mm x 4mm 24 bar
- 8mm x 5.5mm 22 bar
- 8mm x 6mm 17 bar
- 10mm x 8mm 17 bar
- 12mm x 9mm 21 bar
- 12mm x 10mm 14 bar
These are an equivalent to:
Bulk order
| Variant | Quantity | Price | Total |
|---|---|---|---|
|
4mm x 2.5mm / Natural
PNFM4/25
|
|
||
|
4mm x 2.5mm / Red
PNFM4/25R
|
|
||
|
4mm x 2.5mm / Blue
PNFM4/25B
|
|
||
|
4mm x 2.5mm / Yellow
PNFM4/25Y
|
|
||
|
4mm x 2.5mm / Green
PNFM4/25G
|
|
||
|
4mm x 2.5mm / Black
PNFM4/25BK
|
|
||
|
6mm x 4mm / Natural
PNFM6/4
|
|
||
|
6mm x 4mm / Red
PNFM6/4R
|
|
||
|

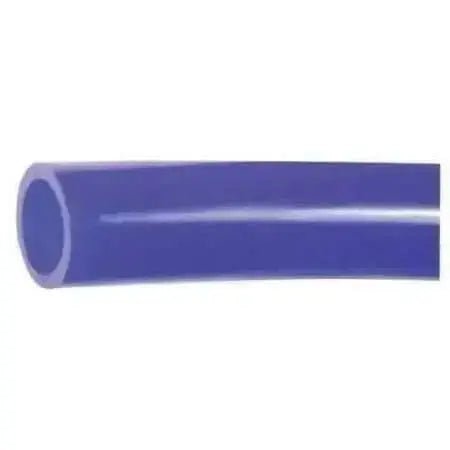

6mm x 4mm / Blue
PNFM6/4B
|
|
||
|
6mm x 4mm / Yellow
PNFM6/4Y
|
|
||
|

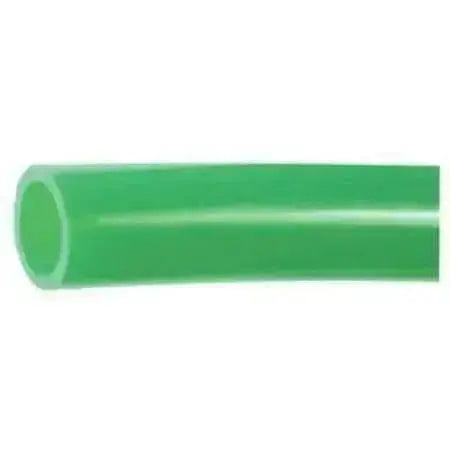

6mm x 4mm / Green
PNFM6/4G
|
|
||
|

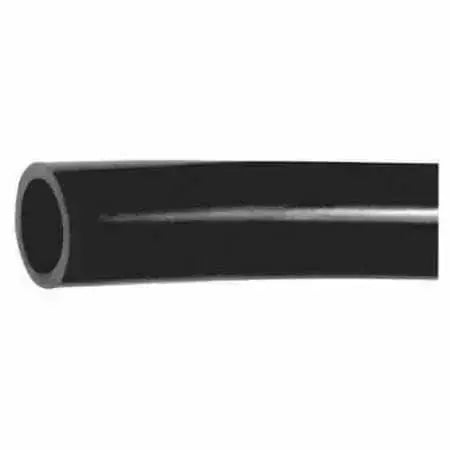

6mm x 4mm / Black
PNFM6/4BK
|
|
||
|
8mm x 6mm / Natural
PNFM8/6
|
|
||
|
8mm x 6mm / Red
PNFM8/6R
|
|
||
|
8mm x 6mm / Blue
PNFM8/6B
|
|
||
|
8mm x 6mm / Yellow
PNFM8/6Y
|
|
||
|
8mm x 6mm / Green
PNFM8/6G
|
|
||
|
8mm x 6mm / Black
PNFM8/6BK
|
|
||
|
8mm x 5.5mm / Natural
PNFM8/55
|
|
||
|
8mm x 5.5mm / Red
PNFM8/55R
|
|
||
|
8mm x 5.5mm / Blue
PNFM8/55B
|
|
||
|
8mm x 5.5mm / Yellow
PNFM8/55Y
|
|
||
|
8mm x 5.5mm / Green
PNFM8/55G
|
|
||
|
8mm x 5.5mm / Black
PNFM8/55BK
|
|
