CP17 Quick Connect Couplings
Regular price
$17.00 USD
Regular price
$25.00 USD
Sale price
$17.00 USD
Delivery Time
General Delivery Time: 2 working days
Delivery times are a guide and are subject to stock availability
Description
This is a CP17 pneumatic quick release coupling, couplings and Plugs are manufactured from nickel plated steel. These couplings are design to interchange with the Schrader Standard Couplings. This range has a maximum working pressure of 35 bar with a flow capacity of 870 l/min. This coupling is valved which is closed when disconnected.
Specifications
- Nominal flow diameter is 5mm (3/16")
- Flow Capacity is 870 l/min (30.7 CFM) measured at 6 bar (87 psi) with a 0.5 bar (7 psi) pressure drop
- Max working pressure 35 bar (507 psi)
- Temperature range -20°C to +100°C (-4°F to +212°F)
These are an equivalent to:
Bulk order
| Variant | Quantity | Price | Total |
|---|---|---|---|

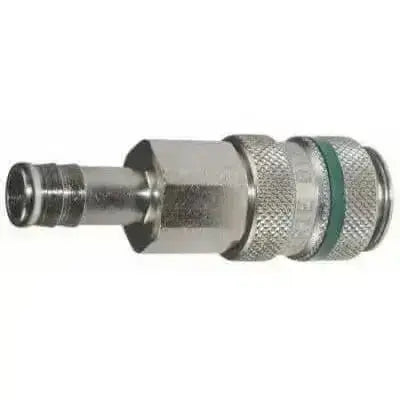

Coupling x Hosetail / 6mm (1/4")
CP17-1002
|
|
||
|
Coupling x Hosetail / 8mm (5/16")
CP17-1003
|
|
||
|
Coupling x Hosetail / 10mm (3/8")
CP17-1004
|
|
||
|
Coupling x Hosetail / 13mm (1/2")
CP17-1005
|
|
||

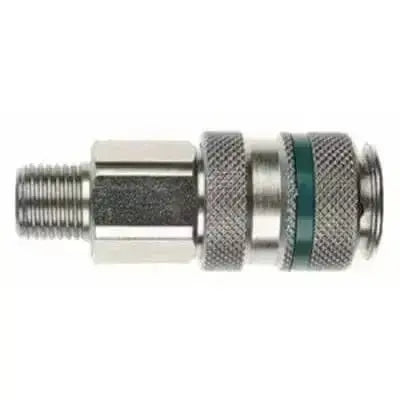

Coupling x BSPT Male / 1/4"
CP17-1152
|
|
||
|
Coupling x BSPT Male / 3/8"
CP17-1154
|
|
||
|
Coupling x BSPT Male / 1/2"
CP17-1155
|
|
||

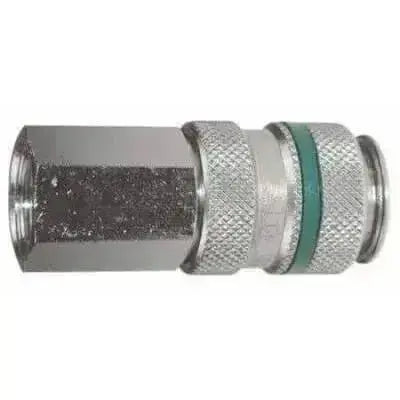

Coupling x BSPP Female / 1/4"
CP17-1202
|
|
||
|
Coupling x BSPP Female / 3/8"
CP17-1204
|
|
||
|
Coupling x BSPP Female / 1/2"
CP17-1205
|
|
||

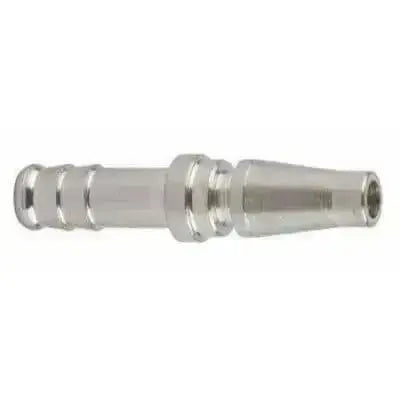

Plug x Hosetail / 6mm (1/4")
CP17-5002
|
|
||
|
Plug x Hosetail / 8mm (5/16")
CP17-5003
|
|
||
|
Plug x Hosetail / 10mm (3/8")
CP17-5004
|
|
||

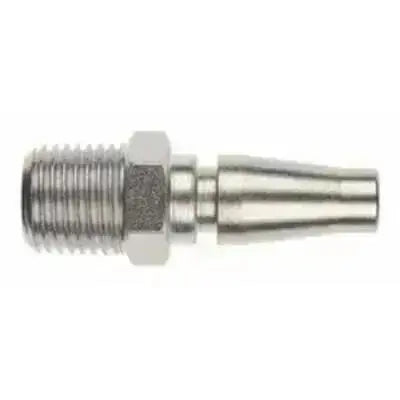

Plug x BSPT Male / 1/4"
CP17-5152
|
|
||
|
Plug x BSPT Male / 3/8"
CP17-5154
|
|
||

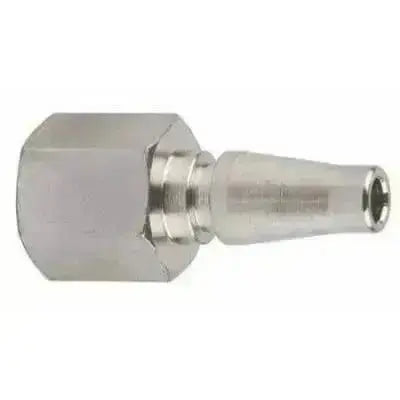

Plug x BSPP Female / 1/4"
CP17-5202
|
|
||
|
Plug x BSPP Female / 3/8"
CP17-5204
|
|
||
|
Plug x BSPP Female / 1/2"
CP17-5205
|
|
||

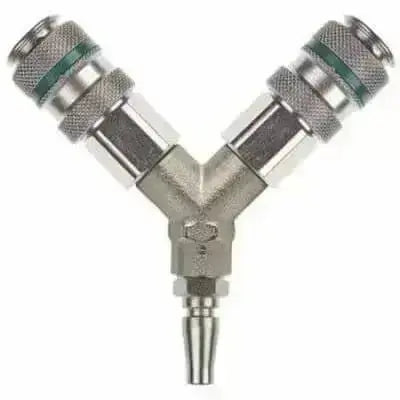

Twin Coupling Assembly / NA
CP17-Y
|
|
