CP21 Quick Connect Couplings Colour Coded
Regular price
$53.00 USD
Regular price
$58.00 USD
Sale price
$53.00 USD
Delivery Time
General Delivery Time: 2 working days
Delivery times are a guide and are subject to stock availability
Description
This is a CP21 pneumatic quick release coupling, couplings and Plugs are manufactured from nickel plated brass. These couplings are design to interchange with the same colour to prevent incorrect connection that can lead to injuries or damge to the process. This range has a maximum working pressure of 30 bar with a flow capacity of 560 l/min. This coupling is valved which is closed when disconnected.
Specifications
- Nominal flow diameter is 5mm (3/16")
- Flow Capacity is 560 l/min (19.4 CFM) measured at 6 bar (87 psi) with a 0.5 bar (7 psi) pressure drop
- Max working pressure 30 bar (435 psi)
- Temperature range -20°C to +100°C (-4°F to +212°F)
These are an equivalent to:
Bulk order
| Variant | Quantity | Price | Total |
|---|---|---|---|

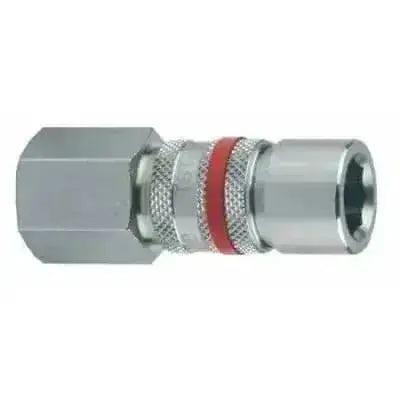

Coupling x BSPP Female / 1/4" / Green
CP21-DG013N
|
|
||
|
Coupling x BSPP Female / 1/4" / Brown
CP21-DG313N
|
|
||
|
Coupling x BSPP Female / 1/4" / Blue
CP21-DG613N
|
|
||
|
Coupling x BSPP Female / 1/4" / Red
CP21-DG813N
|
|
||

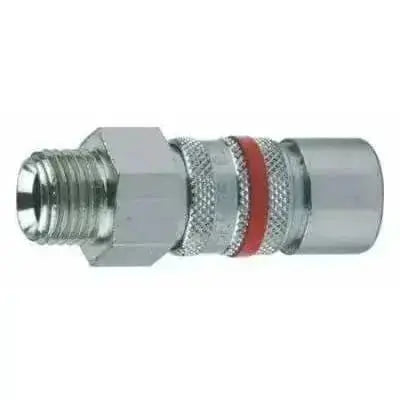

Coupling x BSPP Male / 1/8" / Green
CP21-EG010N
|
|
||
|
Coupling x BSPP Male / 1/8" / Red
CP21-EG810N
|
|
||

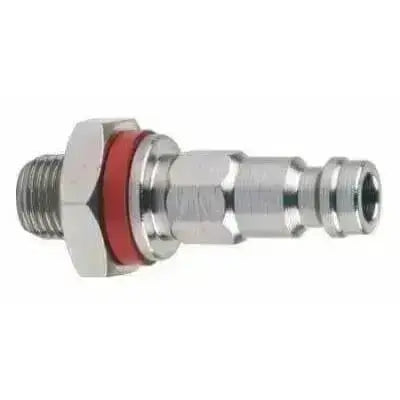

Plug x BSPP Male / 1/8" / Green
CP21-EU010N
|
|
||
|
Plug x BSPP Male / 1/4" / Green
CP21-EU013N
|
|
||
|
Plug x BSPP Male / 1/4" / Brown
CP21-EU313N
|
|
||
|
Plug x BSPP Male / 1/4" / Blue
CP21-EU613N
|
|
||
|
Plug x BSPP Male / 1/8" / Red
CP21-EU810N
|
|
