Prisma Actuated 2 Piece Stainless Steel Ball Valve Single Acting Actuator
Regular price
£211.51 GBP
Regular price
£291.89 GBP
Sale price
£211.51 GBP
Delivery Time
General Delivery Time: 2 working days
Delivery times are a guide and are subject to stock availability
Description

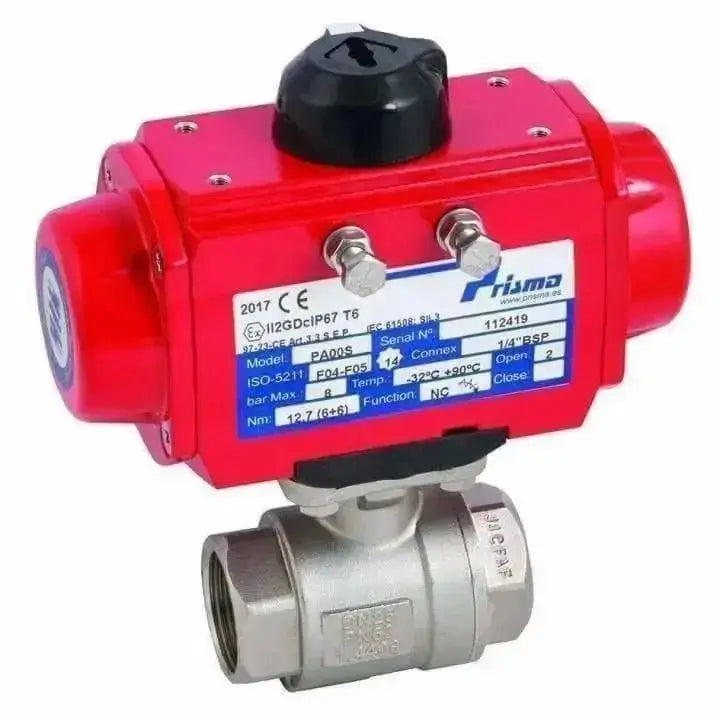

2 Piece stainless steel full bore direct mount ball valve, BSP female threads, RTFE carbon graphite filled seats, PTFE o-rings rated 63 bar, ATEX compliant. Fitted with a Prisma Single Acting Actuator, Rilsan Coated Aluminium Body, NBR Seals, ATEX EXII2GDcT certification. 1/4" BSP threaded air connectionc, with NAMUR interface for solenoid valves, VDI/VDE 3845 norms for the mounting of accessories. Working Temperature -20°C to 80°C. Assembly prices are based on 15 bar/20°C Clean Water with 6 bar pilot air pressure.
These are an equivalent to:
Bulk order
| Variant | Quantity | Price | Total |
|---|---|---|---|
|
1/4" (DN8) / No / No
AKPSA2006SD02
|
|
||
|
1/4" (DN8) / 24VDC / No
AKPSA2006SD0224D
|
|
||
|
1/4" (DN8) / 230VAC / No
AKPSA2006SD02230
|
|
||
|
1/4" (DN8) / 110VAC / No
AKPSA2006SD02110
|
|
||
|
1/4" (DN8) / 24VAC / No
AKPSA2006SD0224V
|
|
||
|
1/4" (DN8) / No / Yes
AKPSA2006SD02SB
|
|
||
|
1/4" (DN8) / 24VDC / Yes
AKPSA2006SD02SB24D
|
|
||
|
1/4" (DN8) / 230VAC / Yes
AKPSA2006SD02SB230
|
|
||
|
1/4" (DN8) / 110VAC / Yes
AKPSA2006SD02SB110
|
|
||
|
1/4" (DN8) / 24VAC / Yes
AKPSA2006SD02SB24A
|
|
||
|
3/8" (DN10) / No / No
AKPSA2006SD03
|
|
||
|
3/8" (DN10) / 24VDC / No
AKPSA2006SD0324D
|
|
||
|
3/8" (DN10) / 230VAC / No
AKPSA2006SD03230
|
|
||
|
3/8" (DN10) / 110VAC / No
AKPSA2006SD03110
|
|
||
|
3/8" (DN10) / 24VAC / No
AKPSA2006SD0324V
|
|
||
|
3/8" (DN10) / No / Yes
AKPSA2006SD03SB
|
|
||
|
3/8" (DN10) / 24VDC / Yes
AKPSA2006SD03SB24D
|
|
||
|
3/8" (DN10) / 230VAC / Yes
AKPSA2006SD03SB230
|
|
||
|
3/8" (DN10) / 110VAC / Yes
AKPSA2006SD03SB110
|
|
||
|
3/8" (DN10) / 24VAC / Yes
AKPSA2006SD03SB24A
|
|
||
|
1/2" (DN15) / No / No
AKPSA2006SD04
|
|
||
|
1/2" (DN15) / 24VDC / No
AKPSA2006SD0424D
|
|
||
|
1/2" (DN15) / 230VAC / No
AKPSA2006SD04230
|
|
||
|
1/2" (DN15) / 110VAC / No
AKPSA2006SD04110
|
|
