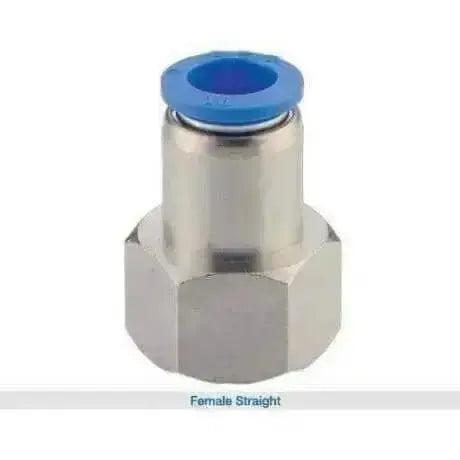

Pushin Female Straight Connector

SKU: CDPCF04G01
Size
£2.64 GBP

Delivery times are a guide and are subject to stock availability

Pushin Female Straight Connector – Brass Push-in Fitting with BSPP Female Thread

These female straight push-in connectors — also known as female stud connectors — combine a BSPP female threaded port with a push-in tube connection. They are used to connect pneumatic tubing to male-threaded ports on equipment such as cylinders, valves, and fittings where a female thread is required.

Materials & Construction

  • Body: Brass
  • O-rings: NBR (nitrile rubber)
  • Collar: Brass
  • Release sleeve: POM (acetal/Delrin)
  • Lock claw: Stainless steel
  • Thread type: BSPP (parallel) with O-ring seal as standard

Specifications

  • Tube sizes: 4mm, 6mm, 8mm, 10mm, 12mm
  • Thread options: 1/8", 1/4", 3/8", 1/2" BSPP
  • Working pressure: 150 psi (10.2 bar)
  • Vacuum rating: -29.5 in Hg (-750 mmHg)
  • Working temperature: 0°C to +60°C
  • Media: Compressed air only (not suitable for other gases or liquids)

Compatible Tubing

Suitable for nylon (PA) tube and polyurethane (PU) tubing.

Typical Applications

  • Connecting tubing to male-threaded ports on pneumatic cylinders and valves
  • Inline connections in compressed air distribution systems
  • Pneumatic automation, food processing equipment, and packaging machinery
These are an equivalent to:

Bulk order

Variant Quantity Price Total
4mm x 1/8" BSPP CDPCF04G01
£2.64 GBP
£0.00
£2.64 GBP
£0.00
4mm x 1/4" BSPP CDPCF04G02
£2.80 GBP
£0.00
£2.80 GBP
£0.00
6mm x 1/8" BSPP CDPCF06G01
£2.84 GBP
£0.00
£2.84 GBP
£0.00
6mm x 1/4" BSPP CDPCF06G02
£3.08 GBP
£0.00
£3.08 GBP
£0.00
6mm x 3/8" BSPP CDPCF06G03
£3.50 GBP
£0.00
£3.50 GBP
£0.00
8mm x 1/8" BSPP CDPCF08G01
£3.69 GBP
£0.00
£3.69 GBP
£0.00
8mm x 1/4" BSPP CDPCF08G02
£4.86 GBP
£0.00
£4.86 GBP
£0.00
8mm x 3/8" BSPP CDPCF08G03
£4.88 GBP
£0.00
£4.88 GBP
£0.00
8mm x 1/2" BSPP CDPCF08G04
£5.42 GBP
£0.00
£5.42 GBP
£0.00
10mm x 1/8" BSPP CDPCF10G01
£4.08 GBP
£0.00
£4.08 GBP
£0.00
10mm x 1/4" BSPP CDPCF10G02
£4.08 GBP
£0.00
£4.08 GBP
£0.00
10mm x 3/8" BSPP CDPCF10G03
£5.14 GBP
£0.00
£5.14 GBP
£0.00
10mm x 1/2" BSPP CDPCF10G04
£5.55 GBP
£0.00
£5.55 GBP
£0.00
12mm x 1/4" BSPP CDPCF12G02
£5.48 GBP
£0.00
£5.48 GBP
£0.00
12mm x 3/8" BSPP CDPCF12G03
£5.67 GBP
£0.00
£5.67 GBP
£0.00
12mm x 1/2" BSPP CDPCF12G04
£6.68 GBP
£0.00
£6.68 GBP
£0.00
