Pushin Male Elbow Connector
Regular price
£2.36 GBP
Delivery times are a guide and are subject to stock availability

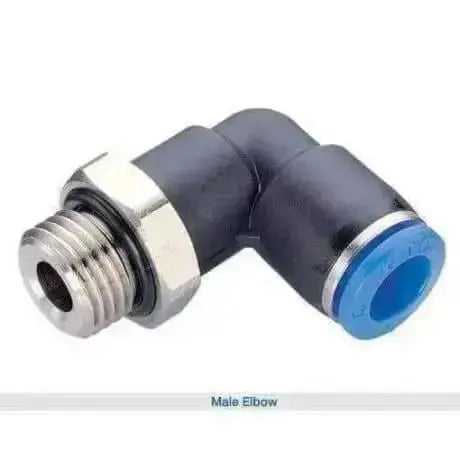

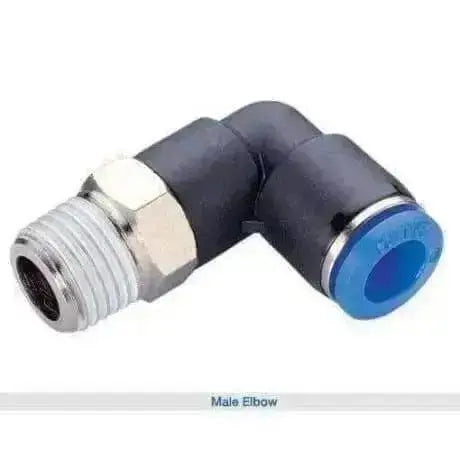

Pushin Male Elbow Connector – 90° Brass Push-in Fitting with Male Thread
These 90° male elbow push-in connectors — also known as male stud elbows — allow pneumatic tubing to exit at a right angle from a threaded port. The elbow configuration is ideal where space is restricted or where tubing needs to be routed away from equipment without sharp bends that could restrict airflow.
Materials & Construction
- Body: Brass
- O-rings: NBR (nitrile rubber)
- Collar: Brass
- Release sleeve: POM (acetal/Delrin)
- Lock claw: Stainless steel
- BSPT variants: Teflon-coated thread
- BSPP variants: O-ring face seal
Specifications
- Tube sizes: 4mm, 6mm, 8mm, 10mm, 12mm
- Thread options: 1/8", 1/4", 3/8", 1/2" BSPT; 1/8", 1/4", 3/8", 1/2" BSPP; M5; M6
- Elbow angle: 90°
- Working pressure: 150 psi (10.2 bar)
- Vacuum rating: -29.5 in Hg (-750 mmHg)
- Working temperature: 0°C to +60°C
- Media: Compressed air only (not suitable for other gases or liquids)
Compatible Tubing
Suitable for nylon (PA) tube and polyurethane (PU) tubing.
Typical Applications
- Routing tubing at 90° from valve ports and cylinder end caps
- Space-saving connections in compact pneumatic panels
- Connecting actuators where straight connectors would cause tubing to kink
- Pneumatic control cabinets, robotic arms, and conveyor systems
These are an equivalent to:
Bulk order
| Variant | Quantity | Price | Total |
|---|---|---|---|
|
4mm x 1/8" BSPT
CDPL0401N
|
|
||
|
4mm x 1/4" BSPT
CDPL0402N
|
|
||
|
4mm x 1/8" BSPP
CDPL04G01
|
|
||
|
4mm x 1/4" BSPP
CDPL04G02
|
|
||
|
4mm x M5
CDPL04M5N
|
|
||
|
4mm x M6
CDPL04M6N
|
|
||
|
6mm x 1/8" BSPT
CDPL0601N
|
|
||
|
6mm x 1/4" BSPT
CDPL0602N
|
|
||
|
6mm x 3/8" BSPT
CDPL0603N
|
|
||
|
6mm x 1/2" BSPT
CDPL0604N
|
|
||
|
6mm x 1/8" BSPP
CDPL06G01
|
|
||
|
6mm x 1/4" BSPP
CDPL06G02
|
|
||
|
6mm x 3/8" BSPP
CDPL06G03
|
|
||
|
6mm x M6
CDPL06M6N
|
|
||
|
8mm x 1/8" BSPT
CDPL0801N
|
|
||
|
8mm x 1/4" BSPT
CDPL0802N
|
|
||
|
8mm x 3/8" BSPT
CDPL0803N
|
|
||
|
8mm x 1/2" BSPT
CDPL0804N
|
|
||
|
8mm x 1/8" BSPP
CDPL08G01
|
|
||
|
8mm x 1/4" BSPP
CDPL08G02
|
|
||
|
8mm x 3/8" BSPP
CDPL08G03
|
|
||
|
8mm x 1/2" BSPP
CDPL08G04
|
|
||
|
10mm x 1/8" BSPT
CDPL1001N
|
|
||
|
10mm x 1/4" BSPT
CDPL1002N
|
|
