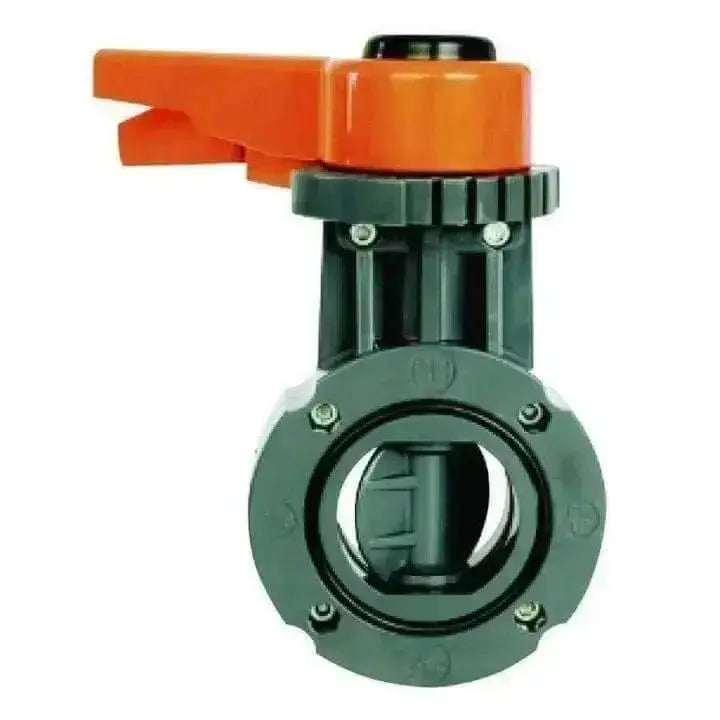

PVC-U Wafer Butterfly Valve

SKU: AK2160001
Size
£155.67 GBP
£214.56 GBP £155.67 GBP

Delivery Time

General Delivery Time: Stock, *please check for specific enquiries
Delivery times are a guide and are subject to stock availability

Description

PVC-U wafer pattern butterfly valve suitable for installing between PN10 and ANSI150 flanges.  The body and disc are made from UPVC and is available with FPM seals (EPDM seal available on request), lever operated.  Available in sizes from 2" to 10", delivery time for the 8" to 10" valves is approx 3 to 4 weeks from order.  Working temperature is 0°C to +60°C, with maximum working pressure 10 bar 2" to 5" and 6 bar 6" to 10"

Gearbox operated valves are available on request.
These are an equivalent to:

Bulk order

Variant Quantity Price Total
2"/63mm/DN50 AK2160001
£155.67 GBP
£214.56 GBP £155.67 GBP
£0.00
£155.67 GBP
£214.56 GBP £155.67 GBP
£0.00
2.1/2"/75mm/DN65 AK2160002
£158.42 GBP
£218.38 GBP £158.42 GBP
£0.00
£158.42 GBP
£218.38 GBP £158.42 GBP
£0.00
3"/90mm/DN80 AK2160003
£190.12 GBP
£262.08 GBP £190.12 GBP
£0.00
£190.12 GBP
£262.08 GBP £190.12 GBP
£0.00
4"/110mm/DN100 AK2160004
£231.18 GBP
£318.67 GBP £231.18 GBP
£0.00
£231.18 GBP
£318.67 GBP £231.18 GBP
£0.00
5"/140mm/DN125 AK2160005
£300.41 GBP
£414.09 GBP £300.41 GBP
£0.00
£300.41 GBP
£414.09 GBP £300.41 GBP
£0.00
6"/160mm/DN150 AK2160006
£408.40 GBP
£562.90 GBP £408.40 GBP
£0.00
£408.40 GBP
£562.90 GBP £408.40 GBP
£0.00
8"/225mm/DN200 AK2160008
£518.70 GBP
£713.07 GBP £518.70 GBP
£0.00
£518.70 GBP
£713.07 GBP £518.70 GBP
£0.00
10"/250mm/DN250 AK2160010
£806.81 GBP
£1,112.01 GBP £806.81 GBP
£0.00
£806.81 GBP
£1,112.01 GBP £806.81 GBP
£0.00
