Schrader Twist Lock Heavy Duty Quick Connect Couplings
Regular price
£124.09 GBP
Delivery times are a guide and are subject to stock availability
Description
This is a Schrader twist lock heavy duty pneumatic quick release coupling. These couplings are designed to prevent accidental disconnection and with it's swivel action prevents the kinking of hoses. This range has a maximum working pressure of 17 bar with a flow capacity of 2800 l/min. This coupling is valved which is closed when disconnected.
Specifications
- Nominal flow diameter is 8.5mm (5/16")
- Flow Capacity is 2500 l/min (100 CFM) measured at 6 bar (87 psi) with a 0.5 bar (7 psi) pressure drop
- Max working pressure 17 bar (250 psi)
- Temperature range -20°C to +80°C (-4°F to +176°F)
These are an equivalent to:
Bulk order
| Variant | Quantity | Price | Total |
|---|---|---|---|

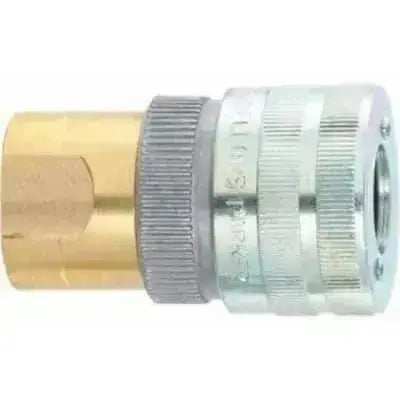

Coupling x BSPP Female / 1/4"
SC1054EL-14
|
|
||
|
Coupling x BSPP Female / 3/8"
SC1095EL-38
|
|
||

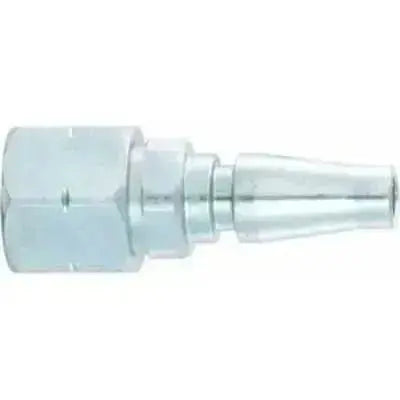

Plug x BSPT Female / 3/8"
SC1096B-11
|
|
||

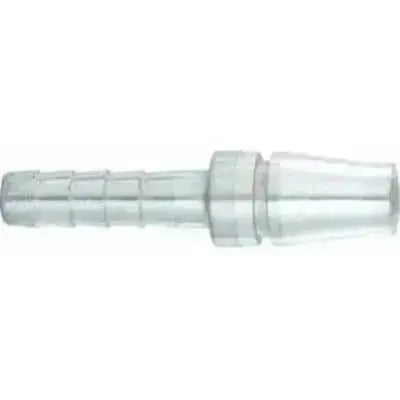

Plug x Hosetail / 10mm (3/8")
SC1097-11
|
|
||
|
Plug x Hosetail / 13mm (1/2")
SC1098-11
|
|
||
|
Plug x BSPT Female / 1/4"
SC1261EL-12
|
|
||
|
Coupling x BSPP Female / 1/2"
SC1461EL-12
|
|
||

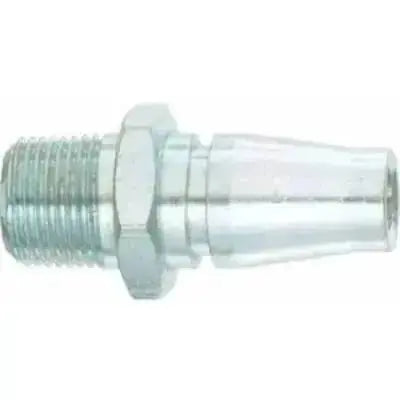

Plug x BSPT Male / 1/4"
SC8624B-11
|
|
||
|
Plug x BSPT Male / 1/2"
SC8807-11
|
|
||
|
Plug x BSPT Male / 3/8"
SC9739-11
|
|
