Schrader Twist Lock Standard Duty Quick Connect Couplings
Regular price
£7.06 GBP
Delivery Time
General Delivery Time: 2 working days
Delivery times are a guide and are subject to stock availability
Description
This is a Schrader twist lock standard duty pneumatic quick release coupling. These couplings are designed to prevent accidental disconnection and with it's swivel action prevents the kinking of hoses. This range has a maximum working pressure of 17 bar with a flow capacity of 500 l/min. This coupling is valved which is closed when disconnected.
Specifications
- Nominal flow diameter is 5mm (3/16")
- Flow Capacity is 500 l/min (0.5 pd) measured at 6 bar (87 psi) with a 0.5 bar (7 psi) pressure drop
- Max working pressure 17 bar (250 psi)
- Temperature range -20°C to +80°C (-4°F to +176°F)
These are an equivalent to:
Bulk order
| Variant | Quantity | Price | Total |
|---|---|---|---|

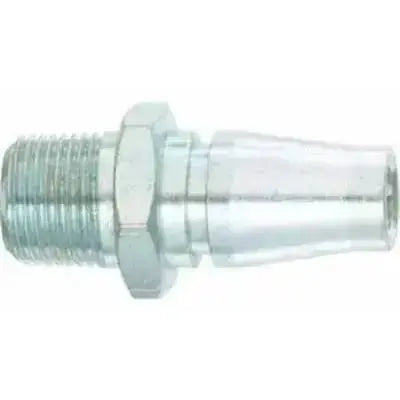

Plug x BSPT Male / 1/4"
SC8050B-11
|
|
||

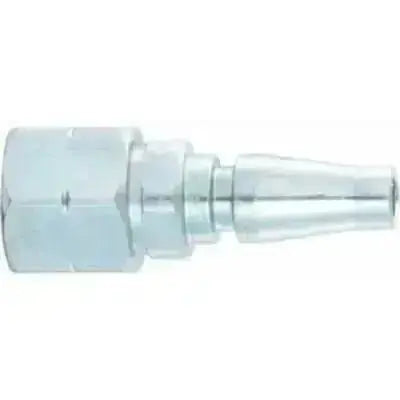

Plug x BSPP Female / 1/4"
SC8278L-11
|
|
||

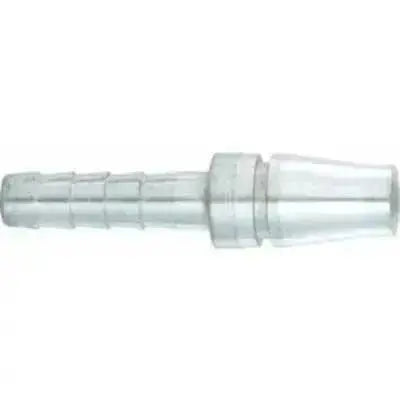

Plug x Hosetail / 6mm (1/4")
SC8787-11
|
|
||
|
Plug x Hosetail / 10mm (3/8")
SC8788-11
|
|
||

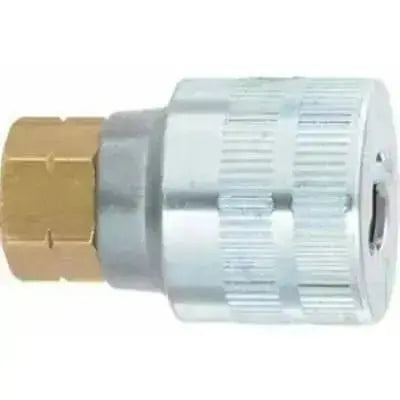

Coupling x BSPP Female / 1/4"
SC8952DL-12
|
|
||
|
Plug x Hosetail / 8mm (5/16")
SC9750-11
|
|
||
Coupling x BSPT Male / 3/8"
SC9792D-12
|
|
||
|

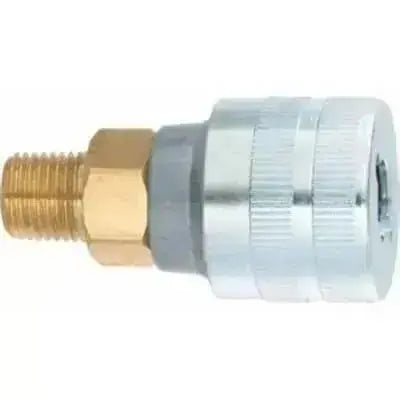

Coupling x BSPT Male / 1/4"
SC9793D-12
|
|
