Single Hydraulic Tube Clamps - Light Duty
Regular price
£2.29 GBP
Delivery Time
General Delivery Time: 2 working days
Delivery times are a guide and are subject to stock availability

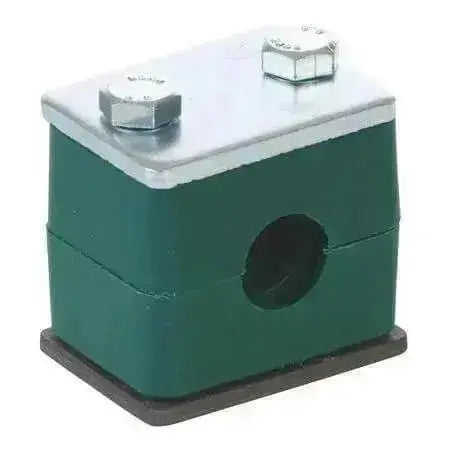

Single Hydraulic Tube Clamps are sometimes referred to as "Stauff Type Clamps".
These tube clamps are complete with jaws, top and bottom plates and bolts.
Available in metric sizes 6mm to 50.8 and some nominal bore imperial sizes (1/4" to 3/4" and 1.1/2")
Temperature range for the clamps is -30°C to + 90°C
Manufactured in line with DIN 3015
The jaws are made form polypropylene
The base plate is in carbon steel with the top plate and bolts are zinc plated carbon steel
These are an equivalent to:
Bulk order
| Variant | Quantity | Price | Total |
|---|---|---|---|
|
6mm
D-A41AZ06
|
|
||
|
8mm
D-A41AZ08
|
|
||
|
10mm
D-A41AZ10
|
|
||
|
12mm
D-A41AZ12
|
|
||
|
14mm
D-A41AZ14
|
|
||
|
15mm
D-A41AZ15
|
|
||
|
16mm
D-A41AZ16
|
|
||
|
18mm
D-A41AZ18
|
|
||
|
20mm
D-A41AZ20
|
|
||
|
22mm
D-A41AZ22
|
|
||
|
25mm
D-A41AZ25
|
|
||
|
30mm
D-A41AZ30
|
|
||
|
35mm
D-A41AZ35
|
|
||
|
38mm
D-A41AZ38
|
|
||
|
40mm
D-A41AZ40
|
|
||
|
42mm
D-A41AZ42
|
|
||
|
44.5mm
D-A41AZ44.5
|
|
||
|
50.8mm
D-A41AZ50.8
|
|
||
|
1/4" NB
D-A41AZ13.2
|
|
||
|
3/8" NB
D-A41AZ16.7
|
|
||
|
1/2" NB
D-A41AZ21.3
|
|
||
|
3/4" NB
D-A41AZ26.7
|
|
||
|
1.1/2" NB
D-A41AZ48.3
|
|
||
|
28mm
D-A41AZ28
|
|
