Wafer Pattern Butterfly Valve WRAS Approved

Description

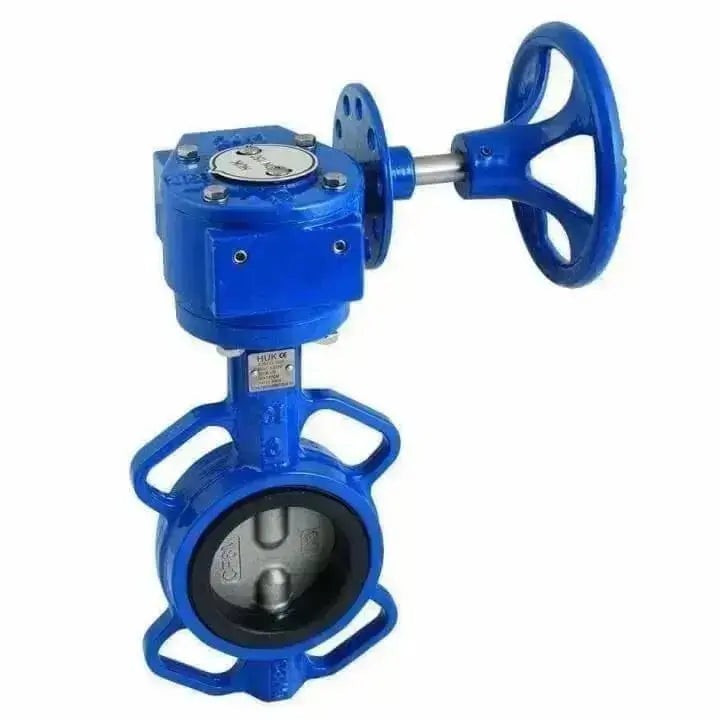

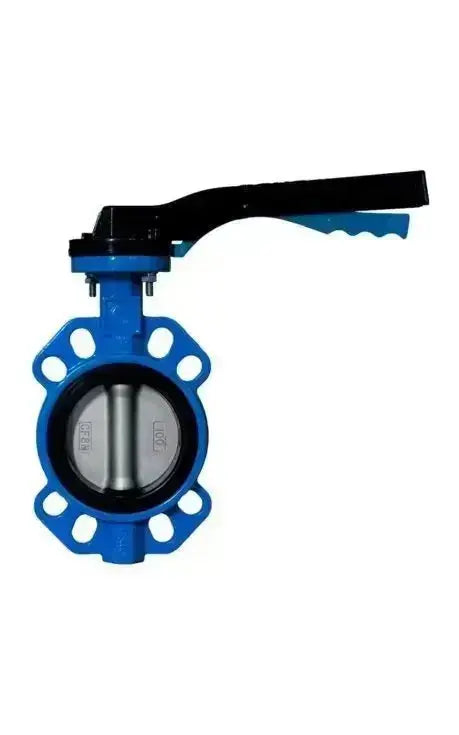

Wafer pattern butterfly valve, cast iron body, 316 stainless steel disc, EPDM liner with locking lever (12" are gearbox operated). WRAS approved. These valves are suitable for use with potable water and glycol mix (please check with sales for the suitability of your application). Multi drilled locating lugs to suit PN6/10/16, BS10 Table D and E and ANSI150 flanges. Working temperature -10°C to +120°C. Maximum Working Pressure (subject to temperature) 16 bar
