WRAS Approved Brass Ball Valve

  • £2.72
Shipping calculated at checkout.


Description

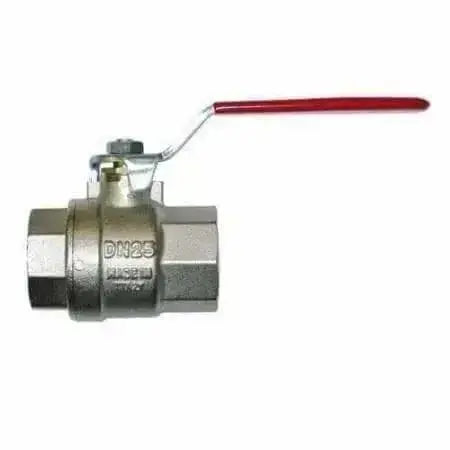

Manufactured in Italy by IVR S.p.a, this WRAS approved ball valve has a body which is made from nickel plated brass, a ball that is manufactured from chrome plated brass, PTFE seats with NBR o-ring seals, flat steel lever with red PVC sleeve. BSP female threads according to UNI ISO 7/1 Rp.

Suitable for use with drinking water, hydraulic and compressed air systems. Maximum working pressure is 50 bar 1/4" to 3/4", 40 bar 1" to 1.1/4", 32 bar 1.1/2" to 2", with a working temperature of -20°C to 160°C.

What Approvals does this valve have?

This vales is WRAS Certified for use with drinking water.

WRAS Approval

What are the dimensions of the valves?

Please fin below link for the datasheet that details all dimensions and construction of the valves.

WRAS approved ball valve
