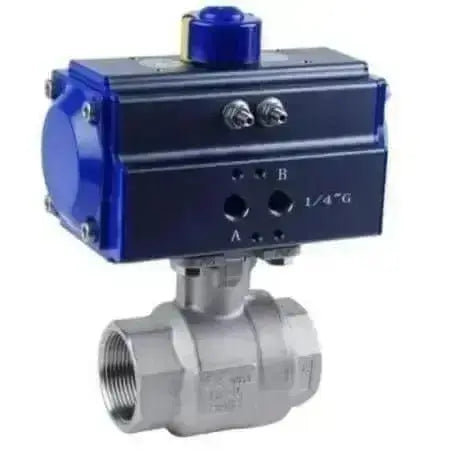

Actuated 2 Piece Stainless Steel Ball Valve with NK Actuators

SKU: AK715XSNK04
Size
Operation
Regular price £252.34 GBP

Delivery Time

General Delivery Time: 3 working weeks
Delivery times are a guide and are subject to stock availability

Description

These 2 piece full bore stainless steel ball valve are fitted with and NK pneumatic actuator, double or single acting. The valve is manufactured from CF8M stainless steel with PTFE seats, 63 bar rated with a working temperature of -10°C to +180°C. The actuator are manufactured from aluminium and are suitable for operation at temperatures between -20°C and 80°C. The actuators are ATEX II 2 G/D c compliant for zones 1,2, 21 & 22. Solenoid pilot valve connection to NAMUR VDI/VDE 3845, the connection port is 1/4" BSP. The actuator style is rack and pinion. Maximize efficiency and durability with the Actuated 2 Piece Stainless Steel Ball Valve. The valve is made of CF8M stainless steel with PTFE seats, rated at 63 bar and has a wide working temperature range of -10°C to +180°C. The NK pneumatic actuator is manufactured from aluminum and is suitable for operation in temperatures between -20°C and 80°C, making it a reliable choice for various industrial settings. In addition, the actuator is ATEX II 2 G/D c compliant for zones 1, 2, 21 & 22, ensuring safety and compliance with regulations. With a solenoid pilot valve connection to NAMUR VDI/VDE 3845, this valve is designed for easy and efficient operation. Invest in this rack and pinion style actuator for streamlined workflow and consistent results.

The assemblies are sized based on 6 bar pilot air pressure and clean cold water.

Delivery approx 2 working weeks.

These are an equivalent to:

Related products

Bulk order

Variant Quantity Price Total
1/2" (DN15) / Double Acting AK715XSNK04
Regular price £252.34 GBP
£0.00
Regular price £252.34 GBP
£0.00
1/2" (DN15) / Single Acting AK715XSNKS04
Regular price £269.52 GBP
£0.00
Regular price £269.52 GBP
£0.00
3/4" (DN20) / Double Acting AK715XSNK05
Regular price £254.79 GBP
£0.00
Regular price £254.79 GBP
£0.00
3/4" (DN20) / Single Acting AK715XSNKS05
Regular price £271.97 GBP
£0.00
Regular price £271.97 GBP
£0.00
1" (DN25) / Double Acting AK715XSNK06
Regular price £276.92 GBP
£0.00
Regular price £276.92 GBP
£0.00
1" (DN25) / Single Acting AK715XSNKS06
Regular price £321.11 GBP
£0.00
Regular price £321.11 GBP
£0.00
1.1/4" (DN32) / Double Acting AK715XSNK07
Regular price £337.14 GBP
£0.00
Regular price £337.14 GBP
£0.00
1.1/4" (DN32) / Single Acting AK715XSNKS07
Regular price £397.26 GBP
Regular price £398.53 GBP Sale price £397.26 GBP
£0.00
Regular price £397.26 GBP
Regular price £398.53 GBP Sale price £397.26 GBP
£0.00
1.1/2" (DN40) / Double Acting AK715XSNK08
Regular price £367.77 GBP
£0.00
Regular price £367.77 GBP
£0.00
1.1/2" (DN40) / Single Acting AK715XSNKS08
Regular price £443.92 GBP
Regular price £455.05 GBP Sale price £443.92 GBP
£0.00
Regular price £443.92 GBP
Regular price £455.05 GBP Sale price £443.92 GBP
£0.00
2" (DN50) / Double Acting AK715XSNK09
Regular price £446.38 GBP
Regular price £458.02 GBP Sale price £446.38 GBP
£0.00
Regular price £446.38 GBP
Regular price £458.02 GBP Sale price £446.38 GBP
£0.00
2" (DN50) / Single Acting AK715XSNKS09
Regular price £520.09 GBP
Regular price £547.25 GBP Sale price £520.09 GBP
£0.00
Regular price £520.09 GBP
Regular price £547.25 GBP Sale price £520.09 GBP
£0.00
2.1/2" (DN65) / Double Acting AK715XSNK10
Regular price £719.04 GBP
Regular price £788.15 GBP Sale price £719.04 GBP
£0.00
Regular price £719.04 GBP
Regular price £788.15 GBP Sale price £719.04 GBP
£0.00
2.1/2" (DN65) / Single Acting AK715XSNKS10
Regular price £792.69 GBP
Regular price £877.36 GBP Sale price £792.69 GBP
£0.00
Regular price £792.69 GBP
Regular price £877.36 GBP Sale price £792.69 GBP
£0.00
3" (DN80) / Double Acting AK715XSNK11
Regular price £939.95 GBP
Regular price £1,055.81 GBP Sale price £939.95 GBP
£0.00
Regular price £939.95 GBP
Regular price £1,055.81 GBP Sale price £939.95 GBP
£0.00
3" (DN80) / Single Acting AK715XSNKS11
Regular price £1,075.17 GBP
Regular price £1,219.41 GBP Sale price £1,075.17 GBP
£0.00
Regular price £1,075.17 GBP
Regular price £1,219.41 GBP Sale price £1,075.17 GBP
£0.00
