Camlock Part E Hosetail Plug
Couldn't load pickup availability

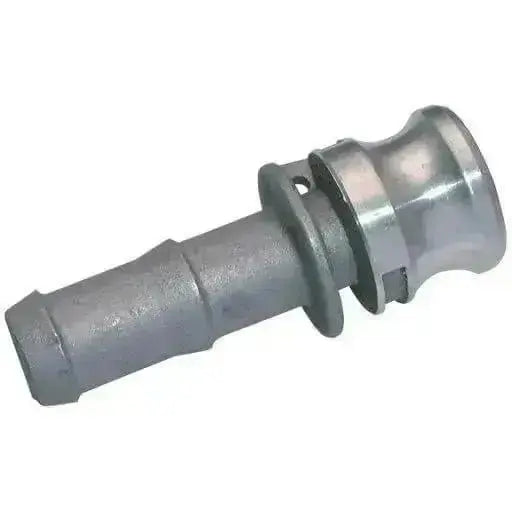

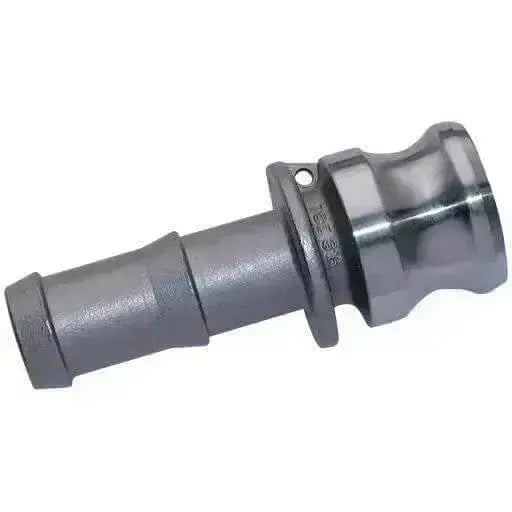

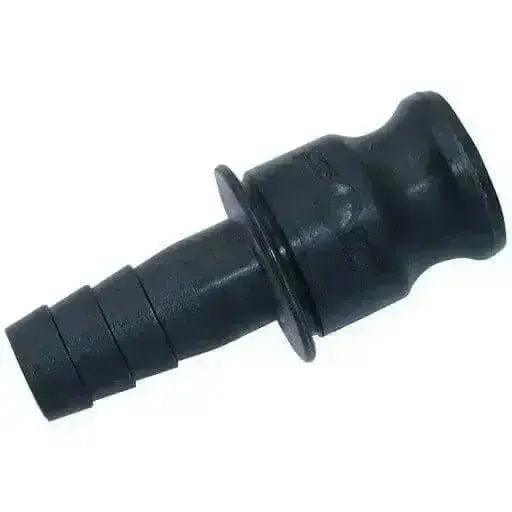

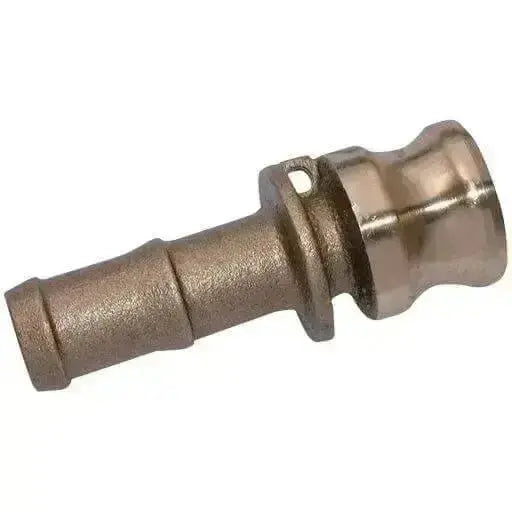

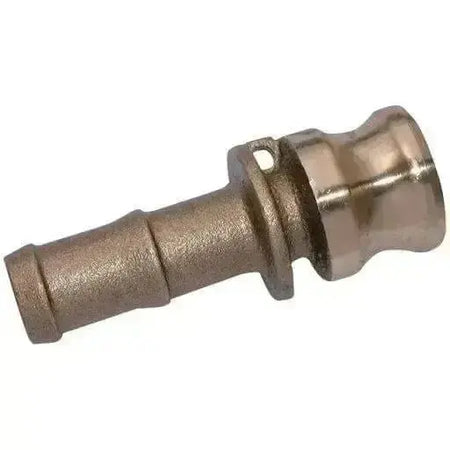

These Camlock (Cam and Groove) fittings are plugs (male) to hosetail. These are available in Aluminium, Brass, Polypropylene and Stainless Steel. When used with the female half (coupling) provides a quick any easy disconnect coupling for hoses and pipes from many industries. The levers on the couplings are manufactured from 304 stainless steel for all brass, polypropylene and stainless steel fittings, and brass for the aluminium coulpings
Working temperature -40°C to +100°C. Maximum working pressures, based on 20°C, are as follows: Aluminium, Brass and Stainless Steel 1/2" 10.3 bar, 3/4" to 2" 17.2 bar, 2.1/2" 10.3 bar, 3" 8.6 bar, 4" 6.9 bar. Polypropylene 7 bar all sizes.
