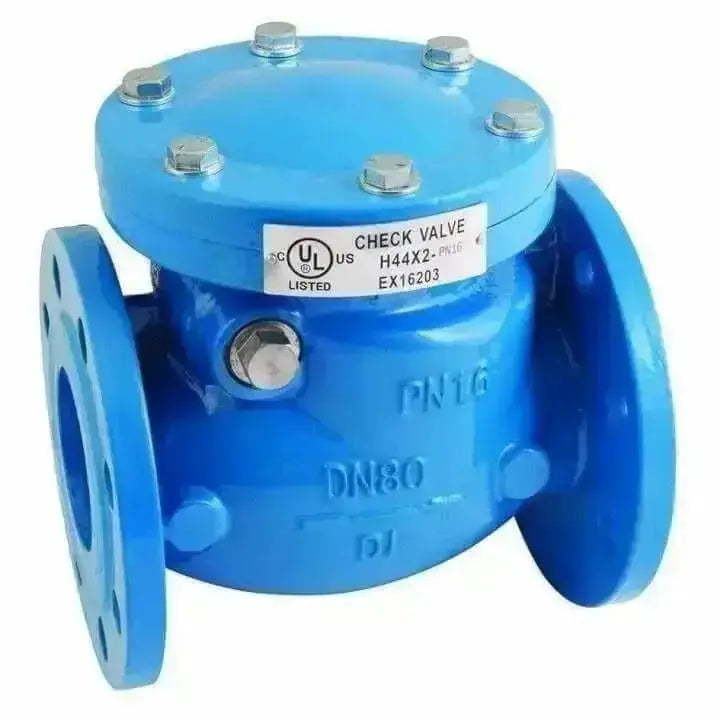

Cast Iron Swing Check Valve WRAS Approved Soft Seat

Description

This swing check valve is manufactured form ductile iron with an EPDM seat.  This valve conform to BS EN 12334, the face to face dimensions are to BS5153, EN558-1, flanged ends to PN16.  This valve is also WRAS approved and is UL listed.

This valve has a maximum cold working pressure of 16 bar and a working temperature of 0°C to +80°C.

Installation

It is recommended that this valve is mount in horizontal pipework, it can however be mounted in a vertical line with the flow in the upwards direction.

Face to Face

Face to face dimensions are as follows:

• 2" (DN50) 203mm
• 2.1/2" (DN65) 216mm
• 3" (DN80) 241mm
• 4" (DN100) 292mm
• 6" (DN150) 356mm
• 8" (DN200) 495mm
• 10" (DN250) 622mm
• 12" (DN300) 698mm
