Knife Gate Valve Pneumatic Double Acting

SKU: AKA1N2H209
Size
Flange
£292.67 GBP

Delivery Time

General Delivery Time: 2 working days
Delivery times are a guide and are subject to stock availability

Description

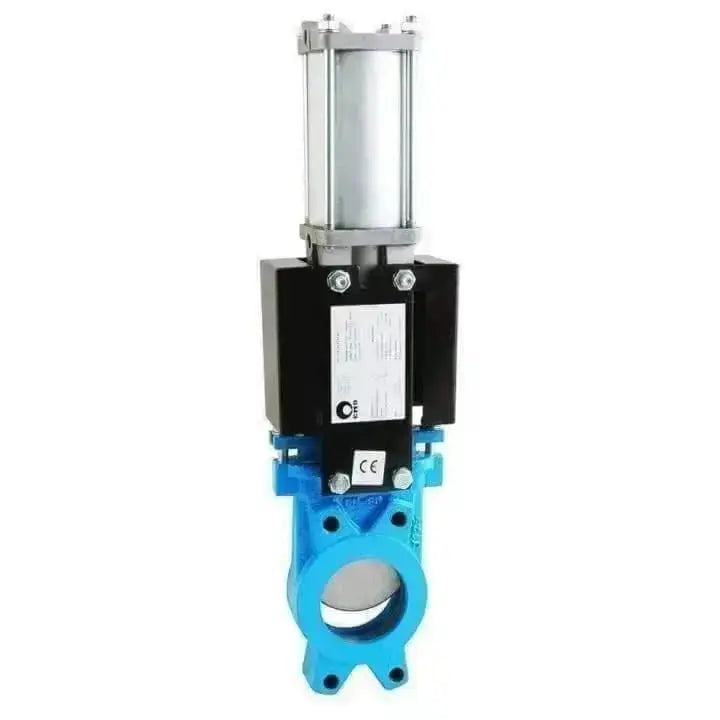

This knife gate valve has a cast iron body, 304 stainless steel blade with EPDM seal and is fitted a pneumatic double acting cylinder to control the opening and closing of the valve. Available to flanges PN10/16 others on request.

This valve is unidirectional and has an arrow indicating the direction of flow cast into the body, although if using with dry solids in a gravity fed application, then the arrow should be installed against the flow.  This valve provides high flow rates with low pressure drops due  to its design.  Suitable for liquids with a maximum of 5% suspended solids.

Applications

This valve is suitable for the following applications:

Paper Industry
Mining
Silo emptying
Chemical plants
Pumping
Food industry
Sewage treatment

Standards

These valves are manufactured according to the following standards.

Machinery Directive: DIR 2006/42/EC (Machinery)

Pressure Equipment Directive: DIR 97/23/EC (PED) Art.3, P.3

Potential Explosive Atmospheres Directive: DIR 94/9/EC (ATEX) Cat.3 Zone 2 and 22 GD

Working Pressure and Temperatures

Working Temperature: 0°C to +90°C

Maximum Working Pressures: up to 6" 10 bar, 8" 8 bar, 10" and 12" 6 bar
These are an equivalent to:

Bulk order

Variant Quantity Price Total
2" (DN50) / PN10 AKA1N2H209
£292.67 GBP
£0.00
£292.67 GBP
£0.00
2" (DN50) / PN16 AKA1N2H209
£292.67 GBP
£0.00
£292.67 GBP
£0.00
2.1/2" (DN65) / PN10 AKA1N2H210
£305.67 GBP
£0.00
£305.67 GBP
£0.00
2.1/2" (DN65) / PN16 AKA1N2H210
£305.67 GBP
£0.00
£305.67 GBP
£0.00
3" (DN80) / PN10 AKA1N2H211
£318.68 GBP
£0.00
£318.68 GBP
£0.00
3" (DN80) / PN16 AKA1N2H211
£318.68 GBP
£0.00
£318.68 GBP
£0.00
4" (DN100) / PN10 AKA1N2H212
£364.20 GBP
£0.00
£364.20 GBP
£0.00
4" (DN100) / PN16 AKA1N2H212
£364.20 GBP
£0.00
£364.20 GBP
£0.00
5" (DN125) / PN10 AKA1N2H213
£442.25 GBP
£0.00
£442.25 GBP
£0.00
5" (DN125) / PN16 AKA1N2H213
£442.25 GBP
£0.00
£442.25 GBP
£0.00
6" (DN150) / PN10 AKA1N2H214
£481.27 GBP
£0.00
£481.27 GBP
£0.00
6" (DN150) / PN16 AKA1N2H214
£481.27 GBP
£0.00
£481.27 GBP
£0.00
8" (DN200) / PN10 AKA1N2H216
£689.37 GBP
£0.00
£689.37 GBP
£0.00
8" (DN200) / PN16 AKA3N2H216
£1,611.50 GBP
£0.00
£1,611.50 GBP
£0.00
10" (DN250) / PN10 AKA1N2H218
£1,651.84 GBP
£0.00
£1,651.84 GBP
£0.00
10" (DN250) / PN16 AKA3N2H218
£1,828.17 GBP
£0.00
£1,828.17 GBP
£0.00
12" (DN350) / PN10 AKA1N2H220
£1,974.39 GBP
£0.00
£1,974.39 GBP
£0.00
12" (DN350) / PN16 AKA3N2H220
£2,119.80 GBP
£0.00
£2,119.80 GBP
£0.00
