PCL 60 Series Quick Connect Couplings

SKU: CAC4CF02
Type
Size
Regular price £32.24
Delivery times are a guide and are subject to stock availability

Description

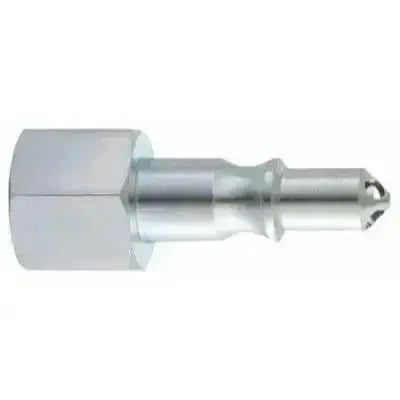

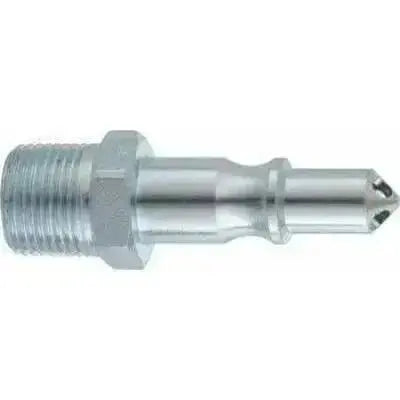

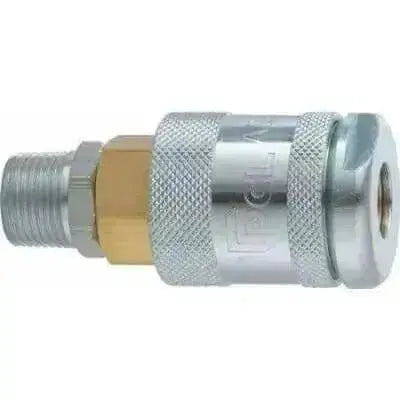

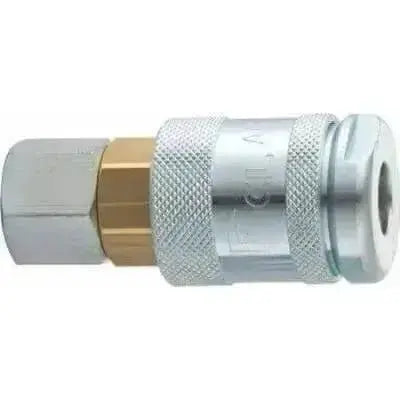

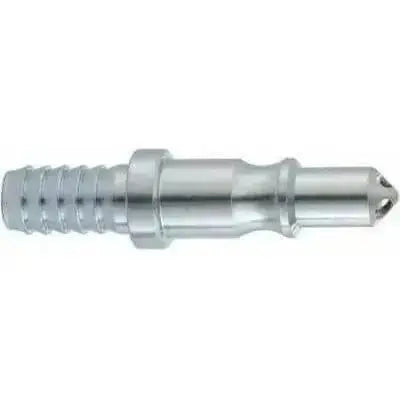

This is a PCL 60 series pneumatic quick release coupling. These couplings are designed with a large aperture for optimum airflow, with a secure locking device and swivel action. This range has a maximum working pressure of 14 bar with a flow capacity of 1700 l/min.  This coupling is valved which is closed when disconnected.

Specifications

  • Nominal flow diameter 7.1mm (9/32")
  • Flow Capacity is 1700 l/min (60 CFM) measured at 6 bar (87 psi) with a 0.5 bar (7 psi) pressure drop
  • Max working pressure 14 bar (200 psi)
  • Temperature range -40°C to +100°C (-40°F to +212°F)
General Delivery Time: 2 working days
These are an equivalent to:
