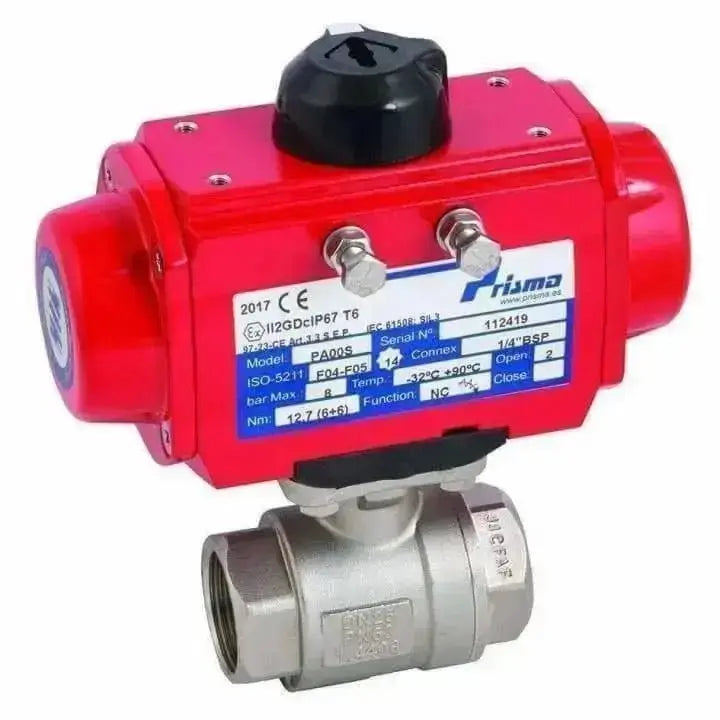

Prisma Actuated 2 Piece Stainless Steel Ball Valve Double Acting Actuator
Regular price
£174.99 GBP
Regular price
£241.47 GBP
Sale price
£174.99 GBP
Delivery Time
General Delivery Time: 2 working days
Delivery times are a guide and are subject to stock availability
Description
2 Piece stainless steel full bore direct mount ball valve, BSP female threads, RTFE carbon graphite filled seats, PTFE o-rings rated 63 bar, ATEX compliant. Fitted with a Prisma Double Acting Actuator, Rilsan Coated Aluminium Body, NBR Seals, ATEX EXII2GDcT certification. 1/4" BSP threaded air connectionc, with NAMUR interface for solenoid valves, VDI/VDE 3845 norms for the mounting of accessories. Working Temperature -20°C to 80°C. Assembly prices are based on 15 bar/20°C Clean Water with 6 bar pilot air pressure.
These are an equivalent to:
Bulk order
| Variant | Quantity | Price | Total |
|---|---|---|---|
|
1/4" (DN8)
AKPDA2006SD02
|
|
||
|
3/8" (DN10)
AKPDA2006SD03
|
|
||
|
1/2" (DN15)
AKPDA2006SD04
|
|
||
|
3/4" (DN20)
AKPDA2006SD05
|
|
||
|
1" (DN25)
AKPDA2006SD06
|
|
||
|
1.1/4" (DN32)
AKPDA2006SD07
|
|
||
|
1.1/2" (DN40)
AKPDA2006SD08
|
|
||
|
2" (DN50)
AKPDA2006SD09
|
|
0
Total items
£0.00 GBP
Product subtotal
