Home » Actuated Stainless Steel Full Bore Ball Valve fitted with a Prisma Double Acting Actuator
Actuated Stainless Steel Full Bore Ball Valve fitted with a Prisma Double Acting Actuator - AK Valves Ltd
Actuated Stainless Steel Full Bore Ball Valve fitted with a Prisma Double Acting Actuator - AK Valves Ltd
Prisma

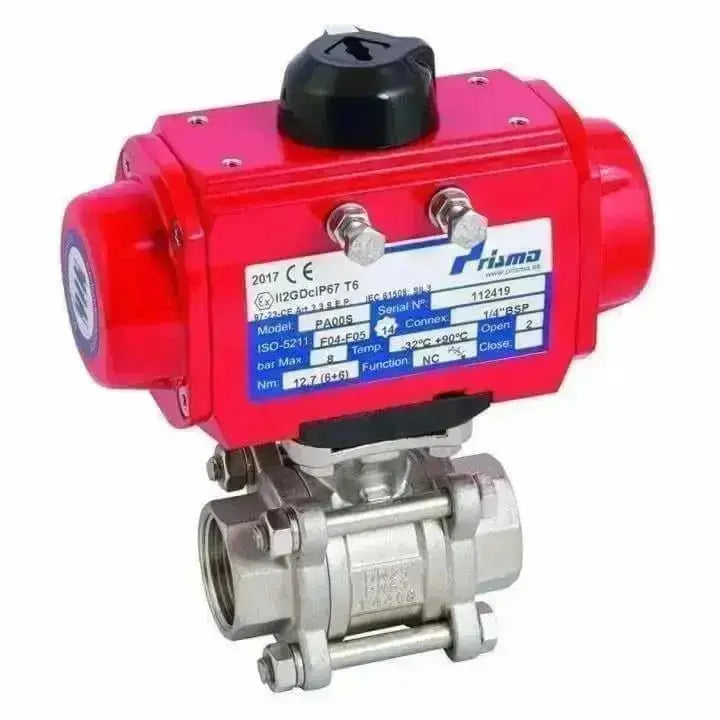

Actuated Stainless Steel Full Bore Ball Valve fitted with a Prisma Double Acting Actuator

SKU: AKPDA2013ND02
Size
£175.67 GBP
£242.41 GBP £175.67 GBP

Delivery Time

General Delivery Time: 2 working days
Delivery times are a guide and are subject to stock availability

Description

3 Piece stainless steel full bore direct mount ball valve, BSP female threads, RTFE carbon graphite filled seats, PTFE o-rings rated 63 bar, ATEX compliant. Fitted with a Prisma Double Acting Actuator, Rilsan Coated Aluminium Body, NBR Seals, ATEX EXII2GDcT certification. 1/4" BSP threaded air connectionc, with NAMUR interface for solenoid valves, VDI/VDE 3845 norms for the mounting of accessories. Working Temperature -30°C to 80°C. Assembly prices are based on 15 bar/20°C Clean Water with 6 bar pilot air pressure.
These are an equivalent to:

Bulk order

Variant Quantity Price Total
1/4" (DN8) AKPDA2013ND02
£175.67 GBP
£242.41 GBP £175.67 GBP
£0.00
£175.67 GBP
£242.41 GBP £175.67 GBP
£0.00
3/8" (DN10) AKPDA2013ND03
£175.67 GBP
£242.41 GBP £175.67 GBP
£0.00
£175.67 GBP
£242.41 GBP £175.67 GBP
£0.00
1/2" (DN15) AKPDA2013ND04
£177.31 GBP
£244.70 GBP £177.31 GBP
£0.00
£177.31 GBP
£244.70 GBP £177.31 GBP
£0.00
3/4" (DN20) AKPDA2013ND05
£193.49 GBP
£266.99 GBP £193.49 GBP
£0.00
£193.49 GBP
£266.99 GBP £193.49 GBP
£0.00
1" (DN25) AKPDA2013ND06
£202.11 GBP
£278.89 GBP £202.11 GBP
£0.00
£202.11 GBP
£278.89 GBP £202.11 GBP
£0.00
1.1/4" (DN32) AKPDA2013ND07
£270.24 GBP
£372.90 GBP £270.24 GBP
£0.00
£270.24 GBP
£372.90 GBP £270.24 GBP
£0.00
1.1/2" (DN40) AKPDA2013ND08
£345.88 GBP
£477.29 GBP £345.88 GBP
£0.00
£345.88 GBP
£477.29 GBP £345.88 GBP
£0.00
2" (DN50) AKPDA2013ND09
£420.85 GBP
£580.72 GBP £420.85 GBP
£0.00
£420.85 GBP
£580.72 GBP £420.85 GBP
£0.00
2.1/2" (DN65) AKPDA2013ND10
£708.71 GBP
£977.96 GBP £708.71 GBP
£0.00
£708.71 GBP
£977.96 GBP £708.71 GBP
£0.00
3" (DN80) AKPDA2013ND11
£849.00 GBP
£1,171.52 GBP £849.00 GBP
£0.00
£849.00 GBP
£1,171.52 GBP £849.00 GBP
£0.00
4" (DN100) AKPDA2013ND12
£1,244.03 GBP
£1,716.67 GBP £1,244.03 GBP
£0.00
£1,244.03 GBP
£1,716.67 GBP £1,244.03 GBP
£0.00
