Pushin Bulkhead Connector - AK Valves Ltd
Pushin Bulkhead Connector - AK Valves Ltd
CDC Pneumatics

Pushin Bulkhead Connector

SKU: CDPMM04N
Size
£2.27 GBP
£3.71 GBP £2.27 GBP

Delivery Time

General Delivery Time: 2 working days
Delivery times are a guide and are subject to stock availability

Description

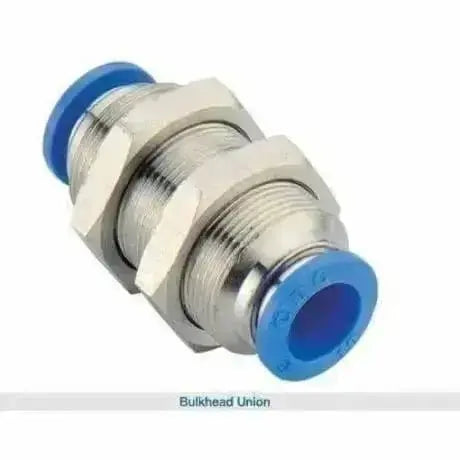

These bulkhead connectors are pushin x pushin with an external thread and locknut for ease of installation when piping through a panel. The body is made from brass, all o-rings are NBR, brass collar, POM release sleeve, stainless steel lock claw and aluminium locknut. The female thread is BSPP as standard. These are design for use with compressed air and are not suitable for any other gases or liquids. Designed for use with nylon tube or polyurethane tubing. Working Pressure 150 psi (10.2bar), also suitable for vacuum -29.5 in Hg (-750 mm Hg/Torr), working temperature is 0°C to +60°C
These are an equivalent to:

Bulk order

Variant Quantity Price Total
4mm CDPMM04N
£2.27 GBP
£3.71 GBP £2.27 GBP
£0.00
£2.27 GBP
£3.71 GBP £2.27 GBP
£0.00
6mm CDPMM06N
£2.87 GBP
£4.67 GBP £2.87 GBP
£0.00
£2.87 GBP
£4.67 GBP £2.87 GBP
£0.00
8mm CDPMM08N
£3.46 GBP
£5.62 GBP £3.46 GBP
£0.00
£3.46 GBP
£5.62 GBP £3.46 GBP
£0.00
10mm CDPMM10N
£4.94 GBP
£8.02 GBP £4.94 GBP
£0.00
£4.94 GBP
£8.02 GBP £4.94 GBP
£0.00
12mm CDPMM12N
£6.72 GBP
£10.94 GBP £6.72 GBP
£0.00
£6.72 GBP
£10.94 GBP £6.72 GBP
£0.00
16mm CDPMM16N
£11.22 GBP
£18.28 GBP £11.22 GBP
£0.00
£11.22 GBP
£18.28 GBP £11.22 GBP
£0.00
