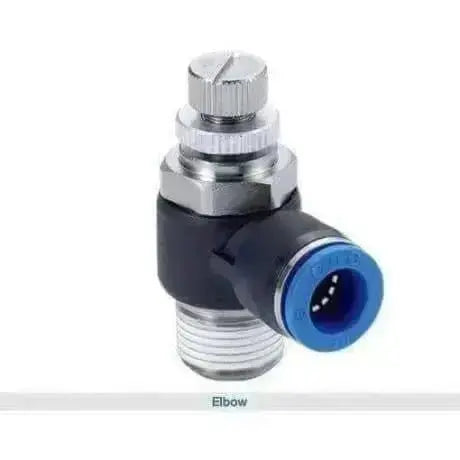

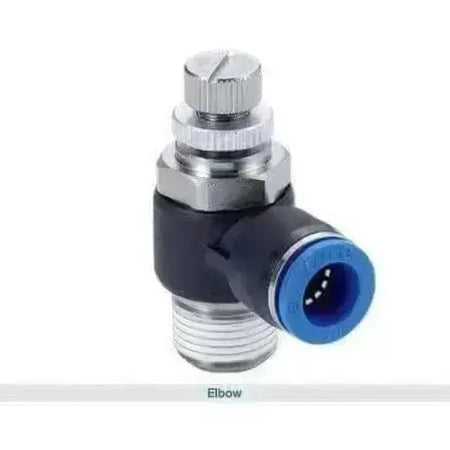

Pushin Speed Controller Swivel 90° BSPT Male
Regular price
£10.90 GBP
Delivery times are a guide and are subject to stock availability
Description
These speed controllers allow accurate regulation of an optimal air flow for precise motion control, the main body can rotate upto 360° after assembly to enable tidy installation, the valve can be tightened 10-12 times from fully open to regulate the airflow. Threaded end are made form brass, all o-rings are NBR, brass collar, POM release sleeve, stainless steel lock claw, brass needle and aluminium locknut. These are design for use with compressed air and are not suitable for any other gases or liquids. Designed for use with nylon tube or polyurethane tubing. Working Pressure 150 psi (10.2bar), also suitable for vacuum -29.5 in Hg (-750 mm Hg/Torr), working temperature is 0°C to +60°C
Applications
These speed controllers control the air flow out of the valve actuator with free flow in the opposite direction
These are an equivalent to:
Bulk order
| Variant | Quantity | Price | Total |
|---|---|---|---|
|
4mm x 1/8" BSPT
CDNSC0401N
|
|
||
|
4mm x 1/4" BSPT
CDNSC0402N
|
|
||
|
4mm x M5
CDNSC04M5N
|
|
||
|
6mm x 1/8" BSPT
CDNSC0601N
|
|
||
|
6mm x 1/4" BSPT
CDNSC0602N
|
|
||
|
6mm x 3/8" BSPT
CDNSC0603N
|
|
||
|
6mm x M5
CDNSC06M5N
|
|
||
|
8mm x 1/8" BSPT
CDNSC0801N
|
|
||
|
8mm x 1/4" BSPT
CDNSC0802N
|
|
||
|
8mm x 3/8" BSPT
CDNSC0803N
|
|
||
|
8mm x 1/2" BSPT
CDNSC0804N
|
|
||
|
10mm x 1/4" BSPT
CDNSC1002N
|
|
||
|
10mm x 3/8" BSPT
CDNSC1003N
|
|
||
|
10mm x 1/2" BSPT
CDNSC1004N
|
|
||
|
12mm x 1/4" BSPT
CDNSC1202N
|
|
||
|
12mm x 3/8" BSPT
CDNSC1203N
|
|
||
|
12mm x 1/2" BSPT
CDNSC1204N
|
|
