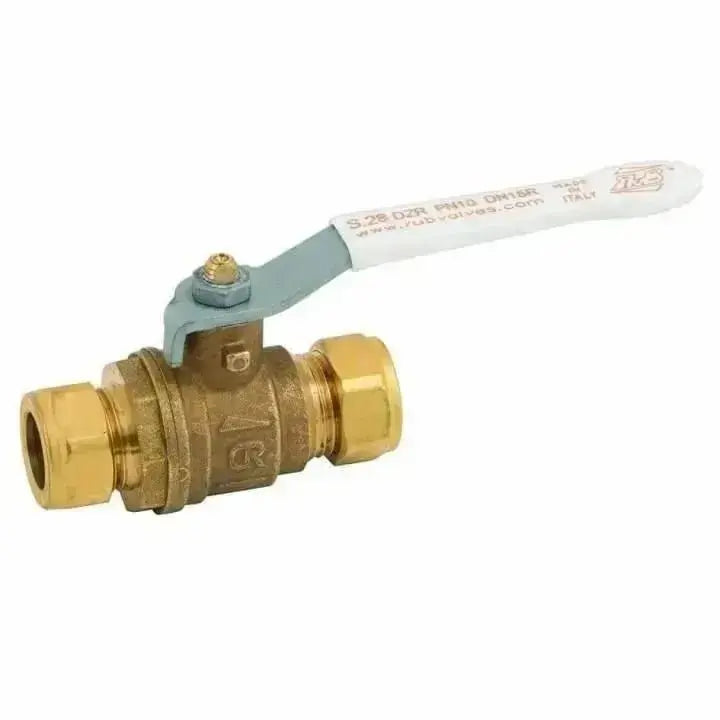

RuB s.28 DZR Brass Compression End Ball Valve WRAS Approved

Description

These RuB DZR brass Compression ended ball valves are WRAS approved

Working pressure & temperature

• 16 bar (230 PSI) non-shock cold working pressure

• -20°C to +120°C (-4°F to +250°F)

• WARNING: freezing of the fluid in the installation may severely damage the valve

Quality

• 24h 100% seal test guaranteed •

Dual sealing system allows valve to be operated in either direction making installation easier

• No metal-to-metal moving parts

• No maintenance ever required

• Handle clearly shows ball position

• Silicone-free lubricant on all seals

• Handle stops on body to avoid stress at stem

• Chrome plated DZR brass ball for longer life Body

• Hot forged sand blasted DZR unplated body and cap sealed with Loctite® or equivalent thread sealant

• Dezincification resistant ADZ-T and ADZ-P brass approved to SBN- PFS 1983:2 and NR-BFS 1988:18 specifications Stem

• Maintenance-free, double FPM O-rings at the stem for maximum safety • Blowout-proof unplated DZR brass stem Sealing

• Pure PTFE self-lubricating seats with flexible-lip design Connections

• Compression ends to EN 1254-2 and NKB no.12 Flow

• Full port to DIN 3357 for maximum flow
