Pushin Male 45° Elbow Connector
Regular price
£1.54 GBP
Regular price
£2.64 GBP
Sale price
£1.54 GBP
Delivery Time
General Delivery Time: 2 working days
Delivery times are a guide and are subject to stock availability
Description

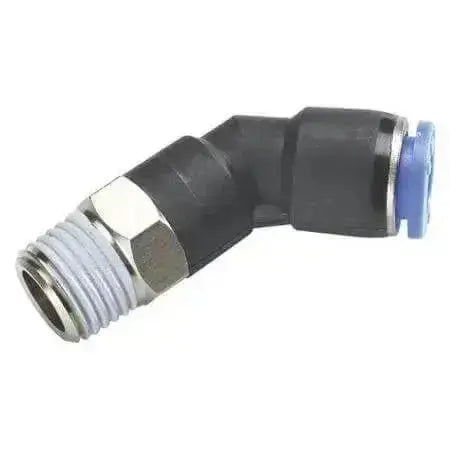

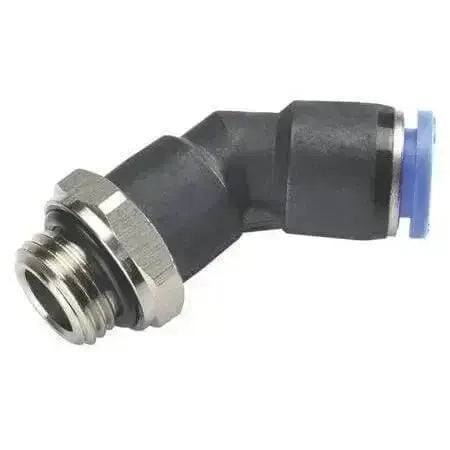

These male elbow connectors, sometimes called male stud elbow, have one male thread x pushin at 45°. The body is made from brass, all o-rings are NBR, brass collar, POM release sleeve, stainless steel lock claw. The BSPT male fittings comes coated with Teflon and the BSPP have an O-ring. These are design for use with compressed air and are not suitable for any other gases or liquids. Designed for use with nylon tube or polyurethane tubing. Working Pressure 150 psi (10.2bar), also suitable for vacuum -29.5 in Hg (-750 mm Hg/Torr), working temperature is 0°C to +60°C
These are an equivalent to:
Bulk order
| Variant | Quantity | Price | Total |
|---|---|---|---|
4mm x 1/8" BSPT
CDPL450401N
|
|
||
|
4mm x 1/4" BSPT
CDPL450402N
|
|
||
|
4mm x 3/8" BSPT
CDPL450403N
|
|
||
4mm x 1/8" BSPP
CDPL4504G01
|
|
||
|
4mm x 1/4" BSPP
CDPL4504G02
|
|
||
|
4mm x 3/8" BSPP
CDPL4504G03
|
|
||
|
4mm x M5
CDPL4504M5N
|
|
||
|
4mm x M6
CDPL4504M6N
|
|
||
|
6mm x 1/8" BSPT
CDPL450601N
|
|
||
|
6mm x 1/4" BSPT
CDPL450602N
|
|
||
|
6mm x 3/8" BSPT
CDPL450603N
|
|
||
|
6mm x 1/2" BSPT
CDPL450604N
|
|
||
|
6mm x 1/8" BSPP
CDPL4506G01
|
|
||
|
6mm x 1/4" BSPP
CDPL4506G02
|
|
||
|
6mm x 3/8" BSPP
CDPL4506G03
|
|
||
|
6mm x 1/2" BSPP
CDPL4506G04
|
|
||
|
6mm x M5
CDPL4506M5N
|
|
||
|
6mm x M6
CDPL4506M6N
|
|
||
|
8mm x 1/8" BSPT
CDPL450801N
|
|
||
|
8mm x 1/4" BSPT
CDPL450802N
|
|
||
|
8mm x 3/8" BSPT
CDPL450803N
|
|
||
|
8mm x 1/2" BSPT
CDPL450804N
|
|
||
|
8mm x 1/8" BSPP
CDPL4508G01
|
|
||
|
8mm x 1/4" BSPP
CDPL4508G02
|
|
