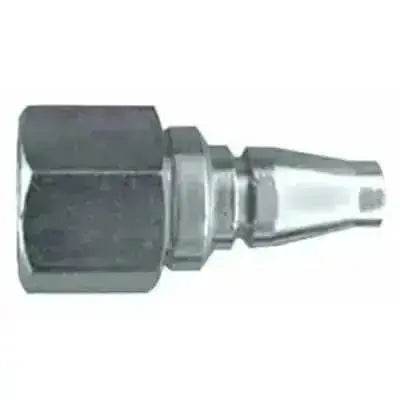

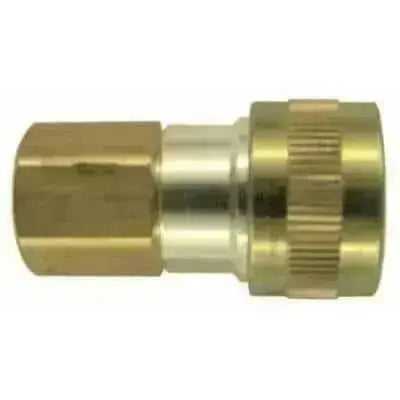

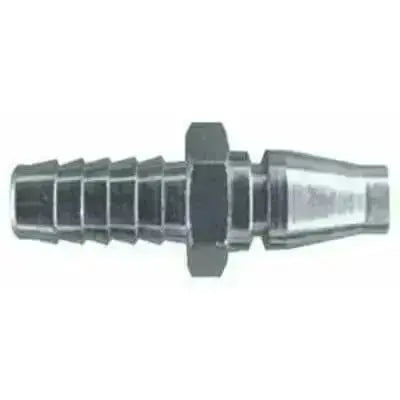

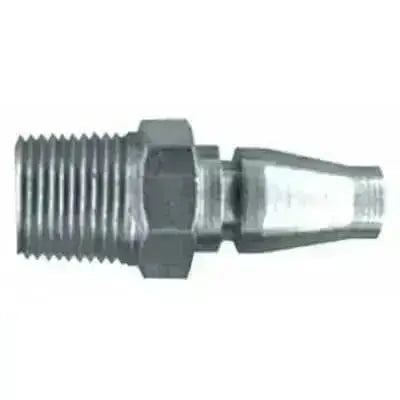

499 Series Quick Connect Couplings

Description

This is a 499 series pneumatic quick release coupling, interchangeable with the Series 68 and Schrader Heavy Duty. These couplings are designed to prevent accidental disconnection and with it's swivel action prevents the kinking of hoses. This range has a maximum working pressure of 20 bar with a flow capacity of 2835 l/min. This coupling is valved which is closed when disconnected. Simplify your setup and prevent damage with precision couplings. With a 499 series pneumatic quick release coupling, you'll get easy interchanges with the Series 68 and Schrader Heavy Duty. Combine the power of swivel action with protection against accidental disconnection. This range boasts a 20 bar maximum working pressure, giving you 2835 l/min of flow capacity. Plus, with its valved design, your coupling will stay closed and secure until you need it again.

Specifications

• Flow Capacity is 2835 l/min (100 CFM) measured at 6 bar (87 psi) with a 0.5 bar (7 psi) pressure drop
• Max working pressure 20 bar (300 psi)
• Temperature range -12°C to +74°C (-10°F to +165°F)
