399 Series Quick Connect Couplings
Regular price
$93.00 USD
Delivery Time
General Delivery Time: 2 working days
Delivery times are a guide and are subject to stock availability
Description
This is a 399 series pneumatic quick release coupling, interchangeable with the Series 17 and Schrader Standard Duty. These couplings are designed to prevent accidental disconnection and with it's swivel action prevents the kinking of hoses. This range has a maximum working pressure of 17 bar with a flow capacity of 850 l/min. This coupling is valved which is closed when disconnected. From series to series, this versatile coupling guarantees a secure connection for pressurized air systems, with a safety valve that automatically shuts off air flow upon disconnection.
Specifications
- Flow Capacity is 850 l/min (30 CFM) measured at 6 bar (87 psi) with a 0.5 bar (7 psi) pressure drop
- Max working pressure 17 bar (250 psi)
- Temperature range -40°C to +107°C (-40°F to +225°F)
These are an equivalent to:
Bulk order
| Variant | Quantity | Price | Total |
|---|---|---|---|

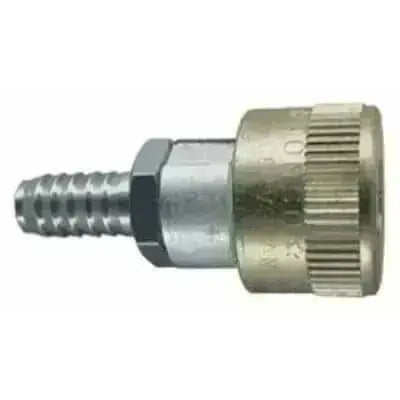

Coupling x Hosetail / 6mm (1/4")
C103991002
|
|
||
|
Coupling x Hosetail / 8mm (5/16")
C103991004
|
|
||

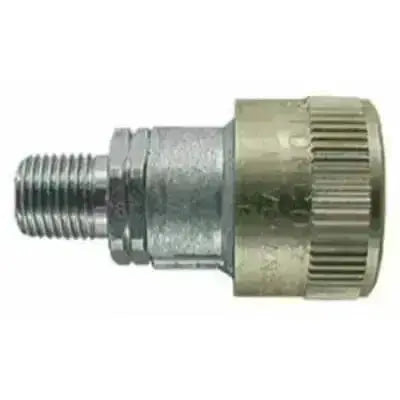

Coupling x BSPT Male / 1/4"
C103991152
|
|
||
|
Coupling x BSPT Male / 3/8"
C103991154
|
|
||

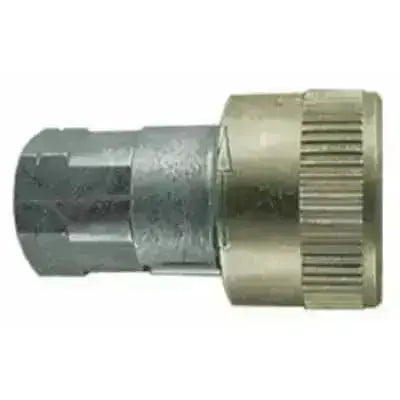

Coupling x BSPP Female / 1/4"
C103991202
|
|
||

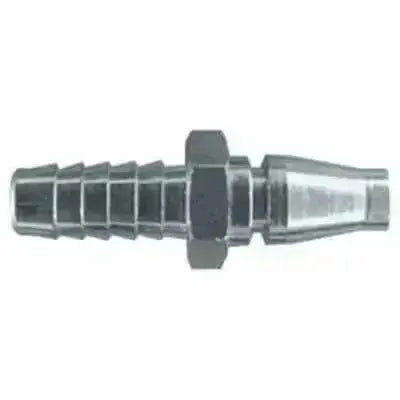

Plug x Hosetail / 6mm (1/4")
C103995002
|
|
||
|
Plug x Hosetail / 8mm (5/16")
C103995003
|
|
||
|
Plug x Hosetail / 10mm (3/8")
C103995004
|
|
||
|
Plug x Hosetail / 13mm (1/2")
C103995005
|
|
||

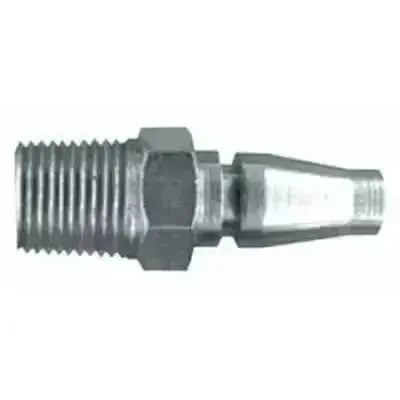

Plug x BSPT Male / 1/8"
C103995151
|
|
||
|
Plug x BSPT Male / 1/4"
C103995152
|
|
||
|
Plug x BSPT Male / 3/8"
C103995154
|
|
||
|
Plug x BSPT Male / 1/2"
C103995155
|
|
||

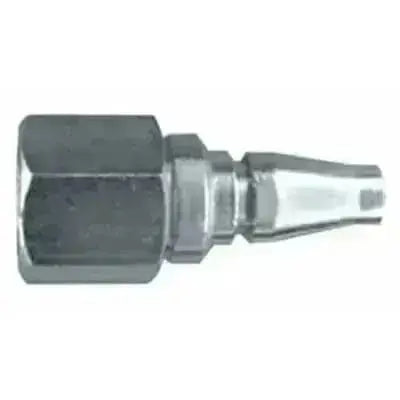

Plug x BSPP Female / 1/8"
C103995201
|
|
||
|
Plug x BSPP Female / 1/4"
C103995202
|
|
||
|
Plug x BSPP Female / 3/8"
C103995204
|
|
||

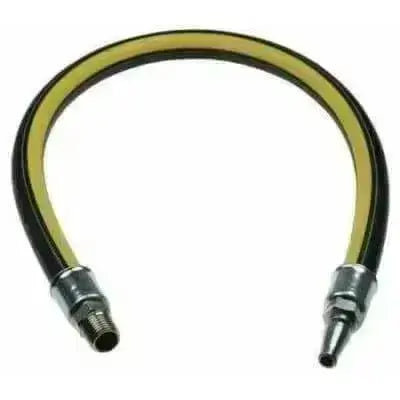

Whip Hose / 1/4"
H-GP08L399
|
|
||
|
Whip Hose / 3/8"
H-GP10L399
|
|
