Description

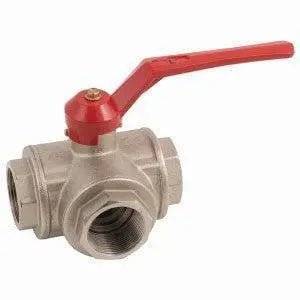

These direct mount 3 way ball valves are manufactured from CF8M stainless steel, with PTFE seats and Viton stem o-ring.

These are L Port valves, normally use to divert the flow from one side to the other (see flowpath image).

These valves are reduced bore and are direct mount according to ISO5211. As standard these valves are anti-static and are supplied with a locking lever.

These valve have a working pressure of 63bar and a working temperature range of -20°C to +220°C.

Mounting Information

Size	ISO5211	Stem	Break Torque	Run Torque
1/4"	F03/F04	9mm	9 Nm	6 Nm
3/8"	F03/F04	9mm	9 Nm	6.6 Nm
1/2"	F03/F04	9mm	12.6 Nm	10.8 Nm
3/4"	F03/F04	9mm	16.2 Nm	12 Nm
1"	F04/F05	11mm	20.2 Nm	12.6 Nm
1.1/4"	F04/F05	11mm	25.8 Nm	19.8 Nm
1.1/2"	F05/F07	14mm	37.8 Nm	28.8 Nm
2"	F05/F07	14mm	63.6 Nm	50.4 Nm

Torque figures don't include safety.

Datasheet

Click here for 3 way l port direct mount stainless steel ball valve bsp datasheet
